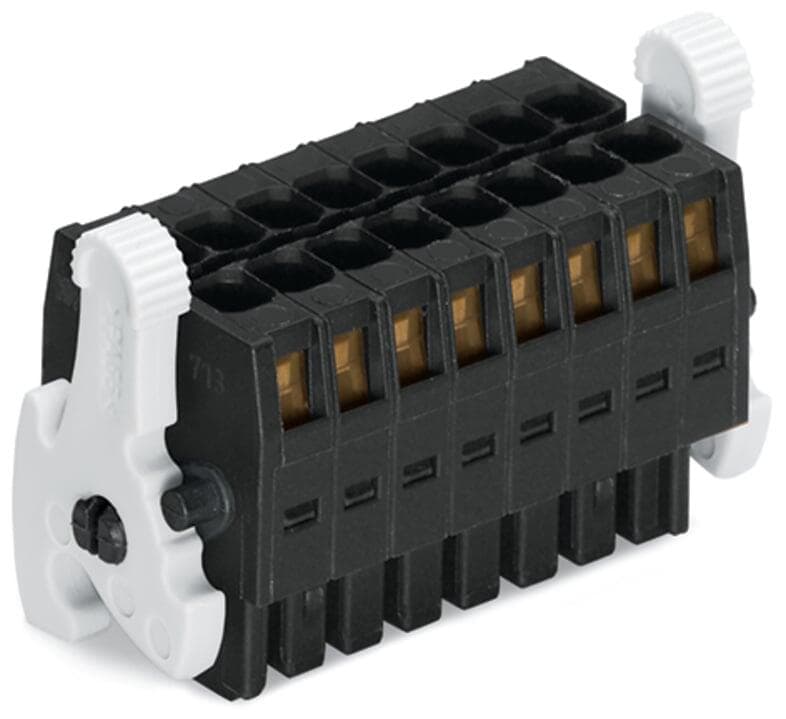

Product Model
713-1110/037-000
Selling Points
- 1High-quality connectors ensure reliable connections in demanding industrial environments.
- 2Durable design withstands harsh conditions and heavy use.
- 3Easy installation with minimal setup required.
- 4Compatible with a wide range of industrial automation systems.
- 5Robust and secure connections minimize downtime and maintenance needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Clamping units | 20 | Total number of potentials | 20 |
Number of connection types | 1 | Number of levels | 2 |
Pin spacing | 3.5?mm?/ 0.138?inches | Width | 43.5?mm?/ 1.713?inches |
Height | 18.8?mm?/ 0.74?inches | Depth | 16?mm?/ 0.63?inches |
Variable coding | Yes | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | Yes | Plugging without loss of pin spacing | No |
Locking of plug-in connection | Locking lever | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | II |
Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Copper alloy |
Contact plating | Tin | Fire load | 0.154MJ |
Weight | 11.2g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4055143625159 | Customs tariff number | 8536694040 |
REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 6c0220c9-0c06-4cc4-98c9-f44d555813dc | SCIP notification number (Belgium) | 6796ee62-77c7-411b-b9a3-33bdcd177882 |
SCIP notification number (Bulgaria) | f4f14aa3-a338-4a3c-b6c1-67d418d7c6a3 | SCIP notification number (Czech Republic) | 7ca0bcdc-7881-45f6-893a-79e8a44723ca |
SCIP notification number (Denmark) | 1c56e6a0-2f7c-466a-a8c6-e1d2a055dc27 | SCIP notification number (Finland) | 11904e5b-41ae-4c13-b289-c8e83dc3bf70 |
SCIP notification number (France) | a76b4197-d9a3-4e3f-85e3-4cd244c1a2e2 | SCIP notification number (Germany) | fd0ce6de-df70-44d9-b73e-d7c126aeb76f |
SCIP notification number (Hungary) | 04f91789-4a62-430f-805d-3352965ef94b | SCIP notification number (Italy) | e5c68907-76e3-48ea-b56c-59de47a8aa28 |
SCIP notification number (Netherlands) | 87e9d752-ae50-4ba9-9b20-a72a894fcee7 | SCIP notification number (Poland) | 91239731-d7bb-4118-9827-95008f5e2fe2 |
SCIP notification number (Romania) | 61f65d40-5692-4657-a53d-cfde13cc5f52 | SCIP notification number (Sweden) | 2faab6ed-85d4-4a13-96e4-afbc0142dce5 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 80V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 250V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 50V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Actuation direction 1 | Operation perpendicular to conductor entry | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1?mm2 | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
Number of poles | 20 | Conductor entry direction to mating direction | 0° |
