Product Model

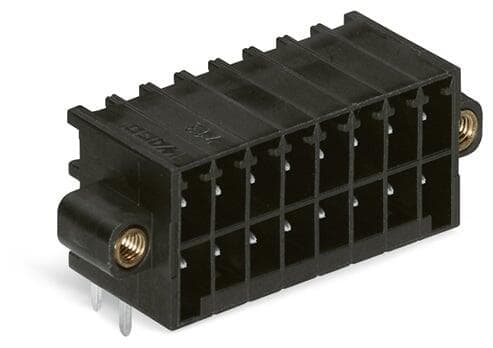

713-1429/107-000
Selling Points
- 1Angled Solder Pins: Designed for easy mounting on PCBs, either horizontally or vertically.
- 2100% Mismating Protection: Ensures secure connections by preventing incorrect mating.
- 318-Pole Configuration: Provides ample connections for various applications.
- 4Threaded Flange: Easy locking mechanism for secure plug-in connections.
- 5Lead-Free Reflow Soldering Compatible: Ensures reliability and durability in electronic assemblies.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 18 | Number of connection types | 1 |
Number of levels | 2 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 41.6?mm?/ 1.638?inches | Height | 17.1?mm?/ 0.673?inches |
Height from the surface | 13.3?mm?/ 0.524?inches | Depth | 13.5?mm?/ 0.531?inches |
Solder pin length | 3.8mm | Solder pin dimensions | 0.8 x 0.8?mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
Locking of plug-in connection | Threaded flange | PCB contact | THT |
Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 1 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.105MJ |
Weight | 5.7g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4045454809164 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 549a65f7-65c2-484f-aac0-a998e9efd695 | SCIP notification number (Belgium) | b07a83e9-5c28-4ed0-a579-7cdf808aec56 |
SCIP notification number (Bulgaria) | 20ef7dc6-11a1-477c-a21f-62a77fcc61f3 | SCIP notification number (Czech Republic) | 682d4849-bdef-4a69-bd81-22789fa2fd08 |
SCIP notification number (Denmark) | 38dfaed1-c49b-41be-9798-5e13be5c0ecd | SCIP notification number (Finland) | e64c2101-cdca-48ad-9c6e-603c277a65f4 |
SCIP notification number (France) | aa97af71-b8b0-458b-ac1c-2f2ab8dc19f0 | SCIP notification number (Germany) | c14ca447-5256-46d8-8df3-ab6f56be2e1b |
SCIP notification number (Hungary) | 4d19294a-8f79-4a91-8e8d-6e034f288842 | SCIP notification number (Italy) | 291ac4fa-179c-46fc-a0d7-c92131e8833c |
SCIP notification number (Netherlands) | 86552afd-1bcd-4fb9-82dc-075442d5a9d5 | SCIP notification number (Poland) | fccfb924-1ad7-44d8-a97b-8c8fec49ef12 |
SCIP notification number (Romania) | 6a705f35-3cf5-473b-b030-78b94316511a | SCIP notification number (Sweden) | a8a55ff6-c4a7-4233-a8b2-a206f55b0066 |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 80V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 250V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 10A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 150V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 50V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 150V | Rated current CSA (Use Group B) | 12A |
Number of poles | 18 |
Specifications may be subject to change without notice
