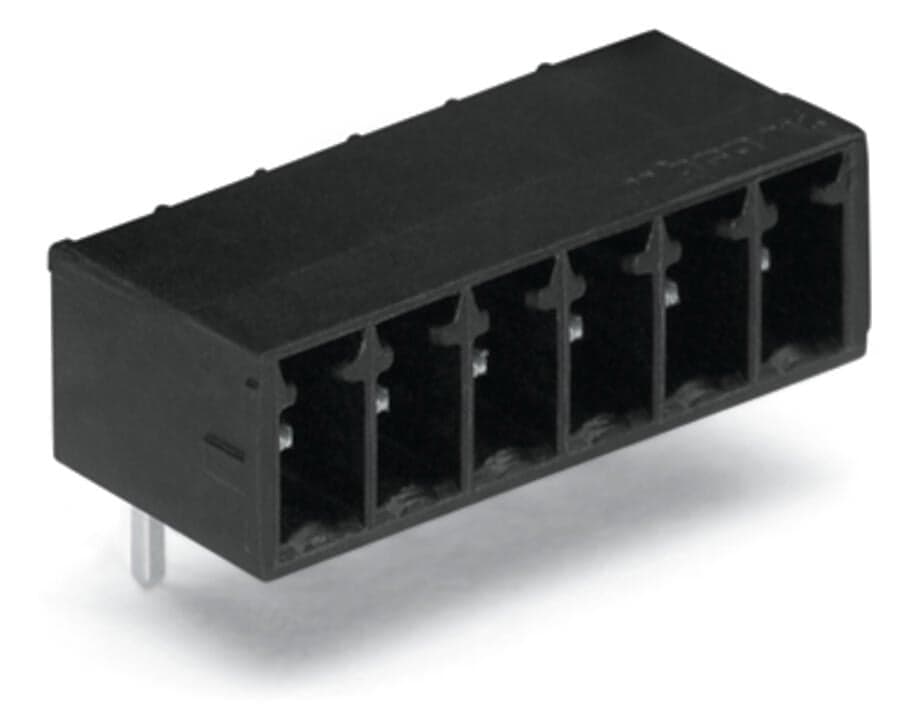

Product Model
714-176
Selling Points
- 1Gastight Clamping Units: Ensures gas-tight contact points for reliable connections.
- 2High-Stress Resistance: Withstands stresses up to 100g on the x-, y-, and z-axis.
- 3Long-Term Consistency: Maintains excellent electrical and mechanical properties over time.
- 4Vibration-Resistant: Designed to perform under various environmental stresses like vibrations.
- 5International Approval: Meets international standards for quality and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 16 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 57.4?mm?/ 2.26?inches | Height | 10.3?mm?/ 0.406?inches |
Height from the surface | 6.9?mm?/ 0.272?inches | Depth | 9.7?mm?/ 0.382?inches |
Solder pin length | 3.4mm | Solder pin dimensions | 0.8 x 0.8?mm |
Drilled hole diameter with tolerance | 1.2(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
PCB contact | THT | Solder pin arrangement | over the entire male connector (in-line) |
Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.07MJ | Weight | 3.5g |
Limit temperature range | -60 … +100?°C | Processing temperature | -35 … +60?°C |
Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454859732 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 160V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 8A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
Rated voltage UL (Use Group B) | 150V | Rated current UL (Use Group B) | 8A |
Number of poles | 16 |
Specifications may be subject to change without notice
