wagoRail Chassis Terminal Blocks
Product Model

726-242

Manufacturer

wago

Category

Rail Chassis Terminal Blocks

Product ID

45623

In Stock
Last updated: 2025/4/28
View Specifications

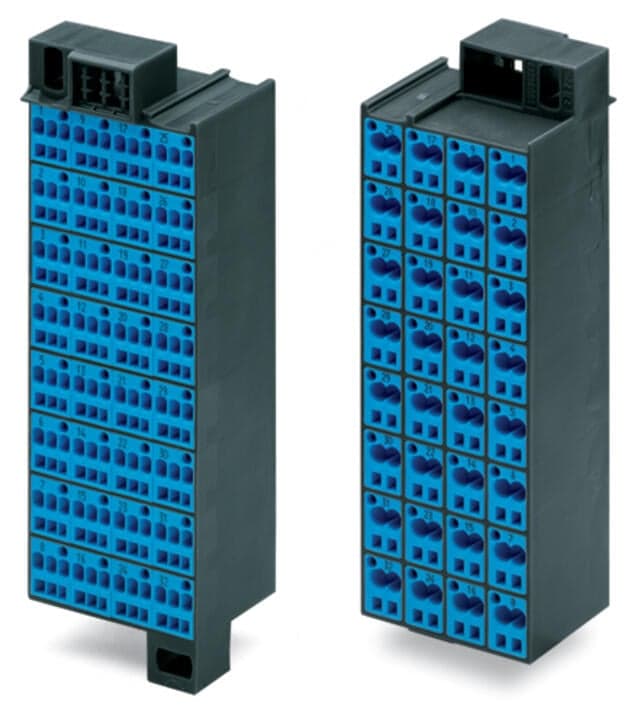

wago 726-242

Selling Points

  • 1Rated for 500V and 6kV impulse voltage, ensuring reliable operation in demanding electrical environments.
  • 2Supports wire sizes from 0.08mm² to 1.5mm² (#28AWG to #16AWG) for flexible connectivity.
  • 3Measuring 44mm x 132mm x 36.5mm, perfect for space-constrained applications.
  • 4Suitable for Ex i applications, meeting stringent safety standards.
  • 5Constructed with dark gray material and blue modules, ensuring long-lasting performance and easy identification.
Product Details
726-242
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Width
44?mm?/ 1.732?inches
Height
132?mm?/ 5.197?inches
Depth
36.5?mm?/ 1.437?inches
Marking
33 … 64
Note (material data)
Information on material specifications can be found here
Color
dark gray
Module color
blue
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
4.497MJ
Weight
186.7g
eCl@ss 10.0
27-24-26-08
eCl@ss 9.0
27-24-26-08
ETIM 9.0
EC001604
ETIM 8.0
EC001604
ECCN
NO US CLASSIFICATION
PU (SPU)
20?(1)?pcs
Packaging type
box
Country of origin
DE
GTIN
4066966346992
Customs tariff number
8536904000
RoHS Compliance Status
Compliant,No Exemption
Rated voltage (III / 3)
500V
Rated impulse voltage (III / 3)
6kV
Rated current
10A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Connection type 1
Page 1
Connection technology
CAGE CLAMP?
Total number of connection points
3
Actuation type
Operating tool
Connectable conductor materials
Copper
Solid conductor
0.08 … 1.5?mm2?/ 28 … 16?AWG
Fine-stranded conductor
0.08 … 1.5?mm2?/ 28 … 16?AWG
Strip length
8 … 10?mm?/ 0.31 … 0.39?inches
Number of poles
32
Wiring direction
Front-entry wiring
Connection type 2
Side 2
Number of connection points 2
2
Solid conductor 2
0.08 … 2.5?mm2?/ 28 … 14?AWG
Fine-stranded conductor 2
0.08 … 2.5?mm2?/ 28 … 14?AWG

Specifications may be subject to change without notice
