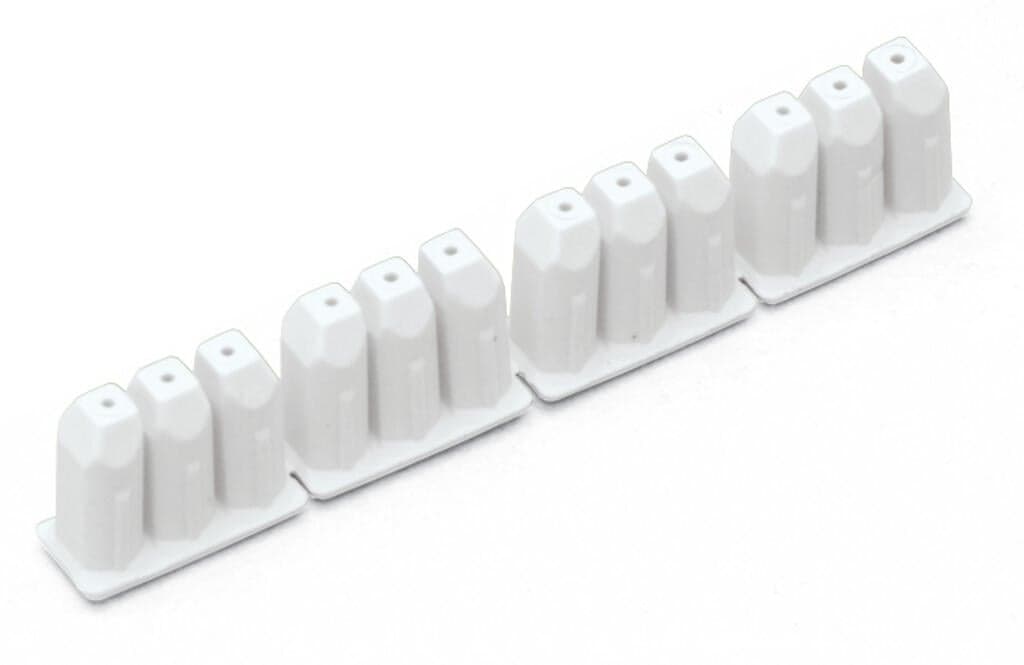

Product Model
726-901
Selling Points
- 1Precise Insulation: Ensures reliable electrical connections with precise insulation.
- 2Versatile Conductor Sizes: Compatible with 0.08 - 0.2 mm² solid conductors and 0.14 mm² fine-stranded conductors.
- 3Durable Construction: Built to withstand demanding electrical environments.
- 4Easy Installation: Simple to install with a strip length of 8 to 10 mm.
- 5Compliant with Standards: Meets safety standards for electrical applications, including RoHS compliance and V-0 flammability rating.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Suitable for patchboard side (side 1) of 1.5 mm2 matrix patchboards (front side differs from back side) | Note (material data) | Information on material specifications can be found here |
Color | white | Fire load | 0.021MJ |
Weight | 0.7g | Product Group | 12 (Matrix Patch Board) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918094191 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Solid conductor | 0.08 … 0.2?mm2?/ 28 … 24?AWG |
Fine-stranded conductor | 0.14?mm2?/ 14?AWG | Strip length | 8 … 10?mm?/ 0.31 … 0.39?inches |
Specifications may be subject to change without notice
