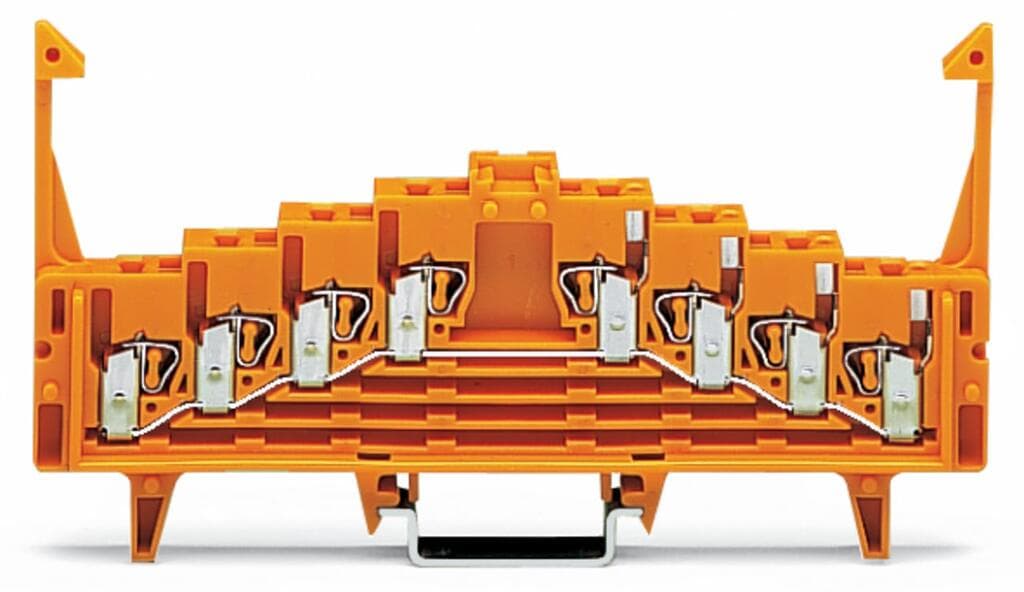

WAGO 727-225/024-000 4-Level Same Potential Terminal Block

Selling Points

14-Level Same Potential Terminal Block: Designed for efficient wiring with four levels of connections.
2Locking Clips: Secure and reliable connections with locking clips.
3Internally Commoned Clamping Units: All clamping units are internally commoned for simplified wiring.
42.3 mm Ø Test Port: Convenient test port for easy diagnostics.
535 x 7.5 mm Mounting Rail Compatibility: Specifically designed for 35 x 7.5 mm mounting rails.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Clamping units	16	Total number of potentials	1
Number of levels	4	Width	7.62?mm?/ 0.3?inches
Height	126?mm?/ 4.961?inches	Depth from upper-edge of DIN-rail	62?mm?/ 2.441?inches
Marking	d-c-b-a--a-b-c-d	Design	horizontal type
Mounting type	DIN-35 rail	Marking level	Center marking
Note (material data)	Information on material specifications can be found here	Color	orange
Material group	I	Insulation material (main housing)	Polyamide (PA66)
Flammability class per UL94	V0	Fire load	0.576MJ
Weight	30.3g	Processing temperature	-35 … +85?°C
Continuous operating temperature	-60 … +105?°C	eCl@ss 10.0	27-14-11-20
eCl@ss 9.0	27-14-11-20	ETIM 9.0	EC000897
ETIM 8.0	EC000897	ECCN	NO US CLASSIFICATION
PU (SPU)	50?pcs	Packaging type	box
Country of origin	DE	GTIN	4045454189044
Customs tariff number	8536904000	RoHS Compliance Status	Compliant,No Exemption
Rated voltage (III / 3)	250V	Rated impulse voltage (III / 3)	4kV
Rated current	18A	Legend (ratings)	(III / 3) ? Overvoltage category III / Pollution degree 3
Connection technology	CAGE CLAMP?	Actuation type	Operating tool
Connectable conductor materials	Copper	Solid conductor	0.08 … 1.5?mm2?/ 28 … 16?AWG
Fine-stranded conductor	0.08 … 1.5?mm2?/ 28 … 16?AWG	Strip length	8 … 10?mm?/ 0.31 … 0.39?inches
Wiring direction	Front-entry wiring

Specifications may be subject to change without notice
