Product Model
733-372/105-604/997-406
Selling Points
- 10.8 x 0.8 mm Solder Pins: Precision-engineered for reliable connections.
- 2Angled Design: Enhances accessibility and ease of use.
- 3100% Mismating Protection: Ensures secure and consistent connections.

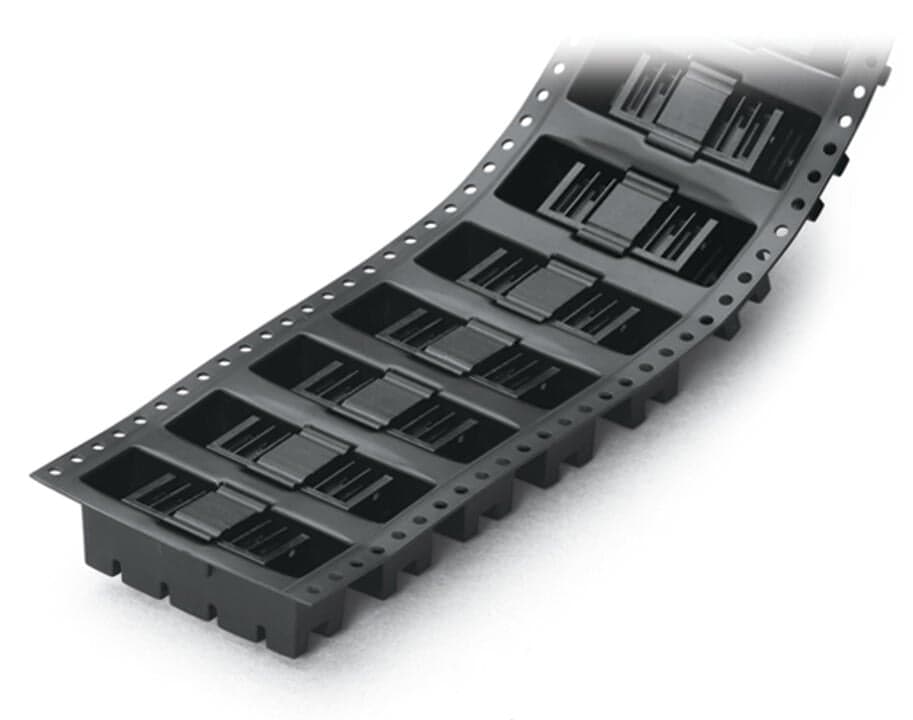

- 4Tape-and-Reel Packaging: Convenient for high-volume applications.
- 5Black Finish: Durable and resistant to environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
Total number of potentials | 12 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 2.5?mm?/ 0.098?inches |
Width | 32.5?mm?/ 1.28?inches | Height | 10.2?mm?/ 0.402?inches |
Height from the surface | 7.8?mm?/ 0.307?inches | Depth | 8.9?mm?/ 0.35?inches |
Solder pin length | 2.4mm | Solder pin dimensions | 0.8 x 0.8?mm |
Plated through-hole diameter (THR) | 1.2(+0.1)mm | Reel diameter of tape-and-reel packaging | 330mm |
Tape width | 44mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
Connector (connection type) | for PCB | Mismating protection | Yes |
Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
PCB contact | THR | Solder pin arrangement | over the entire male connector (in-line) |
Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.037MJ | Weight | 1.9g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | eCl@ss 10.0 | 27-44-04-02 |
eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 300?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454815158 |
Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 80V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 6A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
Rated voltage UL (Use Group B) | 150V | Rated current UL (Use Group B) | 4A |
Rated voltage CSA (Use Group B) | 150V | Rated current CSA (Use Group B) | 4A |
Number of poles | 12 |
Specifications may be subject to change without notice
