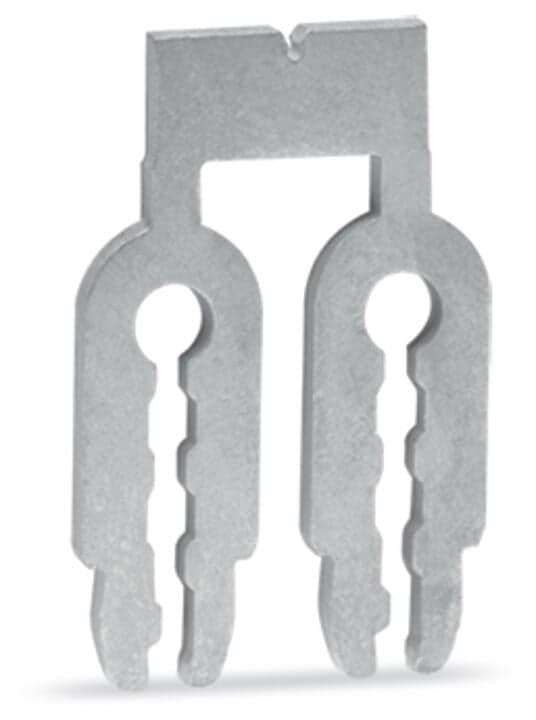

Product Model
745-382
Selling Points
- 1Designed for consistent performance in demanding electronics applications.
- 2Push-in CAGE CLAMP connection for fast and secure termination.
- 3Suitable for both 745 Series and 2706 Series PCB terminal blocks.
- 4Made from high-quality materials, including electrolytic copper and chrome nickel spring steel.
- 5Compact dimensions with 7.5mm pin spacing for efficient PCB integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 7.5?mm?/ 0.295?inches | Jumper assignment | 1-2 |
Suitable | for 745 Series (6 mm2) and 2706 Series | Note (material data) | Information on material specifications can be found here |
Color | silver-colored | Contact material | Copper alloy |
Contact plating | Tin | Weight | 1.7g |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 250?(50)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4044918303446 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated current | 41A |
Specifications may be subject to change without notice
