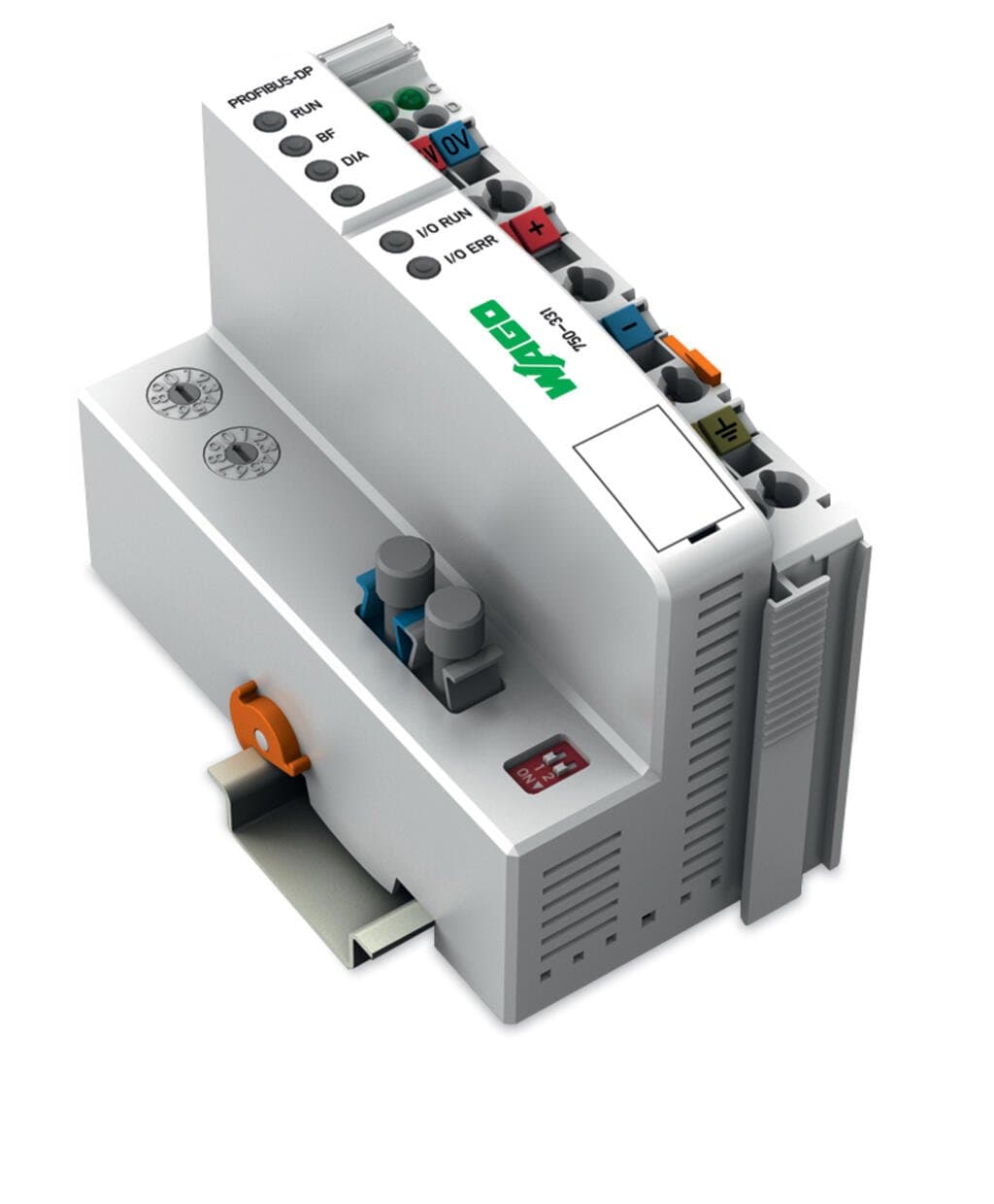

Product Model
750-331
Selling Points
- 1High-Performance Communication: Supports PROFIBUS DP with a baud rate of 93.75 Kbaud to 1.5 MBd.
- 2Durable Design: Operates in ambient temperatures from 0°C to +55°C and is rated for IP20 protection.
- 3Flexible Connectivity: Offers 64 connections per node and up to 10 fieldbus nodes on master connection.
- 4Efficient Power Supply: Powered by 24Vdc via wiring or power jumper, with a power supply efficiency of 0.87 at nominal load.
- 5Compact and Mountable: DIN rail mounting with dimensions of H100mm x W50.5mm x D71.1mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Note: Configuration files required (GSD)! | Communications | PROFIBUS |
Number of fieldbus nodes on master (max.) | 10 | Transmission rate | 93.75/1.5 MBd |
Bus segment length (max.) | 25 m | Transmission medium (communication/fieldbus) | APF (All Plastic Fiber) (1000 μm) |
Number of modules per node (max.) | 64 | Number of modules without a bus extension (max.) | 64 |
Input and output process image (fieldbus) max. | 128 bytes/128 bytes | Supply voltage (system) | 24 VDC (-15 … +20 %); via pluggable connector (CAGE CLAMP?connection) |
Current consumption (5 V system supply) | 350mA | Total current (system supply) | 1,650mA |
Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts | Input current (typ.) at nominal load (24?V) | 500mA |
Power supply efficiency (typ.) at nominal load (24 V) | 87% | Isolation | 500 V system/field |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
Standard | EN 50170 | Connection technology: communication/fieldbus | PROFIBUS: 1 x HP Simplex, FOC plug (included) |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection technology: system supply | 2 x CAGE CLAMP? |
Connection type 1 | System/field supply | Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection technology: device configuration | 1 x Male connector; 4-pole | Width | 50.5 mm / 1.988 inches |
Height | 100 mm / 3.937 inches | Depth | 71.1 mm / 2.799 inches |
Depth from upper-edge of DIN-rail | 63.9 mm / 2.516 inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Weight | 191g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -25 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-07 |
eCl@ss 9.0 | 27-24-26-07 | ETIM 9.0 | EC001603 |
ETIM 8.0 | EC001603 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8517620090 |
End of Sale | 2023-12-31 | End of Production | 2024-03-31 |
End of Delivery | 2024-04-01 | End of Service and Repair | 2026-04-01 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
