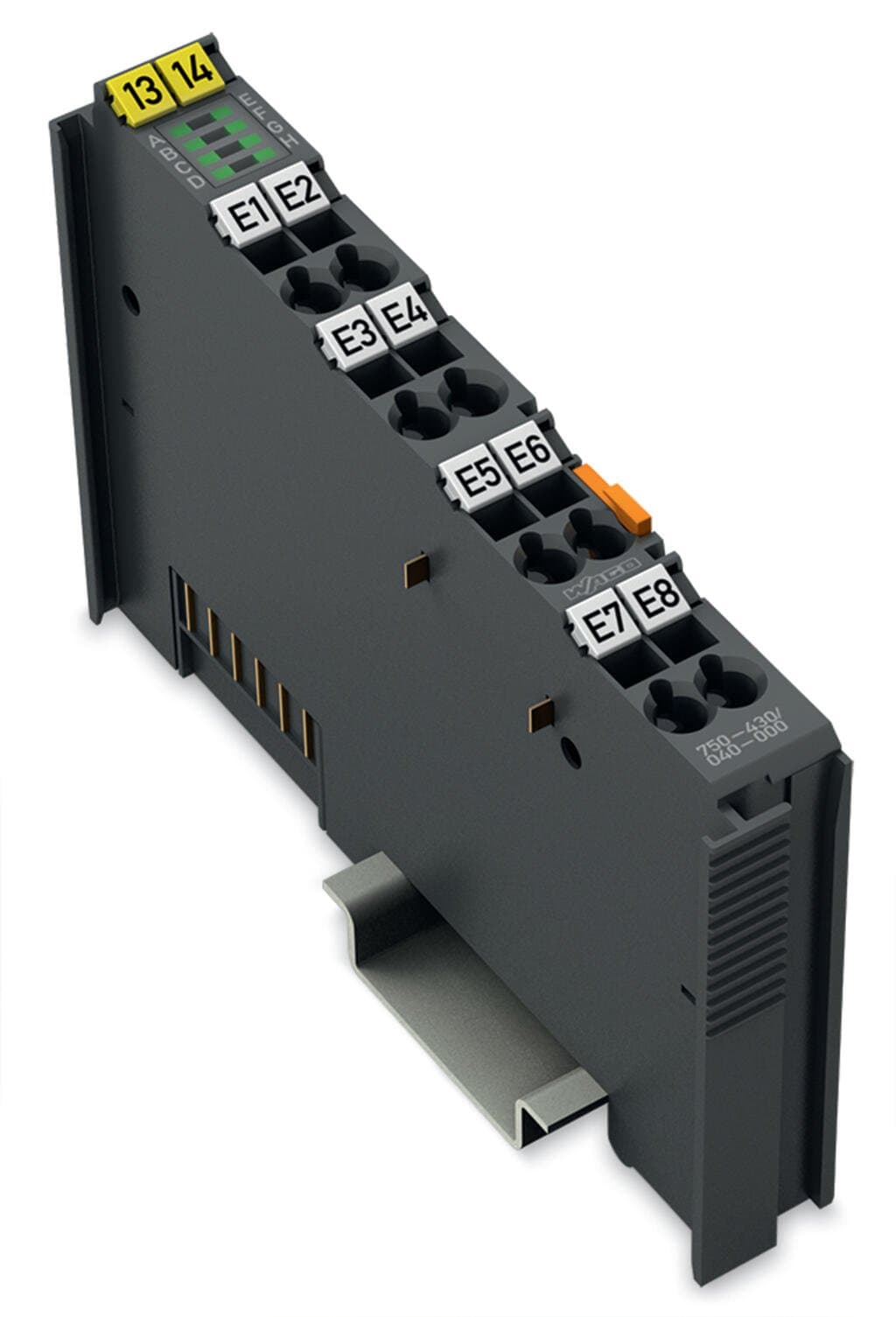

Product Model
750-430/040-000
Selling Points
- 18-Channel Digital Input: Process up to 8 digital signals with this versatile module.
- 224 VDC Operation: Designed to operate at 24 VDC for reliable performance in industrial settings.
- 33 ms Response Time: Fast response time of 3 ms ensures quick data processing and accurate readings.
- 4Extreme Reliability: Built with polycarbonate and polyamide 6.6 housing for durability and resistance to environmental factors.
- 5CAGE CLAMP® Connection: Easy and secure connection technology with 8 x CAGE CLAMP® terminals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital inputs | 8 | Number of Channels | 8 |
Signal type | Voltage | Signal type (voltage) | 24 VDC |
Sensor connection | 8 x (1-wire) | Input characteristic | High-side switching |
Input filter (digital) | 3ms | Input current per channel for signal (1) typ. | 2.8mA |
Voltage range for signal (0) | ?3 … +5 VDC | Voltage range for signal (1) | 15 … 30 VDC |
Input data width (internal) max. | 8bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 17mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission via spring contact); Derating must be observed! |
Dielectric strength | 510 VAC / 775 VDC; per EN 60870-2-1 | Indicators | LED (A-H) green: Status DI 1 … DI 8 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Rated surge voltage | 1 kV |
Derating | Derating (supply voltage):Ambient temperatures under laboratory conditions: (?25 … +30°%);for ?40 … +55°°C: 24°V (?25 … +20°%);for +55 … +70°°C: 24°V (?25 … +10°%);Lower limit in all temperature ranges: ?27.5°% (including 15°% residual ripple) | Connection technology: inputs / outputs | 8 x CAGE CLAMP?(inputs) |
Connection type 1 | Input | Solid conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG |
Fine-stranded conductor | 0.25 … 2.5 mm2 / 24 … 14 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Width | 12 mm / 0.472 inches | Height | 100 mm / 3.937 inches |
Depth | 67.8 mm / 2.669 inches | Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mounting type | DIN-35 rail | Color | dark gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.958MJ |
Weight | 46.4g | Conformity marking | CE |
Ambient temperature (operation) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) | Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
Vibration resistance | per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373 | Shock resistance | per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373 |
EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26;EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 | EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(c)-I |
SCIP notification number (Austria) | ec0c7ad5-4291-4305-88b8-d8d6551fec54 | SCIP notification number (Belgium) | 7a70c03b-9c21-42df-9dd0-53d90884a532 |
SCIP notification number (Bulgaria) | 982332af-ff54-4a74-b3f6-f1371b039e2e | SCIP notification number (Czech Republic) | f7c11fee-dcd4-40a5-9127-c6faf2d658d2 |
SCIP notification number (Denmark) | 6e832633-1b20-41b0-ac00-9fd70d7d3799 | SCIP notification number (Finland) | 3747f0ec-85e2-4aff-84fa-d385c257cc77 |
SCIP notification number (France) | 5d278e2e-17dc-4dc2-89a6-4aa47ee2965b | SCIP notification number (Germany) | 0e0ec410-a0b7-4fa8-a1b1-4c864e6cbfa8 |
SCIP notification number (Hungary) | 166b9aed-d675-40c7-a526-7adcd5d33979 | SCIP notification number (Italy) | f01e7efa-afe5-4842-a3eb-0799f650e29c |
SCIP notification number (Netherlands) | d096f02d-aee4-4c0b-a6e8-7606575ce2e7 | SCIP notification number (Poland) | 7a7c71d9-94b9-4aa4-a422-ddc4361992e3 |
SCIP notification number (Romania) | e23f7bab-3ac9-4fac-8505-22a9006e6c44 | SCIP notification number (Sweden) | 05bc9cea-3283-4b6d-bbae-1abdf848c1f2 |
Specifications may be subject to change without notice
