Product Model

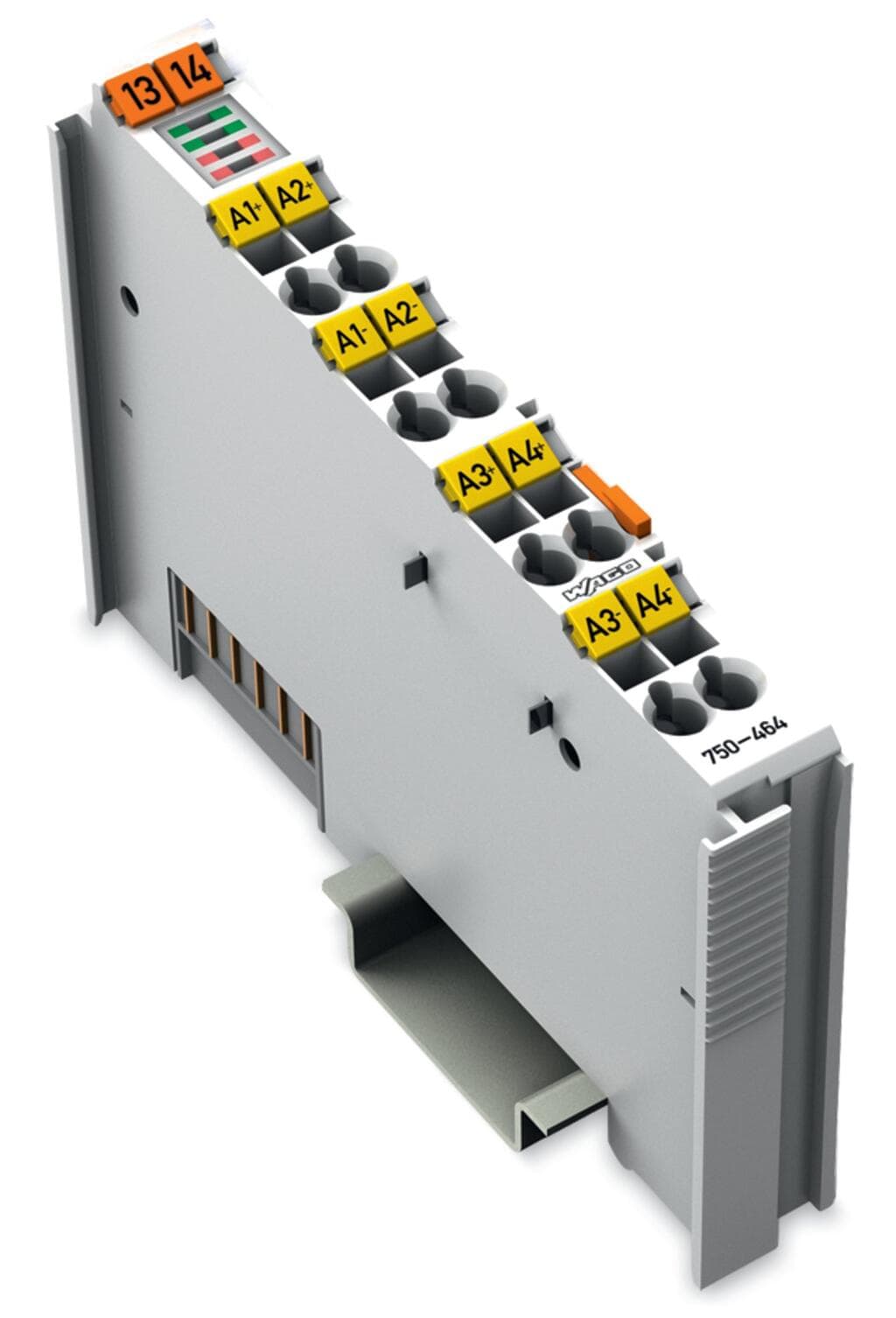

750-464
Selling Points
- 1High-resolution 12-bit analog inputs for precise signal measurement.
- 2Single-ended 4-20 mA connections for easy integration with various sensors.
- 3Compact DIN-35 rail mounting design for space-efficient installations.
- 4Robust IP20 protection rating for reliable operation in harsh environments.
- 5Compatible with WAGO's modular I/O system for flexible configuration options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 4 | Number of Channels | 4 |
Signal type | Resistance measurement | Signal type (configurable) | yes |
Sensor connection | 4 x (2-wire);?2 x (3-wire) | Data width | 4 (2) x 16-bit data; 4 (2) x 8-bit control/status (optional) |
Resolution (over entire range) | 0.1?°C | Conversion time (typ. ≤) | 320ms |
Measurement error (25 °C) | ≤ 1 K within the entire temperature range, ≤ 0.5 K within the temperature range (?30 … +120 °C, Pt 1000) | Temperature coefficient | ≤?20?ppm/K |
Measuring current (typ.) | ≤ 350?μA | Measurement repetition rate (standard) | 1.1s |
Measurement repetition rate (2-channel/2-conductor) | 0.63s | Response time (max.) | 4s |
Sensor types | Pt100; Configurable: Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000; Potentiometer (2-channel operation only): 10R … 1k2, 10R … 5k0 | Temperature range | ?200 … +850?°C (Pt100), ?60 … +300?°C (Ni 100, Ni 1000), ?60 … +250?°C (Ni 1000 TK5000), ?80 … +260?°C (Ni 120) |
Configuration options | WAGO-I/O-CHECK | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 50mA | Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500?V system/field | Indicators | LED (A, B, E, F) green: Function AI 1 … AI 4; LED (C, D, G, H) red: Error AI 1 … AI 4 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 67.8?mm?/ 2.669?inches | Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 0.967MJ |
Weight | 49.7g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-1, EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-3, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454976927 |
Customs tariff number | 8538901000 | CAS-No. | 11120-22-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 0476905f-9e53-4f8b-814e-f8f19b72a769 |
SCIP notification number (Belgium) | 6c6921be-9559-45d1-8344-954739511176 | SCIP notification number (Bulgaria) | 503bfb7a-872f-492e-93f8-1922e2294fd2 |
SCIP notification number (Czech Republic) | bdd58625-3def-4028-92e4-2d2f74c5e5b7 | SCIP notification number (Denmark) | 41a6277b-5fe9-41d8-9230-6262478a0158 |
SCIP notification number (Finland) | ad180679-1c6c-4d5f-b918-fb3300a45bfe | SCIP notification number (France) | 14fb7b74-fa5e-4697-b250-8a9288060abf |
SCIP notification number (Germany) | 3c41a2ca-c5b4-48d6-9085-f3424c109b48 | SCIP notification number (Hungary) | d73443de-5ce4-4c06-acc7-9283e7132bdb |
SCIP notification number (Italy) | e4fefac4-7314-4ee4-8173-be34128feea7 | SCIP notification number (Netherlands) | 993bac28-2677-4c23-bdbb-2e84588c07c2 |
SCIP notification number (Poland) | bb4f9b56-7b76-4e22-bd08-9e5e81384635 | SCIP notification number (Romania) | 73f64fe0-67e1-40cd-b1ce-f4ce4ab2a2e1 |
SCIP notification number (Sweden) | 22fad49d-6747-4d55-af0e-5c978dcb9033 |
Specifications may be subject to change without notice
