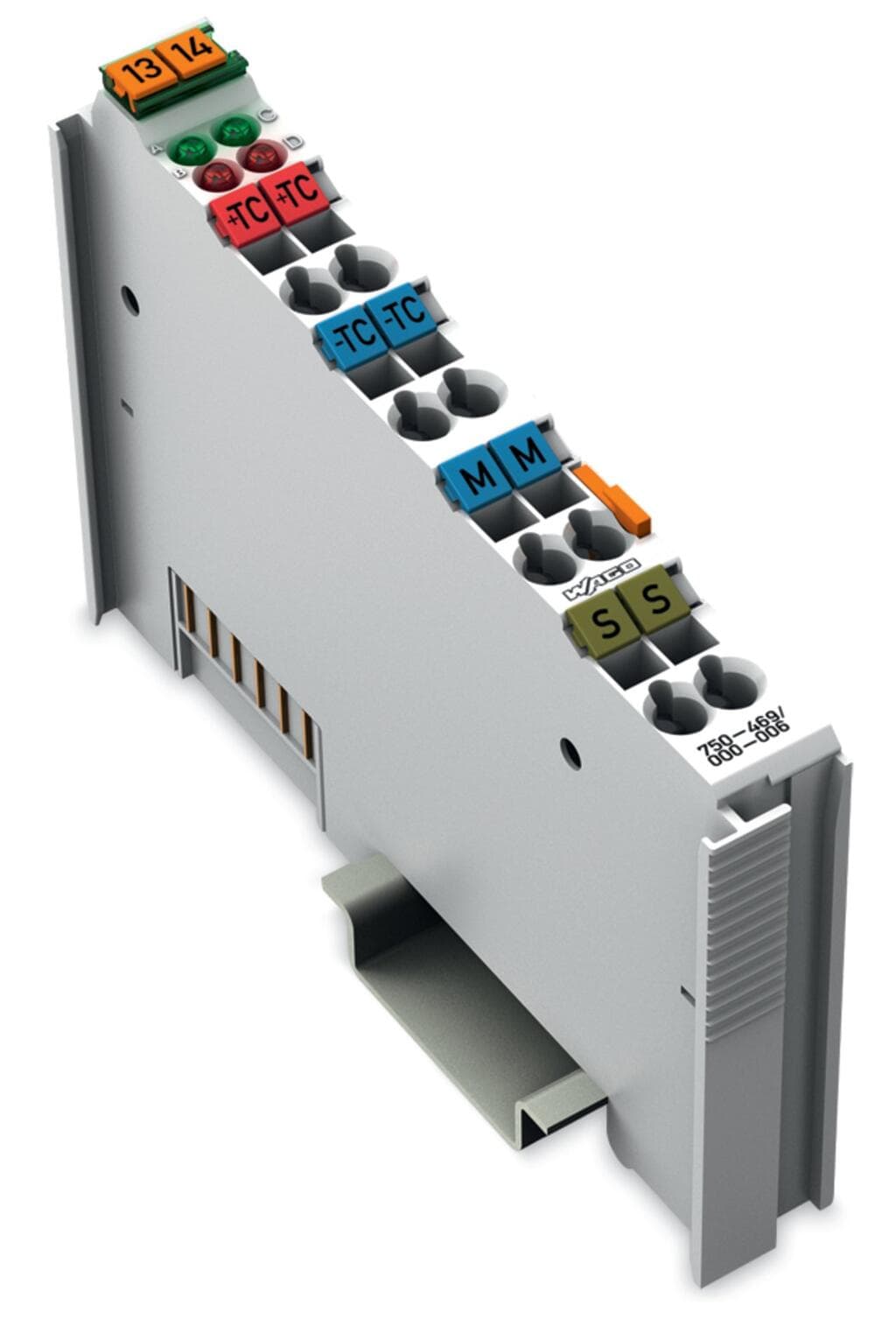

Product Model
750-469/000-006
Selling Points
- 1High accuracy thermocouple J input for precise measurements.
- 2Built-in diagnostics for easy troubleshooting and maintenance.
- 3Compact design for seamless integration into industrial systems.
- 4Robust construction for reliable performance in harsh environments.
- 5Compatible with WAGO I/O systems for comprehensive automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog inputs | 2 | Number of Channels | 2 |
Signal type | Thermocouple | Sensor connection | 2 x (2-wire) |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Internal resistance | 1000kΩ |
Resolution (over entire range) | 0.1?°C | Conversion time (typ. ≤) | 320ms |
Measurement error (25 °C) | < ±6 K (voltage input < ±2 K; cold junction compensation < ±4 K) | Temperature coefficient | < ±0.2 K/K |
Sensor types | Thermocouple J | Temperature range | ?100 … +1200?°C |
Cold junction compensation | at each pair of terminal blocks | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 65mA | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AI 1, AI 2; LED (B, D) red: Error AI 1, AI 2 | Connection technology: inputs / outputs | 8 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.034MJ |
Weight | 51.7g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | 4g per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2, marine applications |
EMC emission of interference | per EN 61000-6-4, marine applications | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454393120 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 00f805b1-33c5-4f84-92cc-8ae6a49d048c |
SCIP notification number (Belgium) | 4477d235-4cb2-44bf-b96d-185076dd80a2 | SCIP notification number (Bulgaria) | 36bd7d72-405b-490e-94a1-2f0415879327 |
SCIP notification number (Czech Republic) | 66ca2400-8f20-4064-bd9d-ce64a6b75a1c | SCIP notification number (Denmark) | a85fe808-d979-4a57-b3db-0bd11475b2bb |
SCIP notification number (Finland) | 796d2f15-5ab9-4442-b2f3-c3d3b5054d03 | SCIP notification number (France) | 33cd4de6-0877-425b-9375-eb7e142e3266 |
SCIP notification number (Germany) | ce0610a9-a686-43a7-ba44-347351151181 | SCIP notification number (Hungary) | 1ab3e18c-0ec4-48ef-9a5a-0928fb2ba8b2 |
SCIP notification number (Italy) | f0924d37-e605-4c84-88d8-f79f3acd2d0f | SCIP notification number (Netherlands) | d169fada-0f82-4b98-b2b1-3c021080d5fb |
SCIP notification number (Poland) | b6fcf463-99cb-48c4-bb6a-3581ec053501 | SCIP notification number (Romania) | 3511fa91-1d6e-4374-8b9f-2bf1f926901e |
SCIP notification number (Sweden) | a2b68af6-6aff-4619-98f0-b5ff6be0ab15 |
