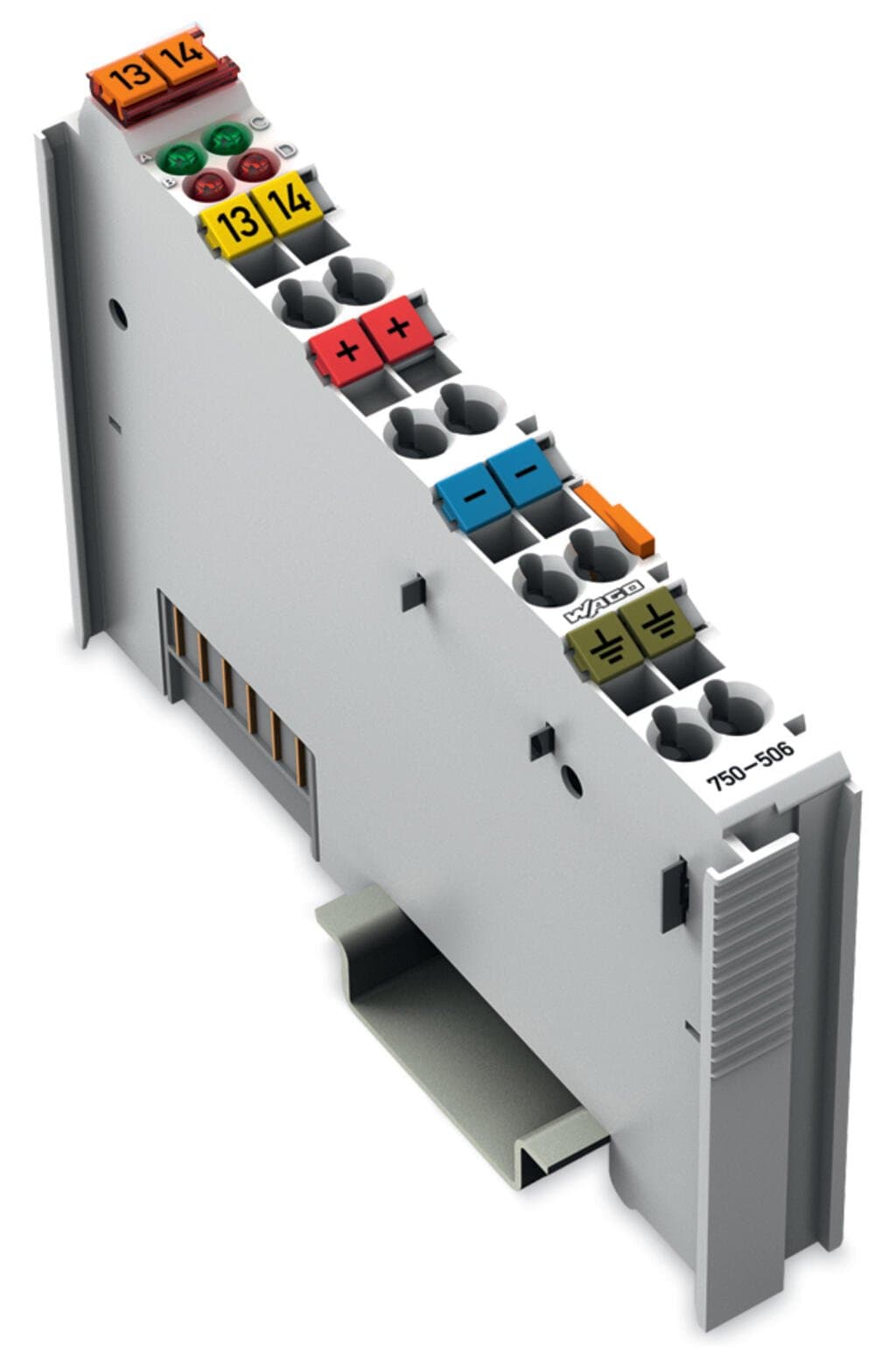

Product Model
750-506
Selling Points
- 1High-Side Switching: The module supports high-side switching for reliable digital output.
- 2Diagnostics: Equipped with diagnostics for easy troubleshooting and monitoring.
- 3Compact Design: DIN-35 rail mounting with a 12mm width for space-efficient installation.
- 4Wide Temperature Range: Operates from 0°C to +55°C and stores from -40°C to +85°C.
- 5IP20 Protection: Ensures protection against dust and water, meeting IP20 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of digital outputs | 2 | Number of Channels | 2 |
Signal type | Digital | Signal type (voltage) | 24 VDC |
Actuator connection | 2 x (2-wire, 3-wire, 4-wire) | Output characteristic | high-side switching |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Load type | Resistive, inductive, lamp load | Reverse voltage protection | No |
Open-circuit detection | 9.5mA | Short-circuit limitation (typ.) PWM | 1.5A |
Switching frequency (max.) | 5 kHz | Inductive load switch-off energy dissipation (max.) | 0.2J |
Diagnostics | Open circuit, short circuit, overload | Input data width (internal) max. | 4bits |
Output data width (internal) max. | 4bits | Supply voltage (system) | 5 VDC; via data contacts |
Current consumption (5 V system supply) | 15mA | Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Current consumption, field supply (module with no external load) | 15mA | Isolation | 500 V system/field |
Indicators | LED (A, C) green: Status DO 1, DO 2; LED (B, D) red: Error DO 1, DO 2 | Number of incoming power jumper contacts | 3 |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 10A |
Connection technology: inputs / outputs | 8 x CAGE CLAMP?(outputs) | Connection type 1 | Output |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Width | 12 mm / 0.472 inches |
Height | 100 mm / 3.937 inches | Depth | 69.8 mm / 2.748 inches |
Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches | Mounting type | DIN-35 rail |
Pluggable connector | fixed | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.458MJ |
Weight | 48g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1 pcs | Packaging type | Box |
Country of origin | DE | Customs tariff number | 8537109170 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | ec14ca80-7e07-47d9-914c-933856b88e08 | SCIP notification number (Belgium) | cb2b0d49-3571-4c18-aabe-b7723c10b37b |
SCIP notification number (Bulgaria) | f6a1aa20-7bca-4604-ba32-5daaa2c24107 | SCIP notification number (Czech Republic) | 1ae00c76-7f4e-4b5b-a551-a4c6cfc0f465 |
SCIP notification number (Denmark) | 545840be-5b12-485a-aea1-00b8d6fcfb7a | SCIP notification number (Finland) | 27a3bce6-3e87-4de9-ba05-a4de21f128bb |
SCIP notification number (France) | 2ddb318c-3acd-4e81-825b-f9539c618476 | SCIP notification number (Germany) | a7b539ea-e771-425c-8633-0da499246541 |
SCIP notification number (Hungary) | 41b326fa-a60d-4b25-8b20-f5e17c3b5d50 | SCIP notification number (Italy) | 1e105c4c-35e8-4341-9544-849e710073f5 |
SCIP notification number (Netherlands) | 8e59006d-27ac-480c-9eef-3a69304e4a84 | SCIP notification number (Poland) | a6503564-4126-45d8-9b4a-6ff02504c194 |
SCIP notification number (Romania) | c0d39d23-dbd4-4c65-92f1-391da5b0a703 | SCIP notification number (Sweden) | 58a4505c-b697-48b6-8437-5543aea8025b |
Specifications may be subject to change without notice
