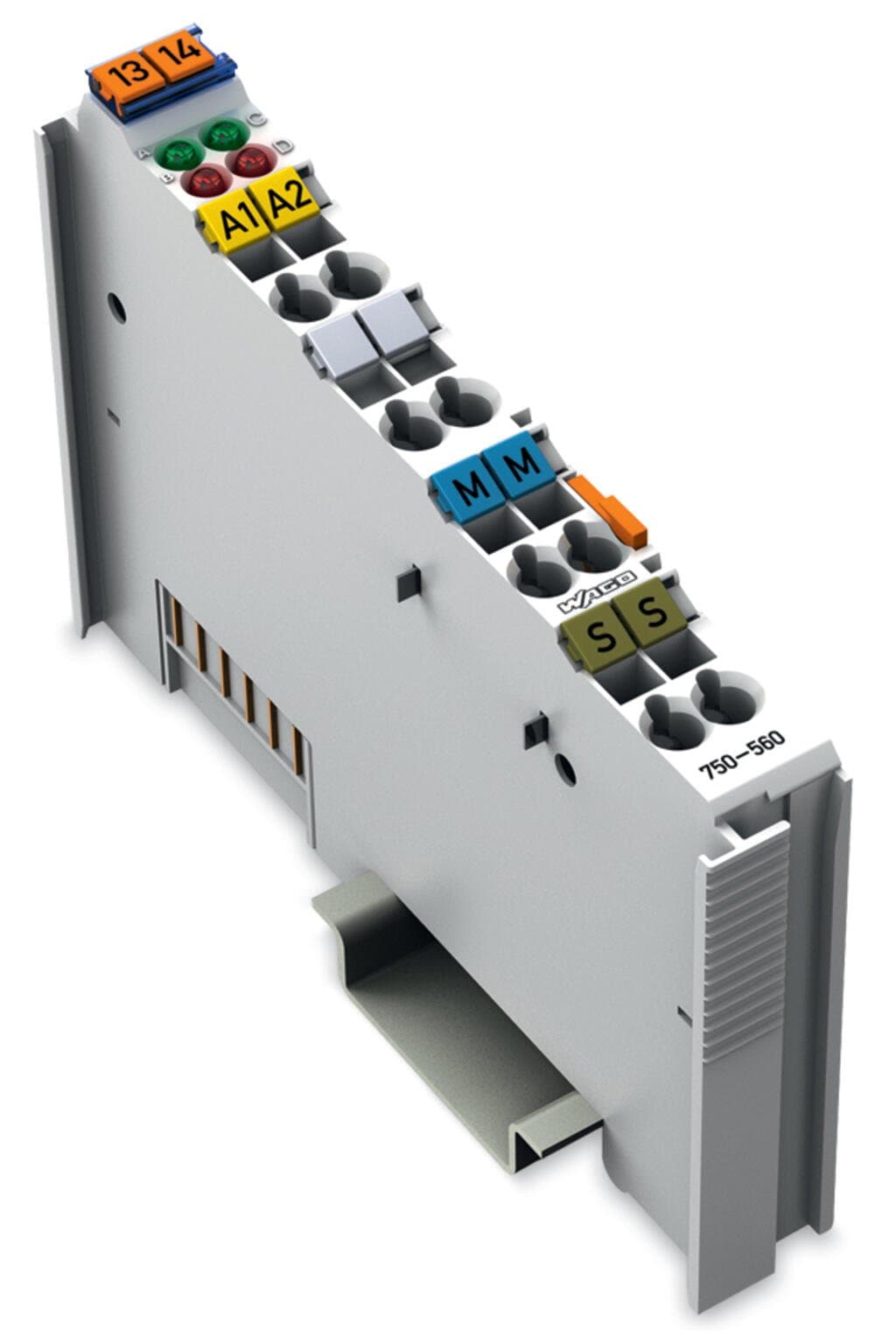

Product Model
750-560
Selling Points
- 1Reliable 24 VDC Output: Provides stable and consistent voltage for precise control.
- 2Durable Construction: Built with polycarbonate and polyamide 6.6 for long-lasting performance.
- 3Easy Mounting: Compatible with 35 mm DIN rail mounting for straightforward installation.
- 4Wide Temperature Range: Operates effectively between 0 to 55°C, ensuring robust performance in various environments.
- 5High Resolution: Offers 10-bit resolution for accurate analog output signals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Number of analog outputs | 2 | Number of Channels | 2 |
Signal type | Voltage | Signal type (voltage) | 0 … 10?VDC |
Actuator connection | 2 x (2-wire) | Resolution [bit] | 10bits |
Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) | Load impedance (voltage output) | ≥?1?kΩ |
Conversion time (typ. ≤) | 10ms | Measurement error, reference temperature | 25°C |
Measurement error, deviation max (upper-range value) ≤± | 0.2% | Temperature error max. (upper-range value) ≤± | 0.02%/K |
Output error, deviation (max.) of the upper-range value | 0.2% | Temperature error (max.) of the output range value | 0.02%/K |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 16mA |
Supply voltage (field) | 24 VAC/DC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AO 1, AO 2; LED (B, D) red: Error AO 1, AO 2 | Number of incoming power jumper contacts | 2 |
Number of outgoing power jumper contacts | 2 | Connection technology: inputs / outputs | 6 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Color | light gray |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.375MJ |
Weight | 52.1g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-01 |
eCl@ss 9.0 | 27-24-26-01 | ETIM 9.0 | EC001596 |
ETIM 8.0 | EC001596 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454501327 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 7f0d4eb4-18c1-4a15-bc24-23b01972eabe |
SCIP notification number (Belgium) | de25873f-f705-4c77-88f2-85390cccd6b8 | SCIP notification number (Bulgaria) | 9367fd23-5312-4033-b9bd-948fc774edee |
SCIP notification number (Czech Republic) | dbf3395a-c952-4592-b2f7-32c7685de7ff | SCIP notification number (Denmark) | aa19bd44-daa9-438f-8830-0911e94f20a5 |
SCIP notification number (Finland) | 798cf53c-9ffc-4e7b-acf0-f0b67149a018 | SCIP notification number (France) | 282e9823-a12d-455d-b999-83cf5efe7f94 |
SCIP notification number (Germany) | 09b82f95-2672-4d0d-a459-8234df56a1c5 | SCIP notification number (Hungary) | cac07aa4-daf1-4026-b2c0-04e98c50c98d |
SCIP notification number (Italy) | 60c8cfe0-4ec7-490b-bb27-8faea3eb563e | SCIP notification number (Netherlands) | 5358cb9b-87b2-483b-9895-22fe7c7a3904 |
SCIP notification number (Poland) | 028abb24-f819-49a3-b163-8fe70d86d7c2 | SCIP notification number (Romania) | 326aa799-3dfe-4cb3-a0b8-029e20d2e71c |
SCIP notification number (Sweden) | 12bb8c1e-a36d-4066-9d89-2670b8ae99a2 |
Specifications may be subject to change without notice
