Product Model

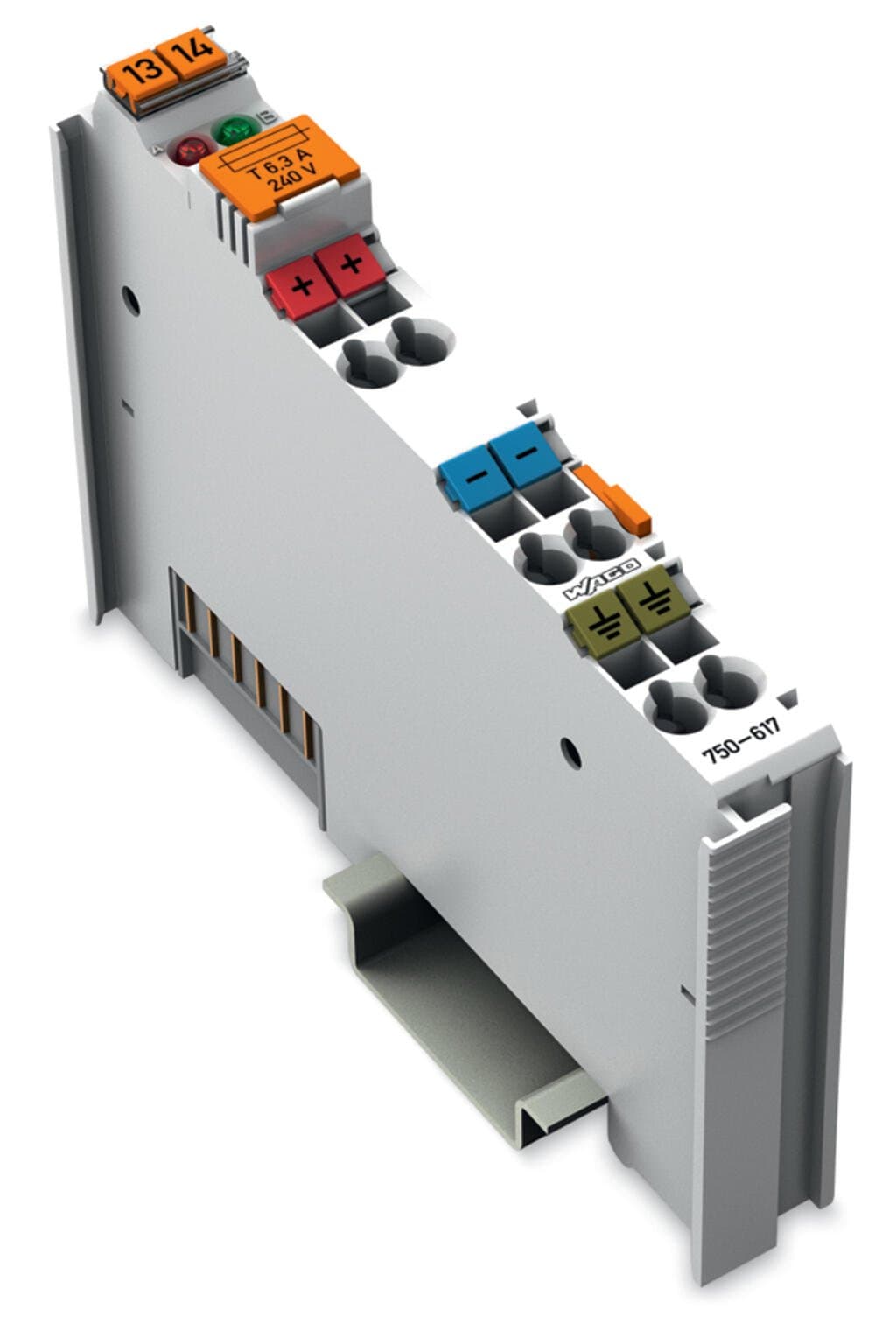

750-617
Selling Points
- 1Reliable 24VAC Power Supply: Operates on a stable 24VAC supply voltage.
- 2Accessible Fuse Holder: Easy-to-use fuse holder design for quick maintenance.
- 3High Current Output: Delivers a reliable 6.3A output for demanding applications.
- 4DIN-35 Rail Mounting: Conveniently mounts on DIN-35 rail systems.
- 5IP20 Protection Rating: Ensures robust protection against environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Signal type | Voltage | Signal type (voltage) | 24?VAC |
Fuse | 5 x 20; T 6.3 A (not included) | Supply voltage (system) | 5?VDC;?via data contacts |
Supply voltage (field) | 24 VAC; via power jumper contacts (power supply via CAGE CLAMP?connection; transmission (field-side supply voltage only) via spring contact | Indicators | LED (A) red: defective fuse error; LED (B) green: power supply status |
Number of outgoing power jumper contacts | 3 | Current carrying capacity (power jumper contacts) | 6.3A |
Connection technology: field supply | 6 x CAGE CLAMP? | Connection type 1 | Field supply |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 69.8?mm?/ 2.748?inches |
Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches | Mounting type | DIN-35 rail |
Housing material | Polycarbonate; polyamide 6.6 | Fire load | 1.53MJ |
Weight | 50g | Conformity marking | CE |
Ambient temperature (operation) | 0 … +55 °C | Ambient temperature (storage) | -40 … +85 °C |
Protection type | IP20 | Pollution degree | 2 per IEC 61131-2 |
Operating altitude | 0 … 2000?m / 0 … 6562 ft | Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
Relative humidity (without condensation) | 95% | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | 15g per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
EMC emission of interference | per EN 61000-6-4 | Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm | Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-10 |
eCl@ss 9.0 | 27-24-26-10 | ETIM 9.0 | EC001600 |
ETIM 8.0 | EC001600 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821215233 |
Customs tariff number | 8538901000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 4cbcd541-1451-4509-9bc6-60420769e015 |
SCIP notification number (Belgium) | f8f2dede-d28d-4f9e-adf5-a5be45ec3e5e | SCIP notification number (Bulgaria) | c6c01b97-23d6-42a1-a76f-3d963afdfd00 |
SCIP notification number (Czech Republic) | 43010a3b-780b-43d3-b428-4e2b1a1ea121 | SCIP notification number (Denmark) | 006f2f26-3ee1-4683-8da2-a8dfdfa31cae |
SCIP notification number (Finland) | 674e7d91-b278-4e27-9810-14b6d5fc2ca4 | SCIP notification number (France) | 25516f23-112b-425d-bbee-e4c3de70c587 |
SCIP notification number (Germany) | d846986b-367b-4f14-b3eb-d4e2c6777a5d | SCIP notification number (Hungary) | f0225653-dc5b-4aeb-b1f6-2f927d5b6eea |
SCIP notification number (Italy) | ba5c515f-35db-4d22-9ada-58a801eb6307 | SCIP notification number (Netherlands) | cca1e19c-6c79-442b-a7f2-6f25b2c6acd3 |
SCIP notification number (Poland) | af54004b-4585-46c0-88d1-83962dfab82c | SCIP notification number (Romania) | 3e488b73-4e9b-40de-8852-876fad319d83 |
SCIP notification number (Sweden) | 18b6031c-e0c8-4c8f-bdcc-3be03fdf9eeb |
Specifications may be subject to change without notice
