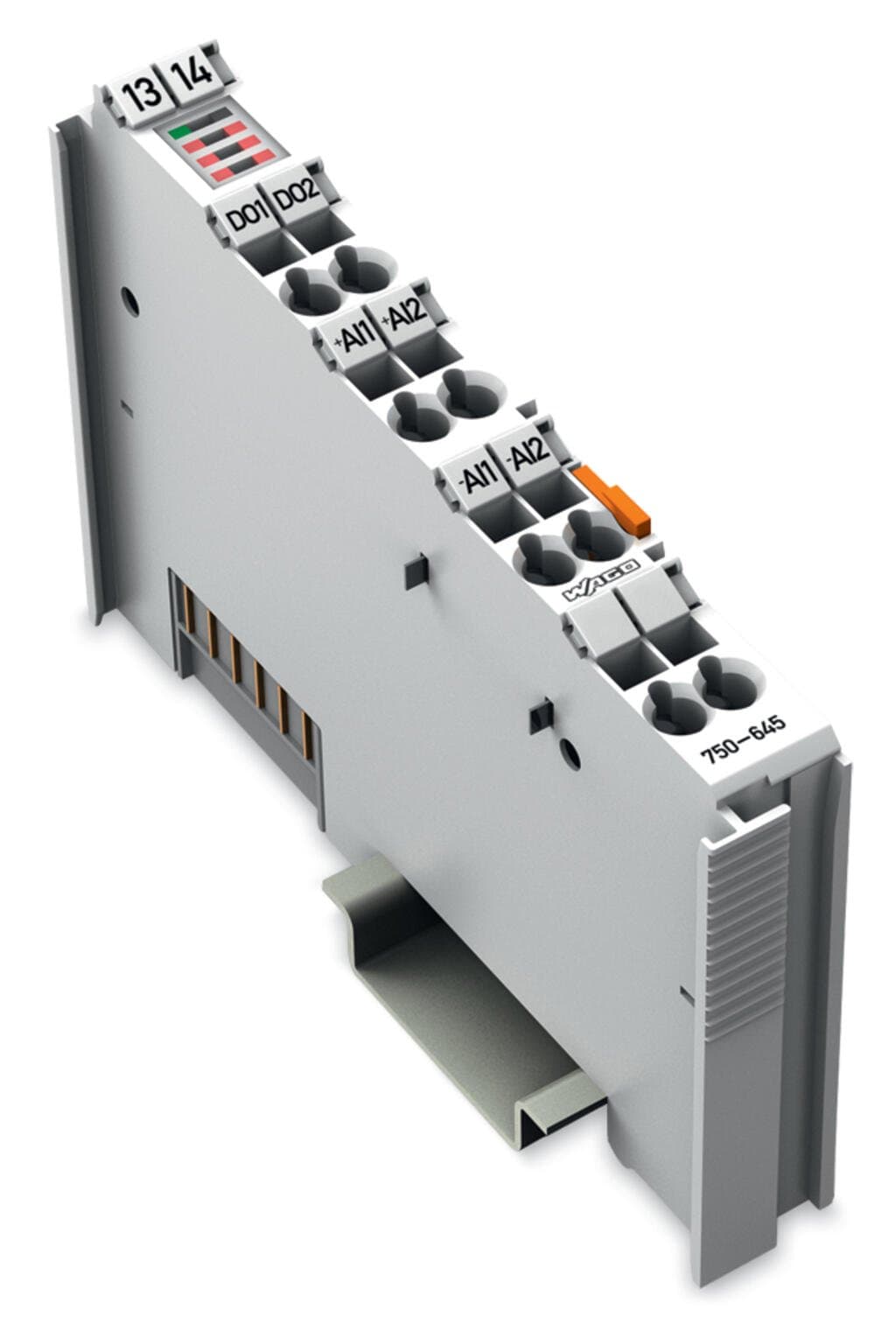

Product Model
750-645
Selling Points
- 1Dual Channel Monitoring: Tracks vibration velocity and bearing conditions in real-time.
- 2Durable Design: Constructed with polycarbonate and polyamide 6.6 for robustness.
- 3Easy Installation: Mounts on DIN-35 rail for quick and secure setup.
- 4High Accuracy: Measures oscillating velocity up to 100 mm/s with high precision.
- 5Reliable Connectivity: Uses push-in spring CAGE CLAMP connections for secure input/output connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device-specific | Both alarm and warning threshold can be set via process image and engineering software. | Number of digital outputs | 2 |
Number of inputs | 2 | Encoder connection | +AI1, -AI1, +AI2, -AI2 |
Output current per channel | 0.5A | Output current | short-circuit-protected |
Output voltage | 24?VDC | Oscillating velocity (RMS) | 0 … 100 mm/s |
Shock impulse (SPM) | -10 … +80 dbSV | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 30mA | Supply voltage (field) | 24 VDC (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
Isolation | 500?V system/field | Indicators | LED (A) green: Sys. ok; LED (B-D, F-H) red: Alarm 1, Warn 1, Error 1, Alarm 2, Warn 2, Error 2 |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 12?mm?/ 0.472?inches |
Height | 100?mm?/ 3.937?inches | Depth | 67.8?mm?/ 2.669?inches |
Depth from upper-edge of DIN-rail | 60.6?mm?/ 2.386?inches | Mounting type | DIN-35 rail |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.967MJ | Weight | 65g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-3 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-05 | eCl@ss 9.0 | 27-24-26-05 |
ETIM 9.0 | EC001601 | ETIM 8.0 | EC001601 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454727451 | Customs tariff number | 8537109170 |
CAS-No. | 12060-00-3 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 630fe19a-3951-41e2-b0ed-dbef1c24682e | SCIP notification number (Belgium) | 16931dcb-6eed-4692-a6be-0b281a4acc0a |
SCIP notification number (Bulgaria) | eb980276-80d5-4ac0-b874-27f5c8dadfec | SCIP notification number (Czech Republic) | b5c7f10f-c142-4fee-8146-42be82ab199c |
SCIP notification number (Denmark) | 3e3e9419-d3fa-4da9-b60e-1aecbbf63743 | SCIP notification number (Finland) | 32427cb2-353c-4444-a906-5fb550b0aff5 |
SCIP notification number (France) | 66d56363-aed7-4245-918d-ec00fb9d45e7 | SCIP notification number (Germany) | 72bd88a7-c02a-4bdb-b2ab-bc51e3c3385a |
SCIP notification number (Hungary) | 9bfcd90d-f31d-4ce4-9cb4-f05cbf77fe7d | SCIP notification number (Italy) | 859e833b-3ea6-4e52-9c3a-4444ad28d6fe |
SCIP notification number (Netherlands) | e3e328ef-7f8f-4e24-8d23-044607991c25 | SCIP notification number (Poland) | fa6c05a5-9205-4004-bba4-016516fce4d8 |
SCIP notification number (Romania) | d39f1174-7d4e-4786-a5f9-65fa19e42b36 | SCIP notification number (Sweden) | c19e6000-442f-4403-8861-9bd0400310ea |
Specifications may be subject to change without notice
