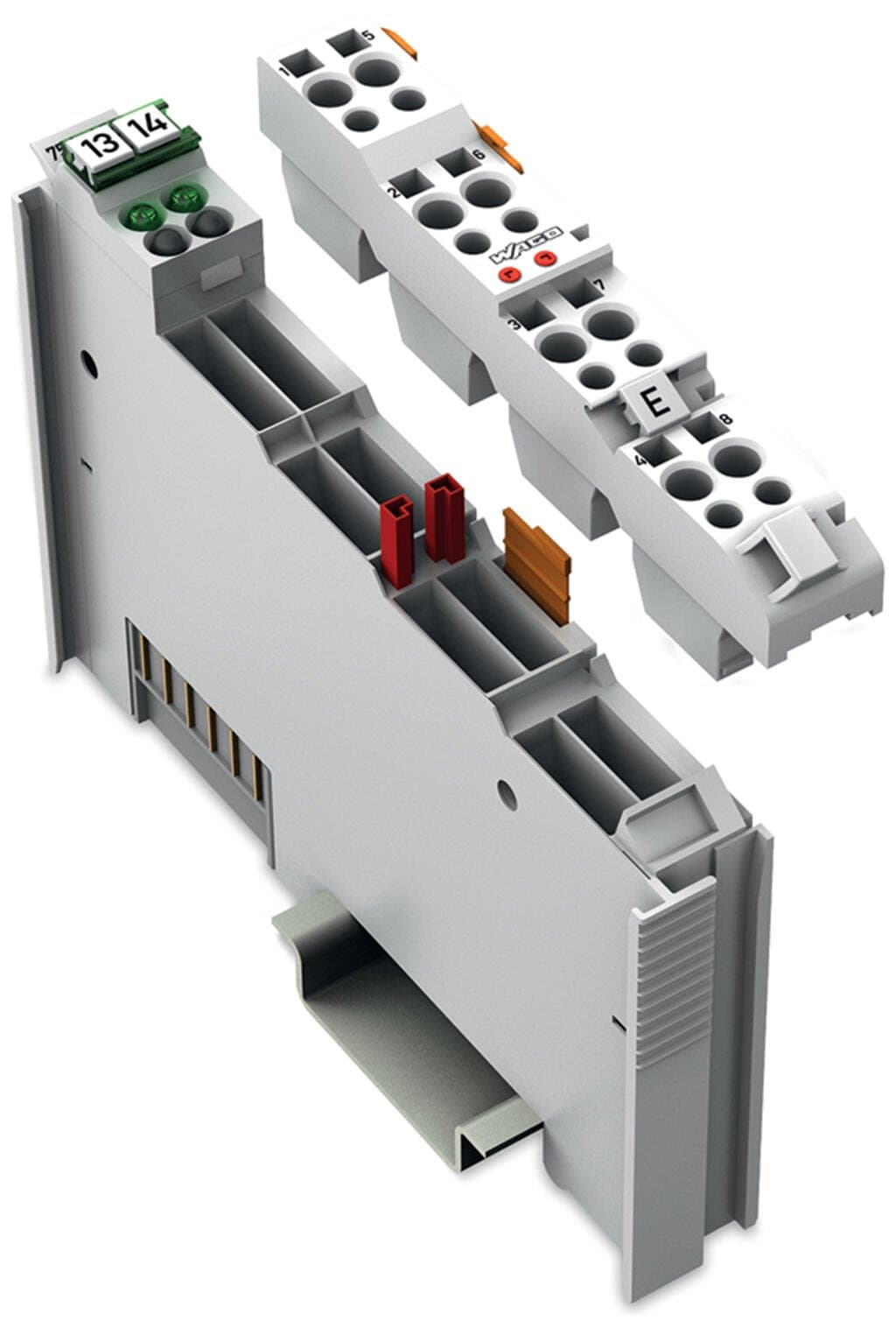

Product Model
753-467
Selling Points
- 1High-quality electrical connectors for reliable connections.
- 2Durable design for long-lasting performance in harsh environments.
- 3Easy installation with minimal tools required.
- 4Compatible with a wide range of industrial applications.
- 5Meets or exceeds industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Number of analog inputs | 2 |
Number of Channels | 2 | Signal type | Voltage |
Signal type (voltage) | 0 … 10?VDC | Sensor connection | 2 x (2-wire) |
Input voltage (max.) | 35 V | Signal characteristics | Single-ended |
Resolution [bit] | 12bits | Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
Internal resistance | 130kΩ | Conversion time (typ. ≤) | 2ms |
Measurement error, reference temperature | 25°C | Measurement error, deviation max (upper-range value) ≤± | 0.2% |
Temperature error max. (upper-range value) ≤± | 0.01%/K | Supply voltage (system) | 5?VDC;?via data contacts |
Current consumption (5 V system supply) | 60mA | Isolation | 500?V system/field |
Indicators | LED (A, C) green: Function AI 1, AI 2 | Connection technology: inputs / outputs | 6 x CAGE CLAMP? |
Connection type 1 | Inputs/Outputs | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69.8?mm?/ 2.748?inches | Depth from upper-edge of DIN-rail | 62.6?mm?/ 2.465?inches |
Mounting type | DIN-35 rail | Pluggable connector | Pluggable |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 0.882MJ | Weight | 40g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-01 | eCl@ss 9.0 | 27-24-26-01 |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454394486 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 17daabe6-8ae6-4530-b300-d57a9b24de41 | SCIP notification number (Belgium) | b3f1c3ad-5eb0-4578-bc0a-2f9bcef302d9 |
SCIP notification number (Bulgaria) | fca1075c-04c4-4bf1-a1d4-474daeb3a023 | SCIP notification number (Czech Republic) | e2e54317-76f8-4363-8c6c-03d65966f216 |
SCIP notification number (Denmark) | 2ea724bb-8a2b-4412-8677-dba87838dfe0 | SCIP notification number (Finland) | b29ded38-abed-431c-923a-2f37649a1bcd |
SCIP notification number (France) | 073a340c-d083-4b17-8f46-17425d5e36f0 | SCIP notification number (Germany) | fc29d354-7458-4a1a-9a1a-4a5f56d4209a |
SCIP notification number (Hungary) | 03f500ee-b556-4001-87d4-3defa3b8b88a | SCIP notification number (Italy) | 03f9e91b-277c-4b7e-8512-aef1c4087032 |
SCIP notification number (Netherlands) | 1e387295-0273-4e4d-8a62-4abd51925f18 | SCIP notification number (Poland) | 4c8b541a-aef1-4f18-9444-7ae27d3fdaa5 |
SCIP notification number (Romania) | 8bb4f35c-7280-47f5-9ac8-96a261f144e4 | SCIP notification number (Sweden) | 22695d31-16d7-4fa5-9e0f-409ef56e66e5 |
Specifications may be subject to change without notice
