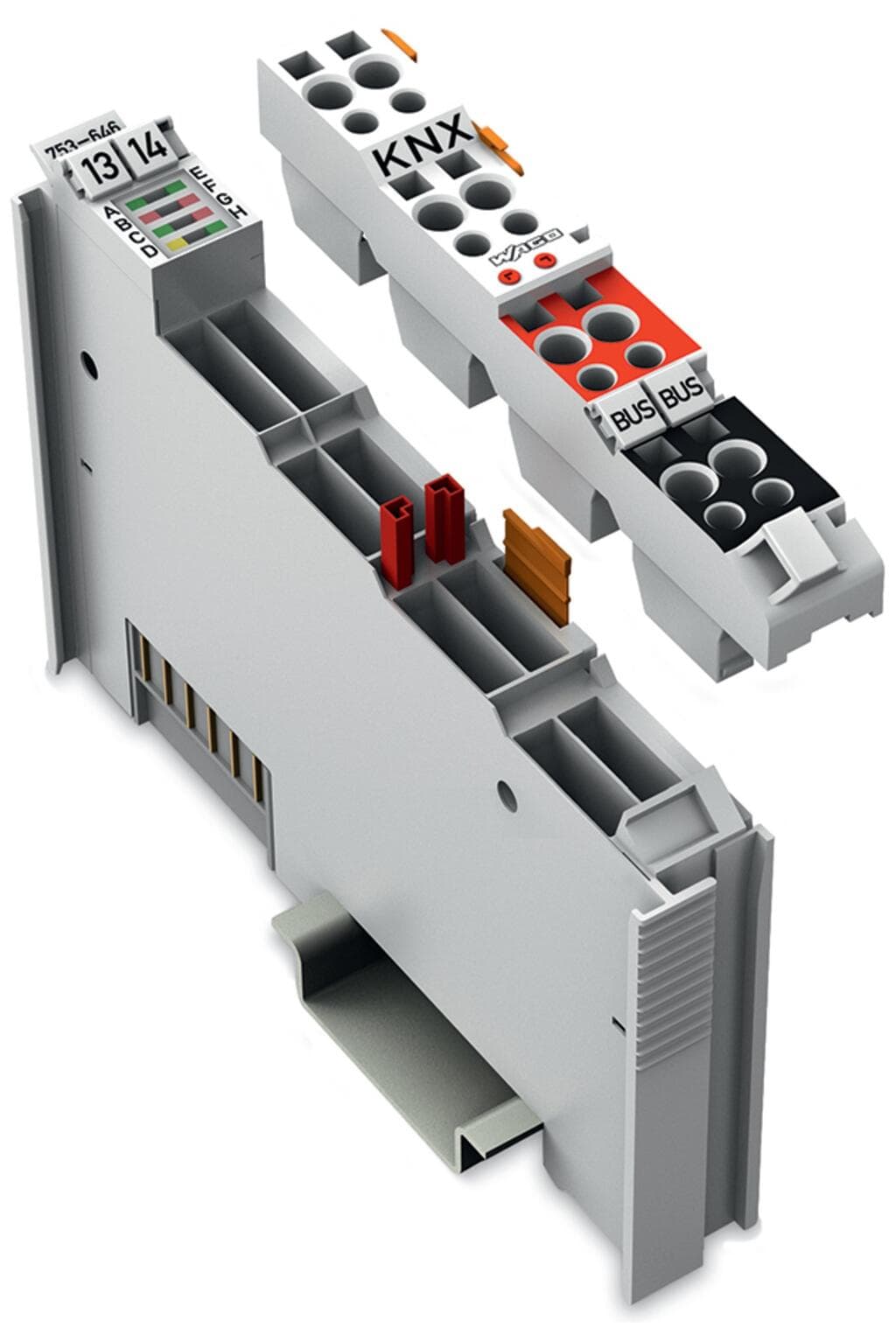

Product Model
753-646
Selling Points
- 1Connects to KNX/TP1 networks for seamless building automation integration.
- 2Supports up to 253 communication objects, 254 group addresses, and 254 associations.
- 3Operates on a 5Vdc supply voltage provided by the system.
- 4Equipped with 8 CAGE CLAMP spring connections for secure DIN rail mounting.
- 5Features an IP20 protection rating for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Device specification | KNX/TP1 bus specification: 1.0 | Device-specific | Number of group addresses: 254; Number of communication objects: 253; Number of associations: 254 |
Current consumption, typ. | 5 mA (KNX) | Transmission rate | 9.6 kBd ( (KNX)) |
Data width | 24 bytes | Supply voltage | KNX: via KNX power supply unit |
Commissioning | WAGO-I/O-PROV2.3 | Advanced diagnostics | via FbKNX_Master_646 function block (device mode) |
Supply voltage (system) | 5?VDC;?via data contacts | Current consumption (5 V system supply) | 25mA |
Isolation | 2.5 kV (rms) | Indicators | LED (A, C, E, H) green: router mode, data transfer, local bus, device mode, KNX bus voltage; LED (B, F, G) red: KNX programming mode, buffer overflow, internal error; LED (D) yellow: KNX data transfer |
Connection technology: inputs / outputs | 8 x CAGE CLAMP? | Connection type 1 | Inputs/Outputs |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Connection point (other) designation | Programming button; Bridge 2/6 |
Width | 12?mm?/ 0.472?inches | Height | 100?mm?/ 3.937?inches |
Depth | 69?mm?/ 2.717?inches | Depth from upper-edge of DIN-rail | 61.8?mm?/ 2.433?inches |
Mounting type | DIN-35 rail | Pluggable connector | Pluggable |
Color | light gray | Housing material | Polycarbonate; polyamide 6.6 |
Fire load | 1.044MJ | Weight | 55.9g |
Conformity marking | CE | Ambient temperature (operation) | 0 … +55 °C |
Ambient temperature (storage) | -40 … +85 °C | Protection type | IP20 |
Pollution degree | 2 per IEC 61131-2 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom | Relative humidity (without condensation) | 95% |
Vibration resistance | 4g per IEC 60068-2-6 | Shock resistance | 15g per IEC 60068-2-27 |
EMC immunity to interference | per EN 61000-6-2, marine applications | EMC emission of interference | per EN 61000-6-3, marine applications |
Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 | Permissible pollutant concentration H<sub>2</sub>S at a relative humidity < 75% | 10ppm |
Permissible pollutant concentration SO <sub> 2 </sub> at a relative humidity < 75% | 25ppm | Product Group | 15 (I/O System) |
eCl@ss 10.0 | 27-24-26-05 | eCl@ss 9.0 | 27-24-26-05 |
ETIM 9.0 | EC001601 | ETIM 8.0 | EC001601 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454778033 | Customs tariff number | 8538901000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | c4a73850-53c4-4d53-8fe0-f75ac132bdbf | SCIP notification number (Belgium) | 5275670d-2bae-4c07-9d73-57cef6482cac |
SCIP notification number (Bulgaria) | 94a656e9-db64-4976-9e8b-110852da7f08 | SCIP notification number (Czech Republic) | e0c806f4-4fff-428d-b625-3e4545fd06bf |
SCIP notification number (Denmark) | 486acf93-c004-4553-99b7-0067b7741d41 | SCIP notification number (Finland) | bd569f0c-cfc2-46e3-85c8-4d65e22ad594 |
SCIP notification number (France) | aa90f140-7c3a-413e-9eba-c0faaf9cbcea | SCIP notification number (Germany) | 1143e9db-6937-490a-a5a0-8dff86fbbe66 |
SCIP notification number (Hungary) | c4edfbc6-7c5d-4db0-9515-f5f7ebe382e7 | SCIP notification number (Italy) | 97801e87-e097-4c88-b142-b43d0a13ddff |
SCIP notification number (Netherlands) | c4a4ffaa-c5b8-4074-bc50-c805f00ed673 | SCIP notification number (Poland) | 663ff08d-6c29-44cc-bf3a-6a1a55d773c7 |
SCIP notification number (Romania) | d7daaa34-ef2a-49e9-b37b-811ffb0142e8 | SCIP notification number (Sweden) | 5f5a5cde-0874-4869-883b-e7e523237bbe |
Specifications may be subject to change without notice
