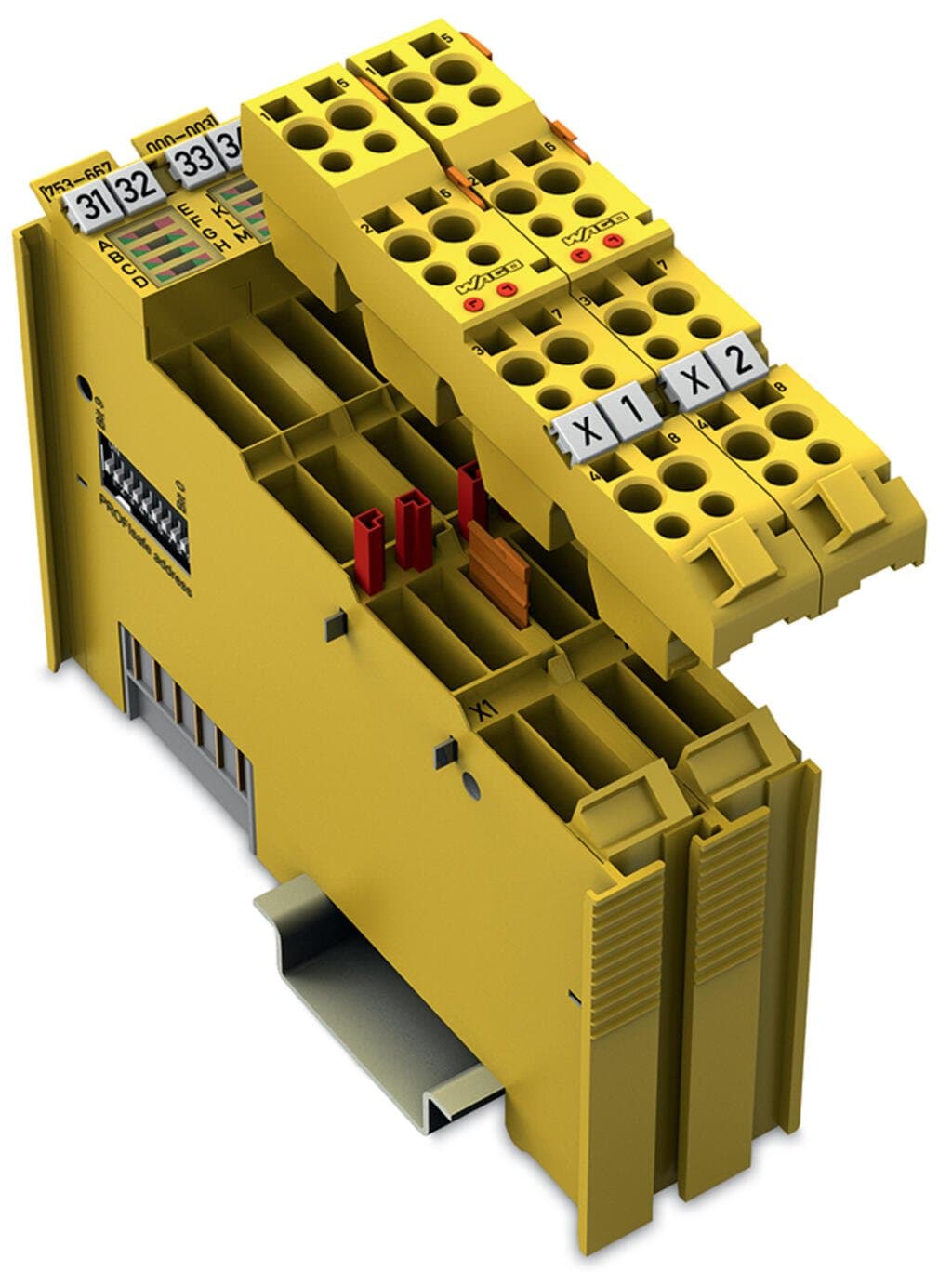

Product Model
753-667/000-003
Selling Points
- 1Ensures safe operation with automatic switching off in case of faults.
- 2Provides four digital inputs and four digital outputs for versatile connectivity.
- 3Supports 24VDC with a current rating of 2A per channel.
- 4Meets stringent safety standards for industrial automation.
- 5Monitors short-circuits, cross circuits, and 24V voltage supply for enhanced safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Pluggable connectors and coding fingers (753 Series) are not included. | Protocols | PROFIsafe V2 |
Configuration options | PROFIsafe address adjustable via DIP switch or engineering software | Indicators | LED (A-D) green/red: Status/Error I1 … I4; LED (I-M) green/red: Status/error O1 … O4; LED (E) red: Group error; LED (F-H) green/red: Diagnostics |
Number of Channels | 8 | Pluggable connector | pluggable |
Number of digital inputs | 4 | Signal type | Voltage |
Signal type (voltage) | 24 VDC | Sensor connection | 4 x (Fail-safe input with test pulse) |
Input characteristic | Clock sensitive | Input current per channel for signal (1) typ. | 2.2mA |
Signal frequency (max.) | 50Hz | Output current per channel | 2A |
Number of digital outputs | 4 | Output current | short-circuit-protected |
Output current (module) | 8A | Actuator connection | 4 x (fail-safe output with test pulse) |
Output circuit design | Power outputs | Switching frequency (max.) | 50 Hz; Resistive load |
Switching frequency (max.) (2) | 0.1 Hz; Inductive load | Capacitive load for each channel | O1 … O4; 2.2 μF |
Supply voltage (system) | 5 VDC; via data contacts | Current consumption (5 V system supply) | 180mA |
Supply voltage (field) | 24 VDC, SELV/PELV (-15 … +20 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) | Current consumption, field supply (module with no external load) | 20mA |
Number of incoming power jumper contacts | 2 | Number of outgoing power jumper contacts | 2 |
Current carrying capacity (power jumper contacts) | 10A | Isolation | 500 V system/field |
Achievable safety classes | SIL 3; Category 4, PL e | Safety standards | IEC 61508-1 … -7; EN ISO 13849-1; EN 62061 |
Test pulse duration (max.) | 500ms | Test pulse duration (min.) | 0ms |
Connection technology: inputs / outputs | 16 x CAGE CLAMP? | Connection type 1 | Inputs/outputs |
Solid conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG | Fine-stranded conductor | 0.08 … 2.5 mm2 / 28 … 14 AWG |
Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Width | 24 mm / 0.945 inches |
Height | 100 mm / 3.937 inches | Depth | 69 mm / 2.717 inches |
Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches | Mounting type | DIN-35 rail |
Product Group | 15 (I/O System) | eCl@ss 10.0 | 27-24-26-04 |
eCl@ss 9.0 | 27-24-26-04 | ETIM 9.0 | EC001599 |
ETIM 8.0 | EC001599 | ECCN | NO US CLASSIFICATION |
Customs tariff number | 8538901000 |
Specifications may be subject to change without notice
