Product Model
756-5201/030-010
Selling Points

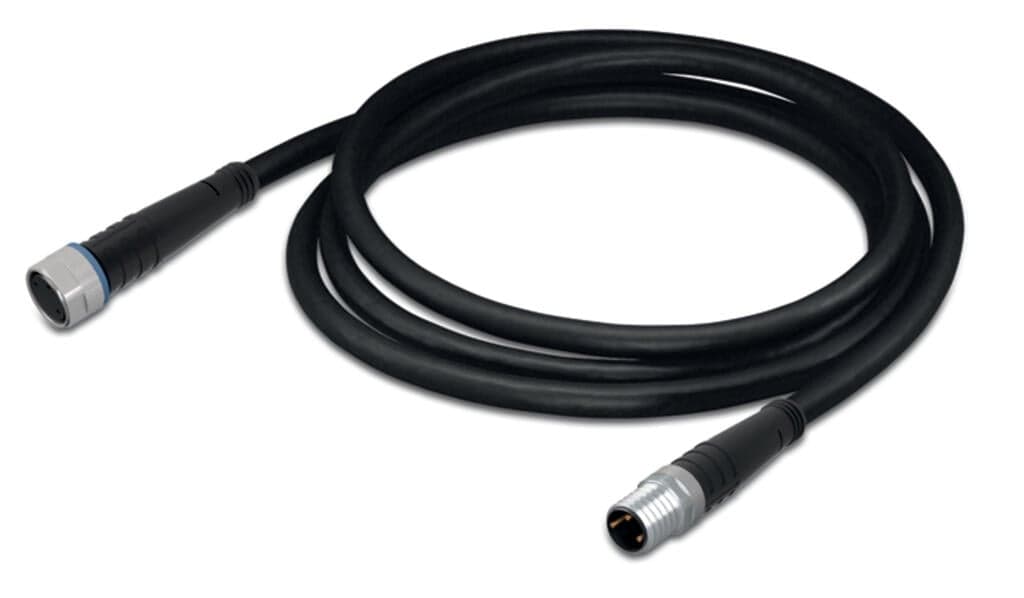

- 1Efficient Connectivity: Connect sensors and actuators quickly with the WAGO 756-5201/030-010 cable.
- 2M8 Socket and Plug: Fitted with M8 sockets and plugs for secure and reliable connections.
- 33-Pole Configuration: Designed for 3-pole applications, ensuring robust signal transmission.
- 41-Meter Length: Convenient 1-meter length for easy installation in various industrial settings.
- 5Durable Design: Built to withstand harsh environments, ensuring long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918974547 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2e6af981-9839-40c5-9fd9-bb60535eab29 | SCIP notification number (Belgium) | ba0cdcfb-a722-4cae-b7df-255f5ebf988e |
SCIP notification number (Bulgaria) | 1c981189-4187-4d51-bedd-2dd71b4228b6 | SCIP notification number (Czech Republic) | ac375306-9c5d-4dd3-8861-aa7ea7f1ec2f |
SCIP notification number (Denmark) | 6d6d83a4-f0af-41a2-9eca-b5a729dc8423 | SCIP notification number (Finland) | 62b176e9-b6d6-4847-9b3f-3588c35a21c0 |
SCIP notification number (France) | bb5b3ac4-95e4-4a89-964d-be18e13dbc26 | SCIP notification number (Germany) | a3ce71fe-c2ce-4fc8-9196-9869daed2715 |
SCIP notification number (Hungary) | cf9c9b90-780c-4dce-9f81-00ae4141a705 | SCIP notification number (Italy) | c8369c54-4431-4551-8223-658e59d059bd |
SCIP notification number (Netherlands) | 17869bb6-e00d-4728-9f0c-edccbe8e1b0b | SCIP notification number (Poland) | 94b09f84-fa02-4fc7-991e-c06f958e2b94 |
SCIP notification number (Romania) | a28a4820-95af-4ff2-9a70-89fb29403bae | SCIP notification number (Sweden) | e20412c6-c21d-44b2-9dc0-4720abbed45d |
Operating voltage | 60?VAC/DC | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M8 socket - M8 plug |
Number of poles | 3 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 0° | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
