Product Model
756-5203/030-010
Selling Points
- 1High-quality, halogen-free Polyurethane (PUR) sheath for enhanced safety and durability.
- 2Compatible with WAGO products, ensuring seamless integration in electrical and automation systems.

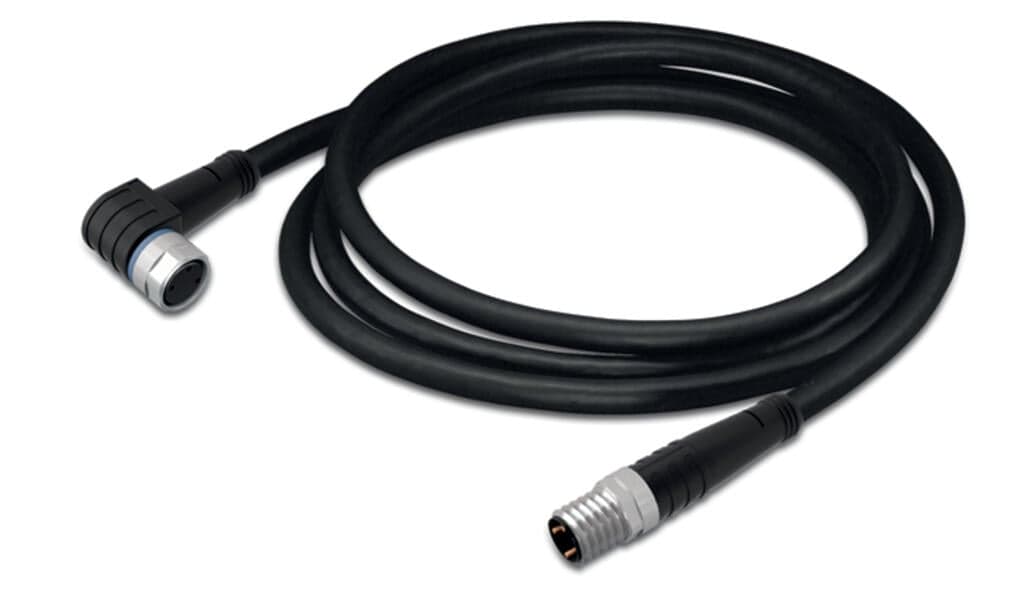

- 3Angled M8 socket and straight M8 plug for versatile connection options.
- 43-pole design for reliable signal transmission in industrial settings.
- 5Compliant with DIN VDE 0472 Part 815 and IEC 332-2 standards for flame resistance and surge protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918974615 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 205f30f8-5cb7-4039-9eaa-b6acb15193db | SCIP notification number (Belgium) | 2f1f977b-a8e3-449b-ac9d-de91e4ae703c |
SCIP notification number (Bulgaria) | a93249db-339b-43bc-a888-1c252229182e | SCIP notification number (Czech Republic) | e4c41d2d-133a-4ada-839b-827a464c088f |
SCIP notification number (Denmark) | c219f8ba-03ef-43a7-a1ae-3d40b6c3d63d | SCIP notification number (Finland) | 736c9dee-e371-4882-898f-1d9cd17f6613 |
SCIP notification number (France) | a2104078-2c53-4fd1-94e9-c3a7d1c7b8cd | SCIP notification number (Germany) | 314d9163-7d31-43c7-a2bf-b345b074dfae |
SCIP notification number (Hungary) | 4b1fb041-8be0-4e51-8db9-9ad031ebb3a3 | SCIP notification number (Italy) | 2235e3eb-ff67-4adf-9688-015e21975037 |
SCIP notification number (Netherlands) | 185900ea-20a1-40d2-8a66-4c66c43b8b18 | SCIP notification number (Poland) | a4261604-7642-4c63-8912-a3dbd9a01ebb |
SCIP notification number (Romania) | 8145f7ce-a6a6-4875-9a25-027f6826cbfc | SCIP notification number (Sweden) | 3d5d1afb-d6f2-4338-b990-647081b33e1e |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M8 socket - M8 plug |
Number of poles | 3 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 0° | Housing material | Polyurethane (PUR) |
Contact material | CuSn | Tightening torque | 0.6?Nm |
Specifications may be subject to change without notice
