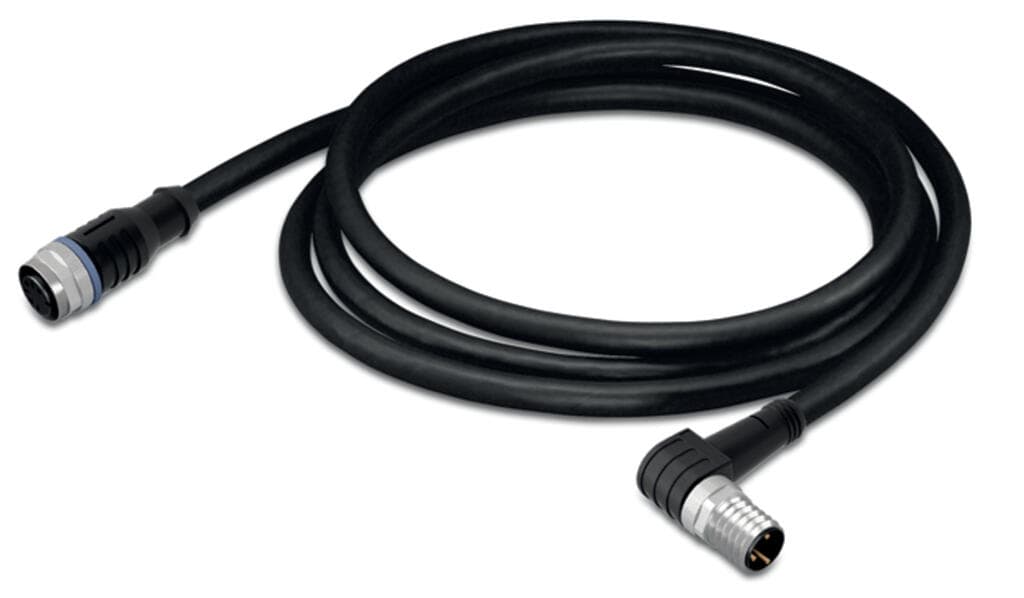

Product Model
756-5502/030-010
Selling Points
- 1Made from PUR, halogen-free material for excellent resistance to microbes, hydrolysis, oil, chemicals, and UV radiation.
- 2Suitable for drag chains and provides good chemical resistance.
- 33-pole design ensures reliable connections in industrial applications.
- 4Fitted with M12A socket and M8 plug for versatile connectivity options.
- 5Manufactured by WAGO, a trusted brand in industrial automation solutions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918974769 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 571f2937-1635-4ef8-9388-2777db7a0628 | SCIP notification number (Belgium) | 70e1dbdf-3593-4e0b-bb29-e24220808ab7 |
SCIP notification number (Bulgaria) | c44f51a8-fe11-42c1-9536-de5c6bfe17b4 | SCIP notification number (Czech Republic) | 354e03ec-1eb0-4494-8fd7-7271926e780f |
SCIP notification number (Denmark) | 2b97e565-3b79-4425-8101-a0ccf7288bf4 | SCIP notification number (Finland) | ce89dc46-42ec-452a-95b6-7f47710419d8 |
SCIP notification number (France) | 85f9191b-8fe3-424d-8d73-6b8fc38e6117 | SCIP notification number (Germany) | cc7b86fa-5745-4a2b-8047-8b61c9f1e3c8 |
SCIP notification number (Hungary) | bceab832-812a-4297-9df6-b3820b17624b | SCIP notification number (Italy) | ee5ed388-e506-4b10-ae62-ce34b6bfbb92 |
SCIP notification number (Netherlands) | 6dade569-cb22-407b-bcf3-bbf471ffebf2 | SCIP notification number (Poland) | 85cf7bc4-025b-4c76-a341-0add37e61c92 |
SCIP notification number (Romania) | 40224392-ec41-452f-bfe8-dafebec7bba6 | SCIP notification number (Sweden) | 3e32b527-2592-424c-be56-8b8cbe7f372d |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M12 Socket - M8 plug |
Number of poles | 3 | Cable connection direction to mating direction | 0° |
Cable connection direction to mating direction (2) | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 0.6 … 1?Nm |
Specifications may be subject to change without notice
