Product Model
756-5504/030-010
Selling Points

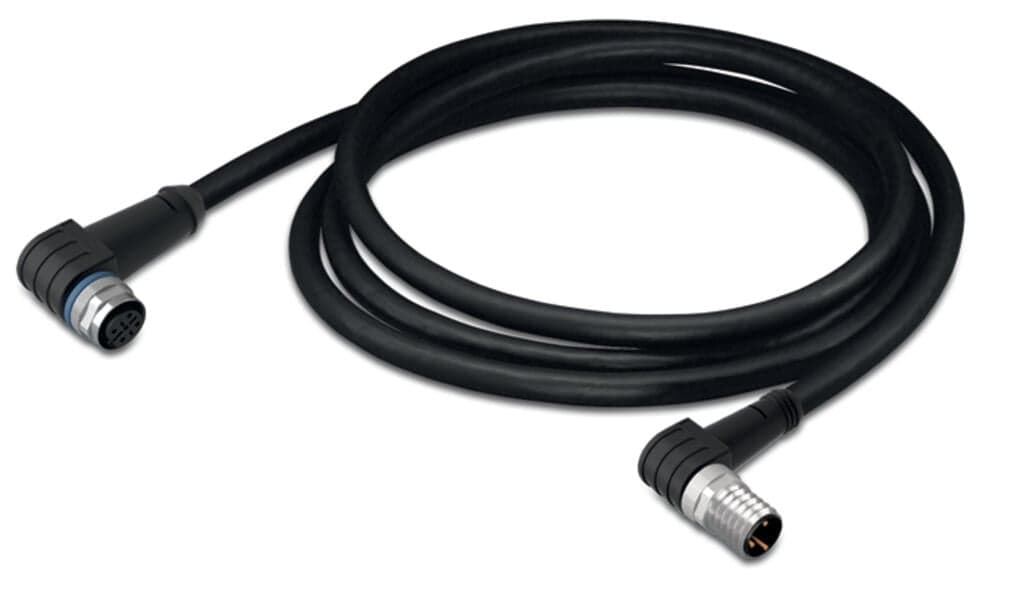

- 1High-Quality Connectivity Solution: The WAGO 756-5504/030-010 sensor/actuator cable ensures reliable and efficient communication in industrial automation.
- 2Halogen-Free and UV Resistant: Made from polyurethane (PUR), this cable is halogen-free and resistant to UV radiation, microbes, hydrolysis, oil, and chemicals.
- 3Angled M12 Socket and M8 Plug: The angled connectors provide easy access and reduce strain on the cable, ensuring a secure connection.
- 4Operates in Harsh Environments: With an operating temperature range of -25°C to +90°C, this cable is suitable for use in various industrial settings.
- 5Compliant with Industrial Standards: Meets or exceeds standards for ambient operating temperature, bending cycles, and protection type (IP67).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
eCl@ss 10.0 | 27-06-03-11 | eCl@ss 9.0 | 27-06-03-11 |
ETIM 9.0 | EC001855 | ETIM 8.0 | EC001855 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4044918974844 | Customs tariff number | 8544429090 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 476103e7-251b-49c1-bb45-e5c051eb6105 | SCIP notification number (Belgium) | 434aa30e-afc3-493e-ac07-b903e70bec5d |
SCIP notification number (Bulgaria) | 11e020ba-6f3e-43c1-a87a-fda9324ab8c8 | SCIP notification number (Czech Republic) | 96178905-00b9-42e0-bef0-f2f88e1b9ba8 |
SCIP notification number (Denmark) | f60312fd-61fa-465d-810e-cc026ca352cb | SCIP notification number (Finland) | dd25563c-1680-4b6f-a13c-9cdb41bc7f90 |
SCIP notification number (France) | c547ae65-7b12-4124-99ea-9ceedcc00fff | SCIP notification number (Germany) | cca9a524-a475-460e-be11-cc304185cf85 |
SCIP notification number (Hungary) | 52138419-fead-4fab-a863-8f51e8384660 | SCIP notification number (Italy) | e1a0a190-a02a-4af7-9f42-7c8432634257 |
SCIP notification number (Netherlands) | 2ab136e8-3146-49a0-a308-bb2f1568517f | SCIP notification number (Poland) | 96399986-a646-48c5-9ceb-c8a4268bf9d4 |
SCIP notification number (Romania) | 9bfeede5-ad41-4e16-8179-4d8471e80c68 | SCIP notification number (Sweden) | 0216b120-47f9-48cf-a204-f01a228a2f60 |
Operating voltage | AC/DC 60 V | Operating current | 4A |
Rated surge voltage | 1.5?kV | Insulation resistance | >109Ω |
Contact resistance | 10mΩ | Conductor resistance | ≤ 60 Ω/km |
Pollution degree | 3 per VDE 0110 | Protection type | IP67 |
Ambient (operating) temperature (static) | -50 … +90 °C | Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Bending radius | 10 x cable diameter (min.) | Bending cycles | 2Mio. |
Acceleration (min.) | 5 | Travel speed (max.) | 3.33 |
Travel path (horizontal) max. | 5 | Travel path (vertical) max. | 2 |
Torsional capacity | 180 | Cable length | 1m |
Type code | LiF9YH-11YH or LiF9YC11YFHF | Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
Conductor insulation | PP9Y (halogen-free) | Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
Sheathed cable color | black | Connection type | M12 Socket - M8 plug |
Number of poles | 3 | Cable connection direction to mating direction | 90° |
Cable connection direction to mating direction (2) | 90° | Connector interface coding (cable/adapter) 1 1 | A-coded |
Housing material | Polyurethane (PUR) | Contact material | CuSn |
Tightening torque | 0.6 … 1?Nm |
