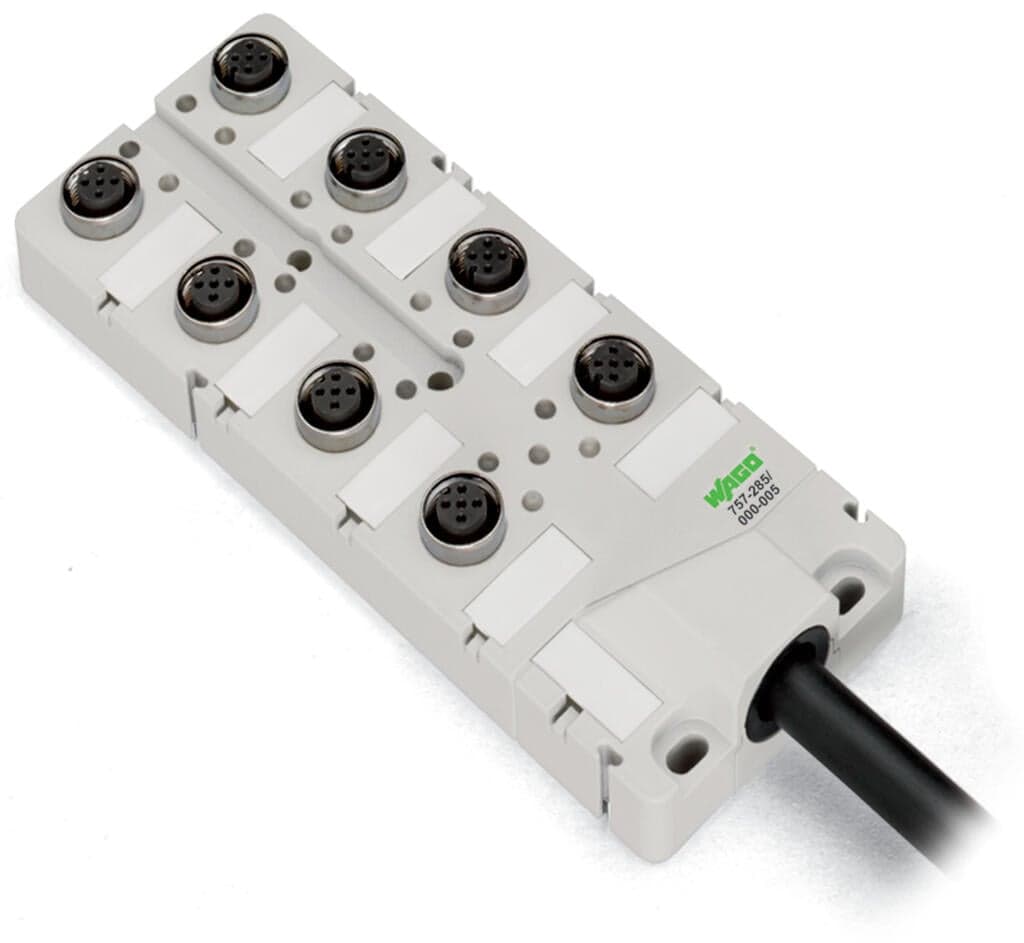

Product Model
757-244/000-010
Selling Points
- 14-way, 4-pole M12 connectors ensure reliable signal transmission.
- 2Fully encapsulated with conformal coating, providing 72 hours of underwater protection.
- 3Suitable for various industrial applications, including decentralized connection technology.
- 4Green and yellow LED indicators for easy status monitoring.
- 5Made from halogen-free PA66, ensuring long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Contact resistance (max.) | 0.01Ω | Supply voltage | 10 … 30?VDC;?Rated voltage: 32 V ~ rms |
Current carrying capacity (signal connections) | 2A | Current carrying capacity (supply connections) | 9A |
Rated value of electrical isolation | 500V | Functionally separated potential groups | Kontakt/Kontakt |
Insulation resistance | >109Ω | Signal characteristics | PNP |
Indicators | LED (A) yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status | Connection technology: inputs / outputs | 4 x M12 socket; 4-pole; incl. ground |
Connection technology: trunk cable | 1 x Fixed connecting cable | Length of connection cable | 10m |
Strip length | 100?mm?/ 3.94?inches | Wire colors | white, green, yellow, gray, green/yellow, brown, blue |
Cable design | Wire cross-section:?0.34?mm2;?Wire cross-section (2):?1?mm2 | Width | 60?mm?/ 2.362?inches |
Height | 26?mm?/ 1.024?inches | Depth | 117?mm?/ 4.606?inches |
Mounting type | Screw mounting | Weight | 988g |
Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free | Halogen-free | Yes |
Bending radius | 10 x cable diameter (min.) for flexible application | Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
Sheath material | PUR | Sheathed cable color | black |
Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) | Ambient temperature (operation) | -25 … +80 °C |
Ambient (operating) temperature (dynamic) | -5 … +80 °C | Ambient (operating) temperature (static) | -40 … +90 °C |
Protection type | IP68 | Note on protection type | 72 h at a depth of 1 m under water per EN 60529 in the fully locked position with its plugs or protective caps |
Pollution degree | 3 per VDE 0110 | Vibration resistance | per IEC 60068-2-6 |
Shock resistance | per IEC 60068-2-27 | Product Group | 23 (I/O passive and accessories) |
eCl@ss 10.0 | 27-44-01-08 | eCl@ss 9.0 | 27-44-01-08 |
ETIM 9.0 | EC002585 | ETIM 8.0 | EC002585 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454028282 | Customs tariff number | 8536698000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | a3929a91-faa3-4eda-a41d-9c6bd9473d6f | SCIP notification number (Belgium) | 829e7725-9eeb-4803-8587-922c9be14ac6 |
SCIP notification number (Bulgaria) | ec886539-e203-4916-89ec-cfea053df5a7 | SCIP notification number (Czech Republic) | 87dfbb59-6ee3-494f-99e7-9f95557c1876 |
SCIP notification number (Denmark) | a79fb81e-cdd8-4e02-9f60-ce0e2492395a | SCIP notification number (Finland) | f63f84c2-ea02-447d-b462-9534c2bff76b |
SCIP notification number (France) | 0bb898e3-4def-4e42-b6bd-bda3475090e7 | SCIP notification number (Germany) | f80f9f95-38bd-4815-b355-472e174ceb43 |
SCIP notification number (Hungary) | 23bec2a2-12da-46de-8ac6-8ac707513a74 | SCIP notification number (Italy) | 80de0836-9a0f-4f8d-bc19-c7582b28557f |
SCIP notification number (Netherlands) | ac5f637a-e76f-4baa-9226-81829e08f852 | SCIP notification number (Poland) | 0fc71859-356a-4820-b196-ea7ea5e70b7f |
SCIP notification number (Romania) | c5958a5f-4b2a-4675-bda5-2308492180d4 | SCIP notification number (Sweden) | 408c9a5e-70f9-4237-abbe-a1d4067a7a5c |
Specifications may be subject to change without notice
