Product Model

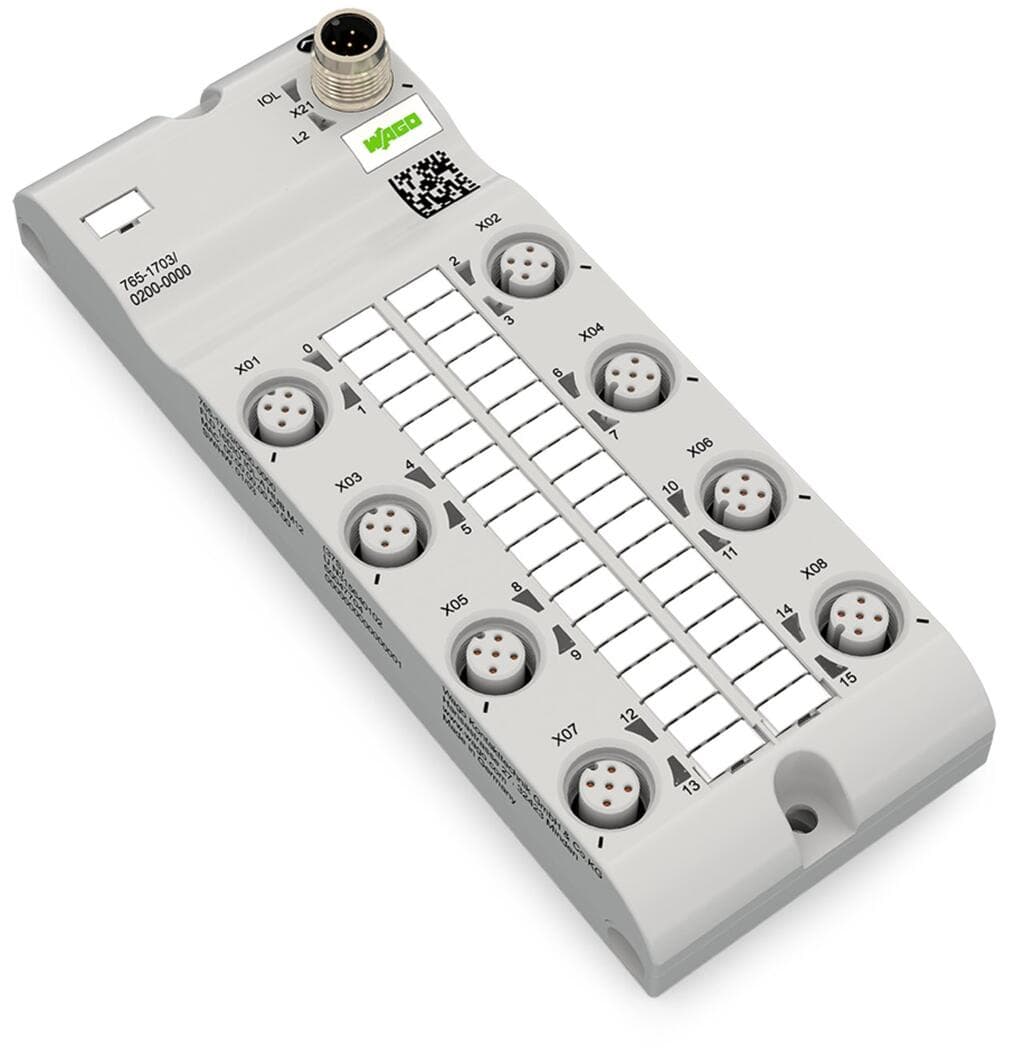

765-1703/200-000
Selling Points
- 1High-reliability design for mission-critical applications
- 2Easy installation with minimal wiring effort
- 3Robust performance in harsh industrial environments
- 4Compact and space-saving design for efficient use
- 5Compatible with a wide range of industrial control systems
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60?mm?/ 2.362?inches | Height | 30?mm?/ 1.181?inches |
Depth | 158.5?mm?/ 6.24?inches | Weight | 170g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Vibration resistance | 5g per IEC 60068-2-6 | Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143949989 | Customs tariff number | 8537109170 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 751f4ea3-f9d4-4d9d-a8f9-ae249b078e8b | SCIP notification number (Belgium) | 980ab4ca-1025-4821-8584-8b06c37f34ae |
SCIP notification number (Bulgaria) | a9d935ad-3d8f-4636-aff6-734ffd8c2e29 | SCIP notification number (Czech Republic) | c61f9664-e21b-495b-a263-9ef0da3625cb |
SCIP notification number (Denmark) | f70a939b-697f-417a-b6b1-e2b66410dc23 | SCIP notification number (Finland) | 758e8f4e-0304-4ebc-ab7b-10a079bc6743 |
SCIP notification number (France) | 1475125a-a785-4483-8cf2-998df0b924fc | SCIP notification number (Germany) | 39315bbd-8fc2-4304-88b3-d1ad24ae4721 |
SCIP notification number (Hungary) | d15acdb9-88b8-4a77-aa3c-60fb00f1ebae | SCIP notification number (Italy) | 10810b13-b776-4000-9904-3ef3a72ad3b3 |
SCIP notification number (Netherlands) | d3f47be1-8eea-4db6-bf9d-b1419f081622 | SCIP notification number (Poland) | 11943c7f-4240-4b6b-83f8-1fec45661b58 |
SCIP notification number (Romania) | 82142c4f-4997-4a78-93b9-5140e0772bd1 | SCIP notification number (Sweden) | 5698e619-1290-411e-b140-cf57d61846ae |
Communications | IO-Link slave (class A) | Connection technology: communication/fieldbus | 1 x A-coded M12; 5-pole |
Parameter | Input filter | Diagnostics | Undervoltage; overcurrent; overload; overtemperature |
Number of digital inputs | 16 | Number of digital outputs | 16 |
Connection technology: inputs / outputs | 8 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2?A | Connection technology: supply | 1 x A-coded M12; 5-pole; via IO-Link port (1L) |
Supply voltage | 24?VDC (18 … 31.2?V);?1L | Current consumption (max.) | 4000mA |
Current consumption (note) | 1L: 0.2 A + load current | Reverse voltage protection | Yes |
Specifications may be subject to change without notice
