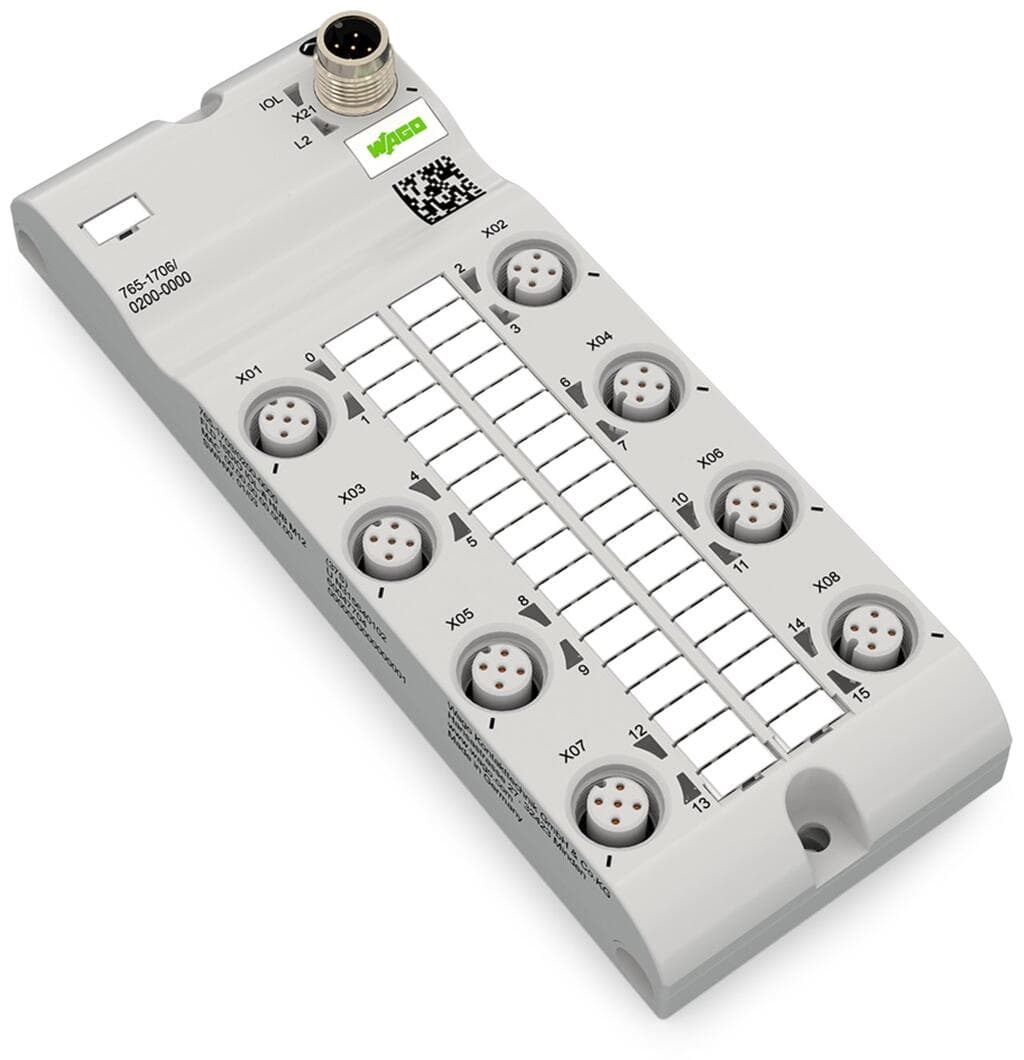

Product Model
765-1706/200-000
Selling Points
- 116-Channel Digital Input/Output: Supports 16 digital inputs and outputs for versatile signal processing.
- 2IO-Link Class B Hub: Enables direct access to process and diagnostic data, enhancing real-time monitoring.
- 3DC 24 V / 2.0 A Power: Reliable operation with a robust power supply, suitable for various industrial environments.
- 48x M12 Connection: Versatile connectivity options with eight 5-pin A-coded M12 connectors for easy integration.
- 5IP67 Protection Rating: Durable and resistant to harsh industrial conditions, ensuring long-term reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 60?mm?/ 2.362?inches | Height | 30?mm?/ 1.181?inches |
Depth | 158.5?mm?/ 6.24?inches | Weight | 170g |
Conformity marking | CE | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -40 … +80 °C | Protection type | IP67 |
Protection class | III per EN 61140, IEC 61140, VDE 0140-1 | Operating altitude | 0 … 2000?m / 0 … 6562 ft |
Pollution degree | 3 (EN 60664-1) | Overvoltage category | II (EN 60664-1) |
Vibration resistance | 5g per IEC 60068-2-6 | Shock resistance | Short-term: 50g/11?ms/half-sine per IEC 60068-2-27; Long-term: 30g/6?ms/half-sine per IEC 60068-2-29 |
EMC immunity to interference | per EN 61000-6-2 | EMC emission of interference | per EN 61000-6-4 |
ETIM 9.0 | EC001599 | ETIM 8.0 | EC001599 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4055143949873 | Customs tariff number | 8537109170 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 2dde3cf6-cfd0-46d7-9a57-e8841864fa82 | SCIP notification number (Belgium) | 344c7f8b-f39c-427c-a3ee-4f69e39404a8 |
SCIP notification number (Bulgaria) | 4e3dd708-ac81-4510-ade5-c12b7e092023 | SCIP notification number (Czech Republic) | b1459229-d71c-4e96-b514-23ac50aa4edd |
SCIP notification number (Denmark) | 1f6413ec-b2b1-4f26-bd7f-efce47f6d600 | SCIP notification number (Finland) | c9cd5549-ce37-4172-b925-0096dbbc8c4d |
SCIP notification number (France) | 24b70ad0-42ee-4bd3-9fe6-27643d72681f | SCIP notification number (Germany) | 413b0d64-1a89-46e2-bc13-7c6dc50a8b27 |
SCIP notification number (Hungary) | c75d7529-1f8d-4acc-8d4c-217332858a58 | SCIP notification number (Italy) | 309e105a-69f5-43c2-9172-de5621066951 |
SCIP notification number (Netherlands) | 36545f06-fd07-4607-96fc-52cfb286e6a8 | SCIP notification number (Poland) | e099c544-662d-4ec6-849e-f782cc5c3aac |
SCIP notification number (Romania) | 6910ad77-bf51-4936-af96-a2c707b388d2 | SCIP notification number (Sweden) | b0d8db13-249a-4e25-9589-02e832888b27 |
Communications | IO-Link slave (class B) | Connection technology: communication/fieldbus | 1 x A-coded M12; 5-pole |
Parameter | Input filter | Diagnostics | Undervoltage; overcurrent; overload; overtemperature |
Number of digital inputs | 16 | Number of digital outputs | 16 |
Connection technology: inputs / outputs | 8 x A-coded M12; 5-pole | Signal type (voltage) | 24?VDC |
Input characteristic | Type 3, per IEC 61131-2 | Input filter | 0.2 … 20 ms |
Output current (per channel) | 2?A | Connection technology: supply | 1 x A-coded M12; 5-pole; via IO-Link port (1L/2L) |
Supply voltage | 24?VDC (18 … 31.2?V);?1L/2L | Current consumption (max.) | 4000mA |
Current consumption (note) | 1L: 0.2 A; 2L: 0.1 A; + load current | Reverse voltage protection | Yes |
