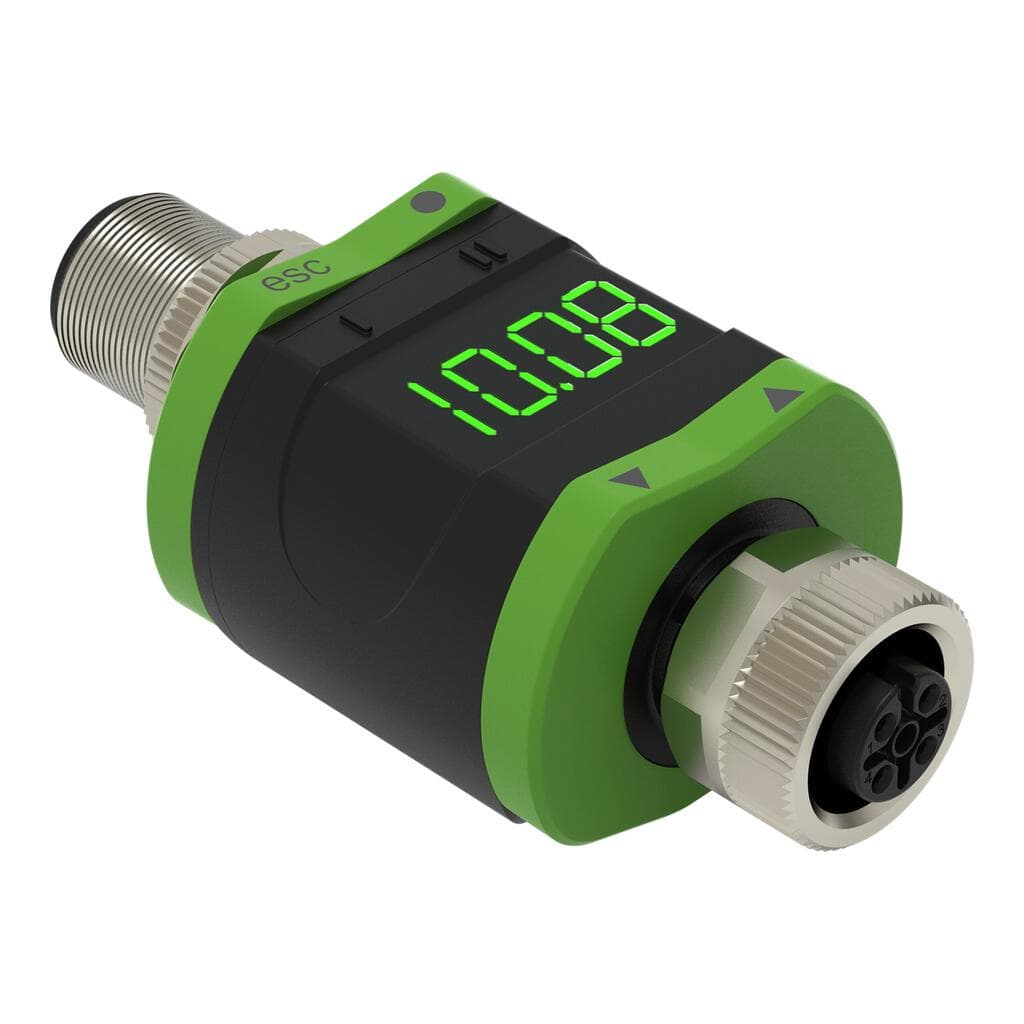

Product Model
765-2701/200-000
Selling Points
- 1Compact and Economical Solution: Ideal for incorporating conventional analog sensors with IO Link communications.
- 2IP67 Rated: Durable and resistant to harsh environments.
- 3Digital Display: Reports measure value configured with two-point scaling.
- 4IO Link Compatibility: Requires an IO Link-capable module for interoperation.
- 5Versatile Application: Suitable for decentralized display, preprocessing, and conversion of analog signals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Length of connection cables: 30 m without IO-Link on each side; 20 m with IO-Link on the master side | Connection technology: inputs / outputs | 1 x M12-A socket; 5-pole (inputs); 1 x M12-A plug; 4-pole (outputs, IO-Link) |
Width | 30 mm | Height | 63 mm |
Depth | 24 mm | Weight | 108g |
Housing material | PA | Ambient temperature (operation) | -20 … +60 °C (70 °C with display switched off) |
Ambient temperature (storage) | -25 … +70 °C | Protection type | IP67 |
Operating altitude | 0 … 2000 m / 0 … 6562 ft | Pollution degree | 3 |
Conformity marking | CE; UKCA | MTTF | 373years |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Bag | Country of origin | TW |
Customs tariff number | 85176200000 | RoHS Compliance Status | Compliant,No Exemption |
Supply voltage | 24 VDC (18 … 30 V) | Power consumption (typ.) (24 V) | 1W |
Operating mode | SIO; IO-Link | Accuracy (+25 °C) | Analog input/analog output: 0.5 % of the upper-range value |
Indicators | Digital output: 1 x yellow LED; Power: 1 x green LED; Display: 7-segment red/green LED | Number of analog inputs | 1 |
Input signal (A) | 4 … 20 mA | Sensor supply | 24 VDC |
Sensor current (per channel) max. | 0.8A | Number of digital outputs | 1 |
Number of analog outputs | 1 | Signal type (voltage) | 10 … 30 VDC |
Signal type (current) | 4 … 20 mA | Current carrying capacity per output | 50mA |
Output circuit design | Make/break contact; parameterizable | Resolution of analog outputs | 10bits |
Communications | IO-Link Class A | Transmission modes | COM2 (38.4 kBaud) |
IO-Link version | 1.1 | Process data | 1 x 16-bit IN (analog); 1 x 16-bit IN (digital) |
Cycle time | 3.2 ms (min.) | Parameterizable functions | Operating mode, switching point, delay, scaling, etc. |
Specifications may be subject to change without notice
