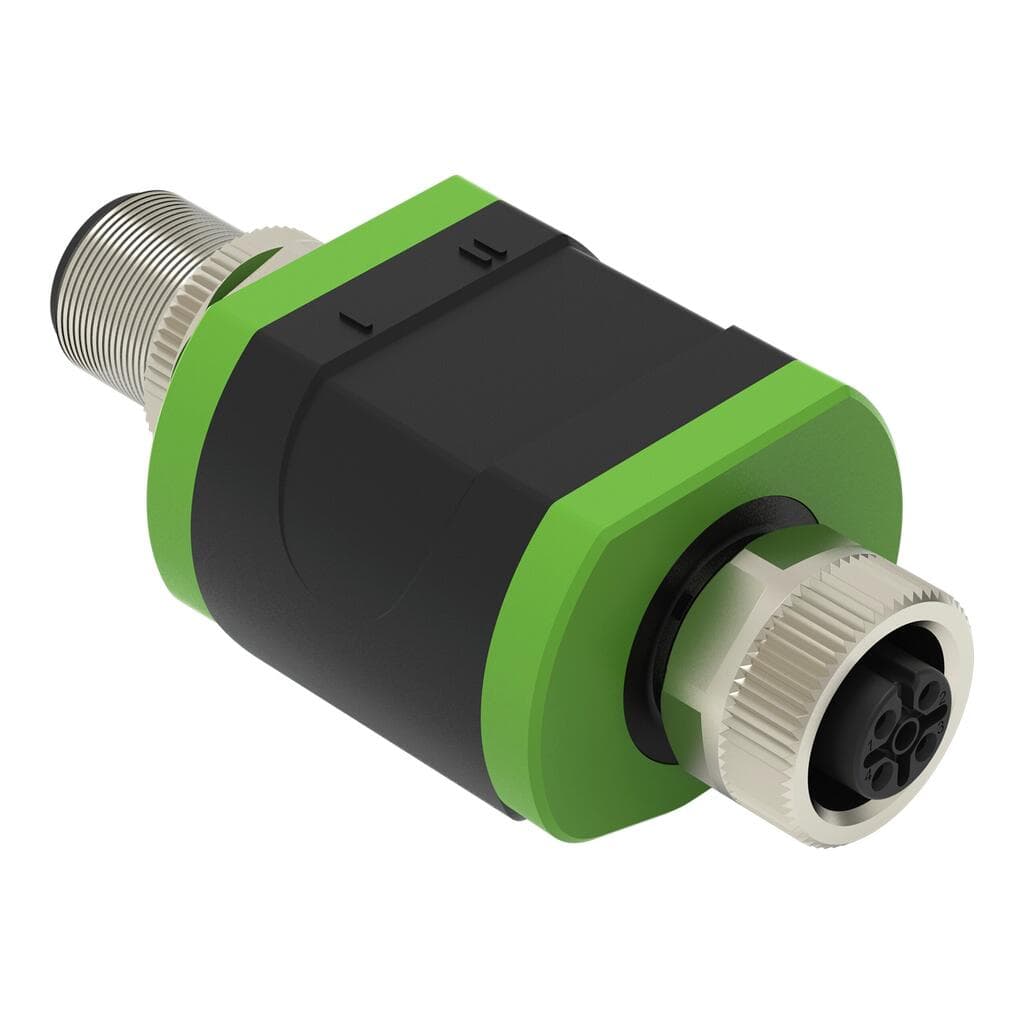

Product Model
765-2703/200-000
Selling Points
- 1IP67 rated for durability in harsh environments.
- 20.25% accuracy for precise analog output.
- 3Supports IO-Link Class A/B with version 1.1 for seamless integration.
- 4Adjustable operating mode, switching points, and scaling for customization.
- 52x M12 connections for reliable signal transmission.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Length of connection cables: 20 m | Connection technology: inputs / outputs | 1 x M12-A socket; 5-pole (outputs, double assignment); 1 x M12-A plug; 4-pole (IO-Link) |
Width | 30 mm | Height | 63 mm |
Depth | 24 mm | Weight | 91.5g |
Housing material | PA | Ambient temperature (operation) | -25 … +70 °C |
Ambient temperature (storage) | -25 … +70 °C | Protection type | IP67 |
Operating altitude | 0 … 4000 m | Pollution degree | 2 |
Conformity marking | CE; UKCA | MTTF | 352years |
ETIM 9.0 | EC001596 | ETIM 8.0 | EC001596 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Box | Country of origin | DE |
Customs tariff number | 85176200000 | RoHS Compliance Status | Compliant,No Exemption |
Signal type | Current | Parameterizable functions | Application-specific identifier; system identifier; location identifier |
Supply voltage | 24 VDC (18 … 30 V) | Current consumption (max.) | 300mA |
Operating mode | IO-Link | Accuracy (+25 °C) | 0.25 % of output range end value |
Indicators | Analog output: 2 x yellow LED; Power: 1 x green LED | Number of analog outputs | 2 |
Signal type (current) | 4 … 20 mA | Load impedance (current output) | ≤ 300 Ω |
Communications | IO-Link Class A/B | Transmission modes | COM2 (38.4 kBaud) |
IO-Link version | 1.1 | Process data | 2 x 16-bit OUT (analog) |
Cycle time | 3.6 ms (min.) |
Specifications may be subject to change without notice
