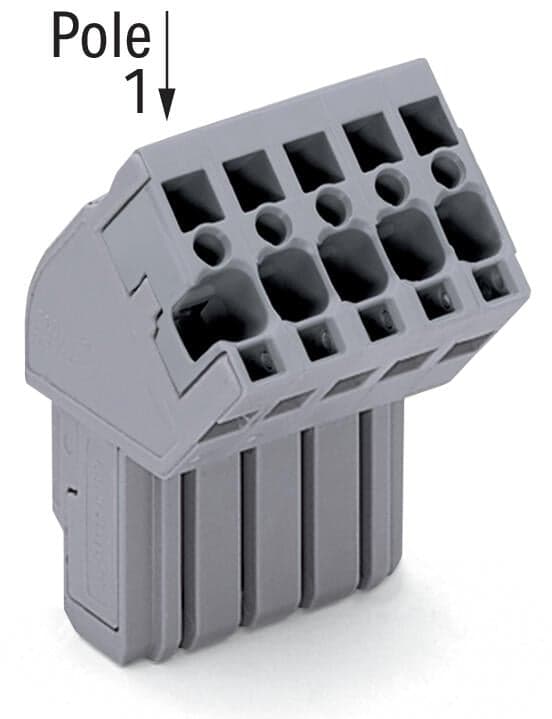

Product Model
769-105/022-000
Selling Points
- 1High-Quality CAGE CLAMP Technology: Secure and reliable connection with CAGE CLAMP spring connections.
- 25-Pole Design: Supports five potentials with five clamping points for efficient wiring.
- 34mm² Nominal Cross-Section: Compatible with wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 4Gray Polyamide Housing: Insulated with polyamide (PA66) for enhanced safety and durability.
- 5ROHS Compliant: Meets environmental standards, ensuring compliance with RoHS regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 5 |
Total number of potentials | 5 | Width | 25?mm?/ 0.984?inches |
Height | 37.1?mm?/ 1.461?inches | Depth | 26.5?mm?/ 1.043?inches |
Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.29MJ | Halogen-free | Yes |
Weight | 12.4g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4044918547567 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 61984 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 5 |
Wiring direction | Front-entry wiring | Conductor entry direction to mating direction | 45° |
Specifications may be subject to change without notice
