Product Model

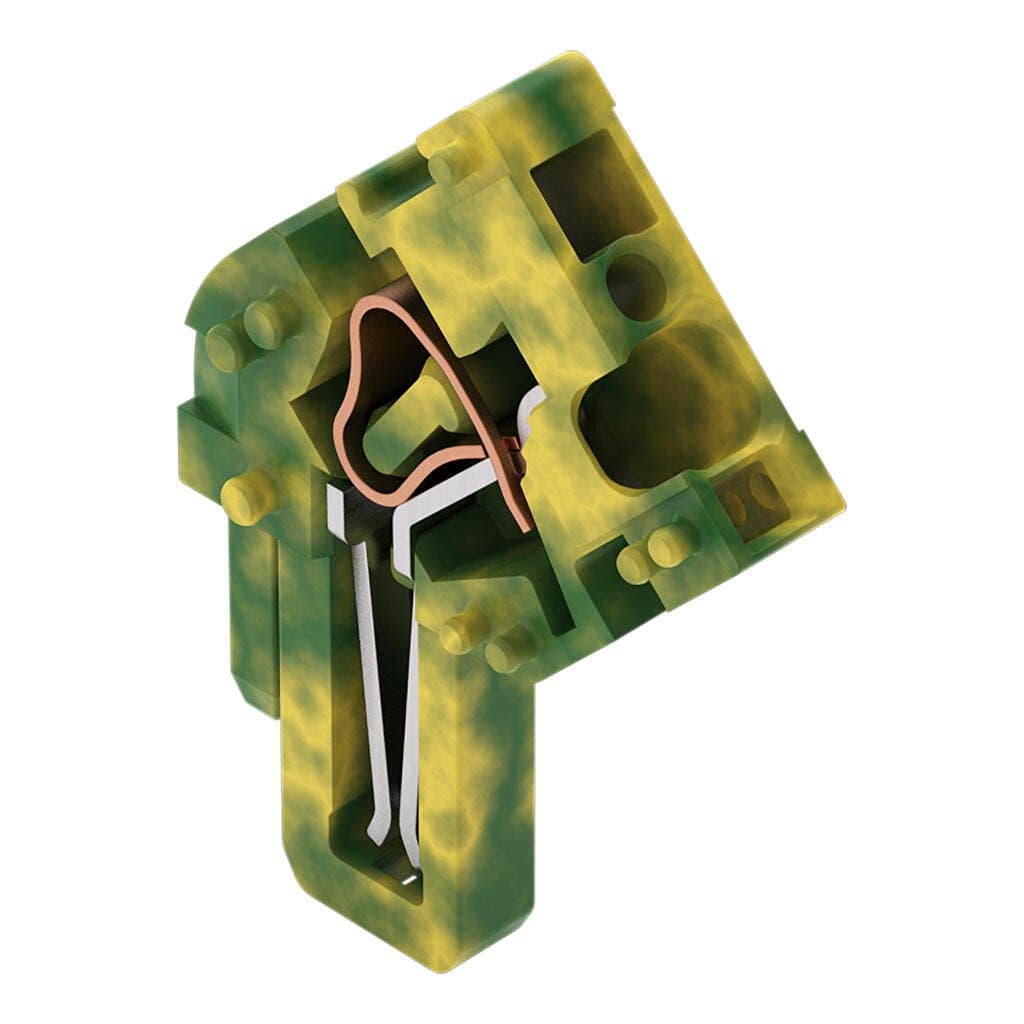

769-513/000-016
Selling Points
- 1Designed for 1-conductor female connectors with a pin spacing of 5 mm.
- 2Ensures secure and reliable connections with minimal effort.
- 3Convenient for angled installations, reducing space constraints.
- 4Compatible with heavy-duty connectors, suitable for demanding applications.
- 5Easy identification with green-yellow coding for enhanced organization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 1 |
Total number of potentials | 1 | Width | 5?mm?/ 0.197?inches |
Height | 37.1?mm?/ 1.461?inches | Depth | 26.5?mm?/ 1.043?inches |
Module width | 5?mm?/ 0.197?inches | Variable coding | Yes |
Direct ground contact to DIN-rail/drilled hole/housing | No | Marking level | Side marking |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
Connector (connection type) | for conductor | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.044MJ |
Halogen-free | Yes | Weight | 2.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 250?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4017332632959 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 61984 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Number of poles | 1 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
