Product Model

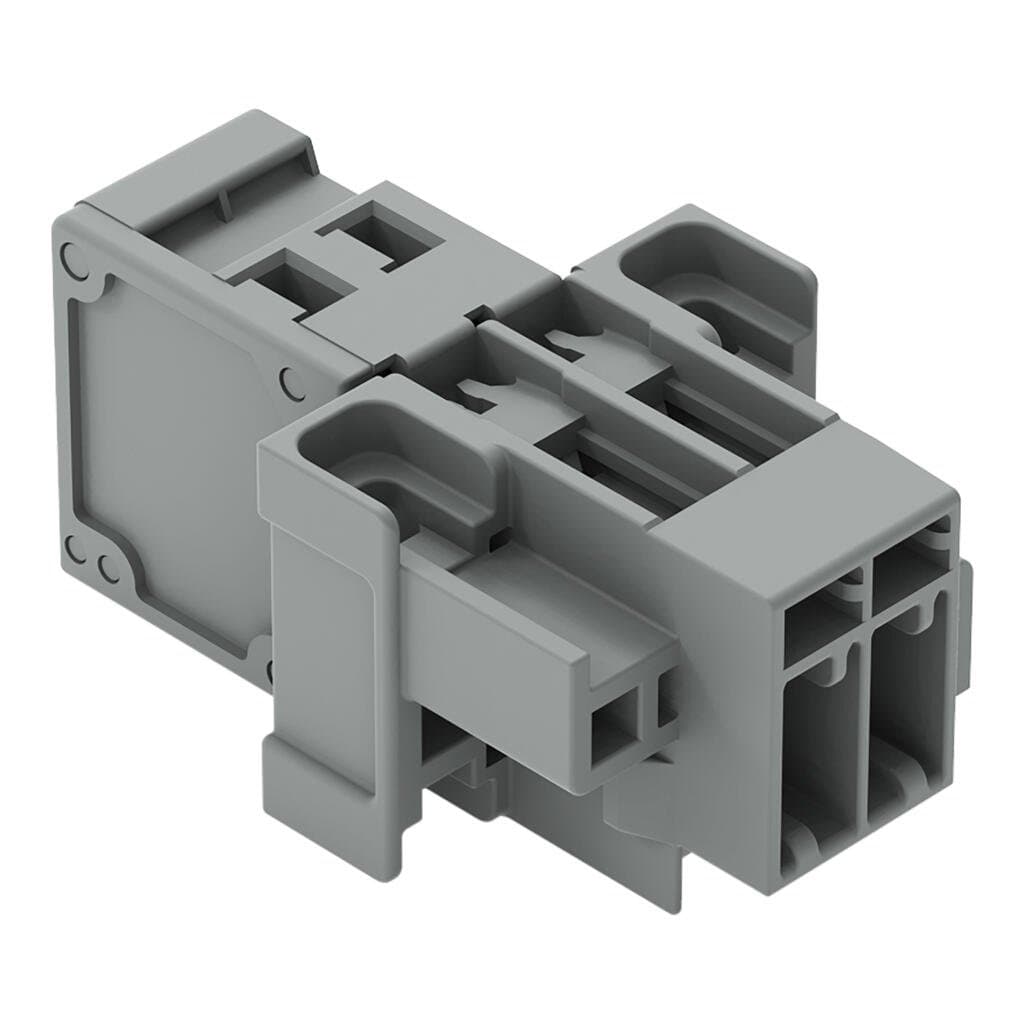

769-602/004-000
Selling Points
- 1CAGE CLAMP Technology: Secure and reliable connection with CAGE CLAMP spring connections.
- 2High Current Rating: Supports up to 32 A, suitable for demanding electrical applications.
- 3Versatile Mounting: Designed for flange or surface mounting, offering flexibility in installation.
- 4Rohs Compliant: Meets RoHS standards, ensuring environmental safety.
- 5Compact Design: Compact size with 5 mm pin spacing, perfect for space-constrained projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Pin spacing | 5 mm / 0.197 inches | Width | 24.7 mm / 0.972 inches |
Height from the surface | 18.3 mm / 0.72 inches | Depth | 40.2 mm / 1.583 inches |
Variable coding | Yes | Direct ground contact to DIN-rail/drilled hole/housing | No |
Mounting type | Feedthrough flange | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for conductor |
Mismating protection | No | Plugging without loss of pin spacing | No |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.286MJ |
Weight | 8g | Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100 pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4044918520751 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.08 … 4 mm2 / 28 … 12 AWG |
Fine-stranded conductor | 0.08 … 4 mm2 / 28 … 12 AWG | Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Number of poles | 2 | Wiring direction | Front-entry wiring |
