Product Model

769-640

Manufacturer

wago

Category

Pcb Interconnect

Product ID

45291

In Stock
Last updated: 2025/5/2
View Specifications

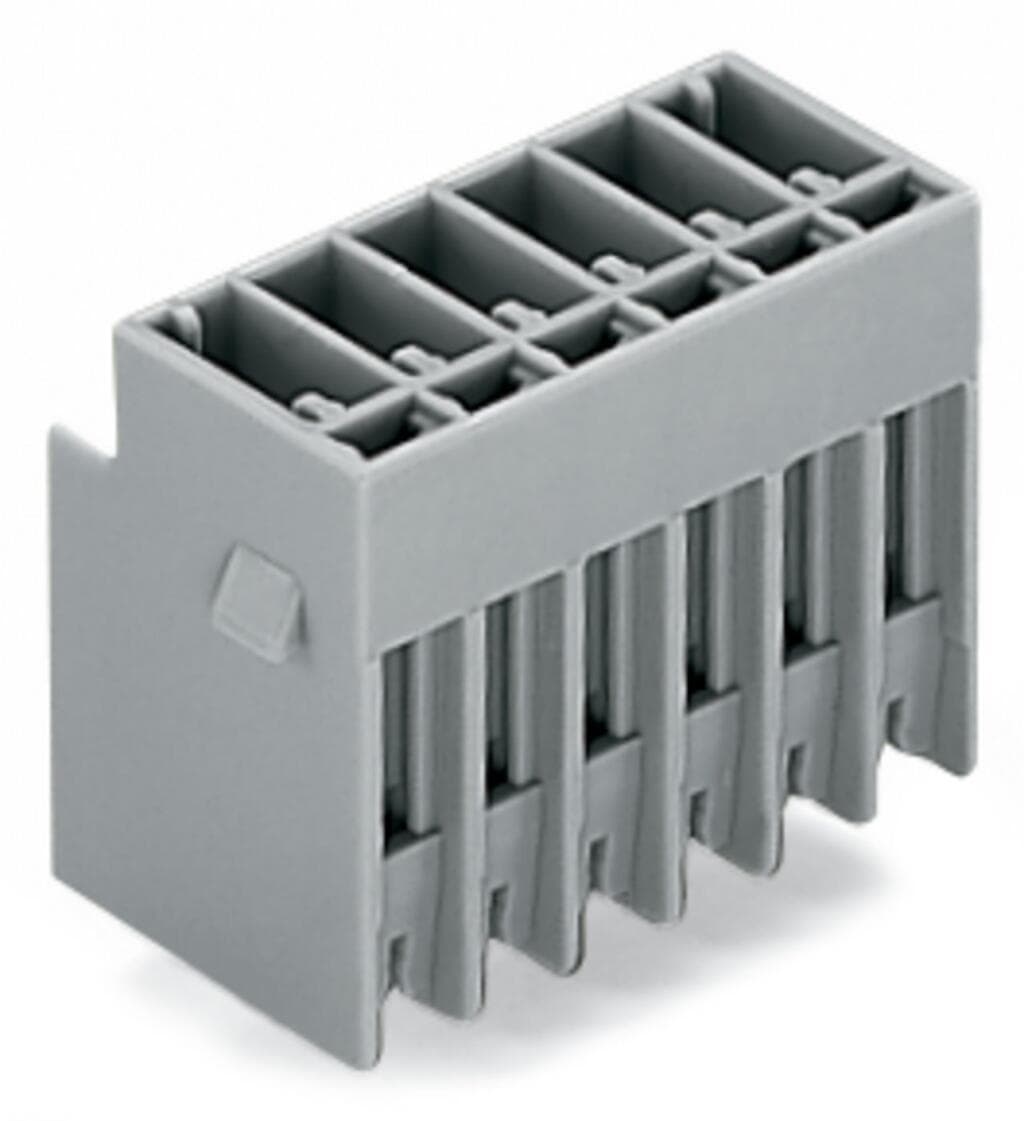

wago 769-640

Selling Points

  • 1High Current Rating: Supports up to 32A of current.
  • 2Robust Construction: Made from durable polyamide 66 (PA 66) material.
  • 3Versatile Connectivity: Straight solder pins with 5mm spacing, suitable for various PCB applications.
  • 4Compliant with Standards: Meets IEC/EN 60664-1 ratings and is RoHS compliant.
  • 5Wide Operating Temperature Range: Operates between -35°C to +85°C.
Product Details
769-640
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Total number of potentials
10
Number of levels
1
Preceding contacts
No
Pin spacing
5?mm?/ 0.197?inches
Width
53.6?mm?/ 2.11?inches
Height from the surface
22.2?mm?/ 0.874?inches
Depth
18.3?mm?/ 0.72?inches
Variable coding
Yes
Mounting type
PCB
Anti-rotation protection
Yes
Contact type (pluggable connector)
Male header
Connector (connection type)
for PCB
Mismating protection
No
Plugging without loss of pin spacing
No
Mating direction to the PCB
90°
PCB contact
THT
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.259MJ
Weight
9.8g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
Product Group
18 (X-COM-System)
eCl@ss 10.0
27-44-04-02
eCl@ss 9.0
27-44-04-02
ETIM 9.0
EC002637
ETIM 8.0
EC002637
ECCN
NO US CLASSIFICATION
PU (SPU)
25?pcs
Packaging type
box
Country of origin
PL
GTIN
4044918270748
Customs tariff number
8536694040
RoHS Compliance Status
Compliant,No Exemption
Rated voltage (III / 3)
250V
Rated impulse voltage (III / 3)
4kV
Rated voltage (III/2)
500V
Rated surge voltage (III/2)
4kV
Rated current
32A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Number of poles
10

Specifications may be subject to change without notice
