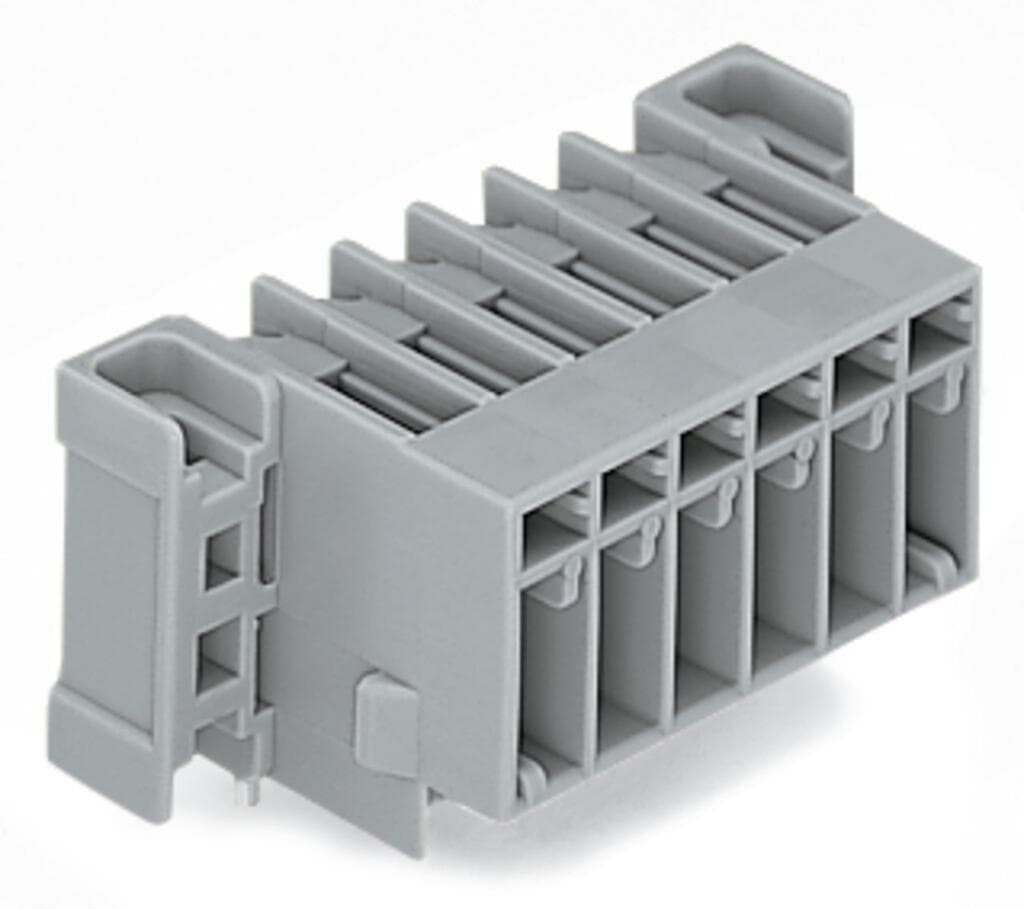

Product Model
769-668/003-000
Selling Points
- 1The WAGO 769-668/003-000 features 8 angled solder pins for secure and efficient PCB connections.
- 21.0 x 1.0 mm solder pins are angled for easy access and reduced risk of damage.
- 3Meets RoHS standards, ensuring environmental sustainability and compliance.
- 4Designed to handle measured voltages up to 500 V and shock voltages of 4 kV.
- 5Available in packs of 25, making it ideal for bulk purchases and project requirements.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 8 | Number of levels | 1 |
Preceding contacts | No | Pin spacing | 5?mm?/ 0.197?inches |
Width | 54.7?mm?/ 2.154?inches | Height from the surface | 18.3?mm?/ 0.72?inches |
Depth | 22.2?mm?/ 0.874?inches | Variable coding | Yes |
Mounting type | Mounting flange | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Male header | Connector (connection type) | for PCB |
Mismating protection | No | Plugging without loss of pin spacing | No |
Mating direction to the PCB | 0° | PCB contact | THT |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.294MJ |
Weight | 9.5g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | PL |
GTIN | 4044918396875 | Customs tariff number | 8536694040 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 500V |
Rated surge voltage (III/2) | 4kV | Rated current | 32A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Number of poles | 8 |
Specifications may be subject to change without notice
