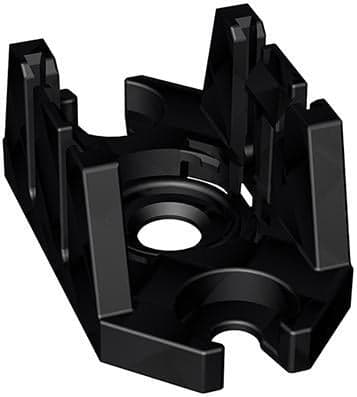

Product Model
770-1626
Selling Points
- 1Secure and Reliable Connections: The WAGO 770-1626 mounting plate ensures secure and reliable connections in electrical installations.
- 2Suitable for Distribution Connectors: Designed for distribution connectors (except T-distribution connectors), this mounting plate is versatile and efficient.
- 3High-Temperature Resistance: Operating within a temperature range of -35°C to +85°C, it provides reliable performance in various environments.
- 4Easy Installation: Featuring a screw mount design, installation is quick and straightforward, reducing labor costs and time.
- 5Compliant with Safety Standards: Meets UL94 V0 flammability class and RoHS compliance, ensuring safety and environmental responsibility.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting type | Screw mounting | Suitable | for distribution connectors (except T-distribution connectors); 2-pole |
Note (material data) | Information on material specifications can be found here | Color | black |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.12MJ | Weight | 4g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821854524 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption | Number of poles | 2 |
Specifications may be subject to change without notice
