Product Model
770-513
Selling Points

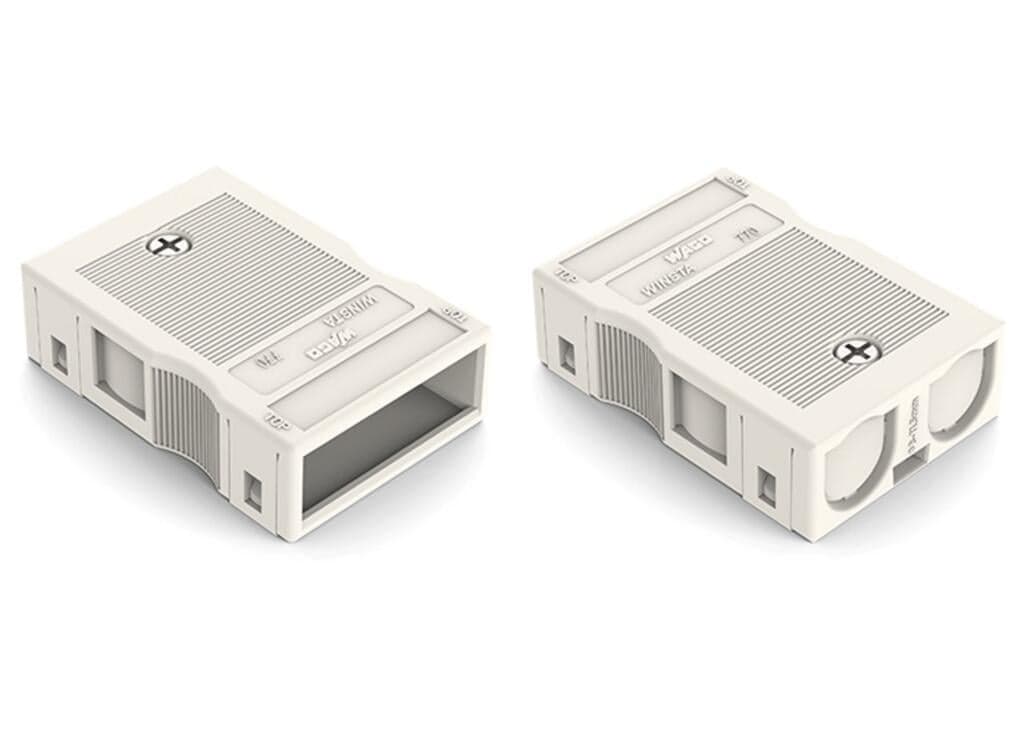

- 1Secure Electrical Connections: The WAGO 770-513 strain relief housing ensures secure connections for 3-pole configurations.
- 2Maintenance-Free Design: Engineered to provide long-lasting, maintenance-free performance in industrial and automation systems.
- 3High-Temperature Resistance: Operates within a continuous temperature range of -35°C to +85°C, making it suitable for various environments.
- 4Polyamide Insulation: Features polyamide (PA66) insulation material for durability and reliability.
- 5Compliant with Safety Standards: Meets standards from Underwriters Laboratories Inc., cURus, and other international safety certifications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 34.6?mm?/ 1.362?inches |
Height | 15?mm?/ 0.591?inches | Depth | 50?mm?/ 1.969?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.259MJ |
Weight | 10.2g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332753883 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 | Connectable sheathed cable diameter | 8 … 11.5?mm |
Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
