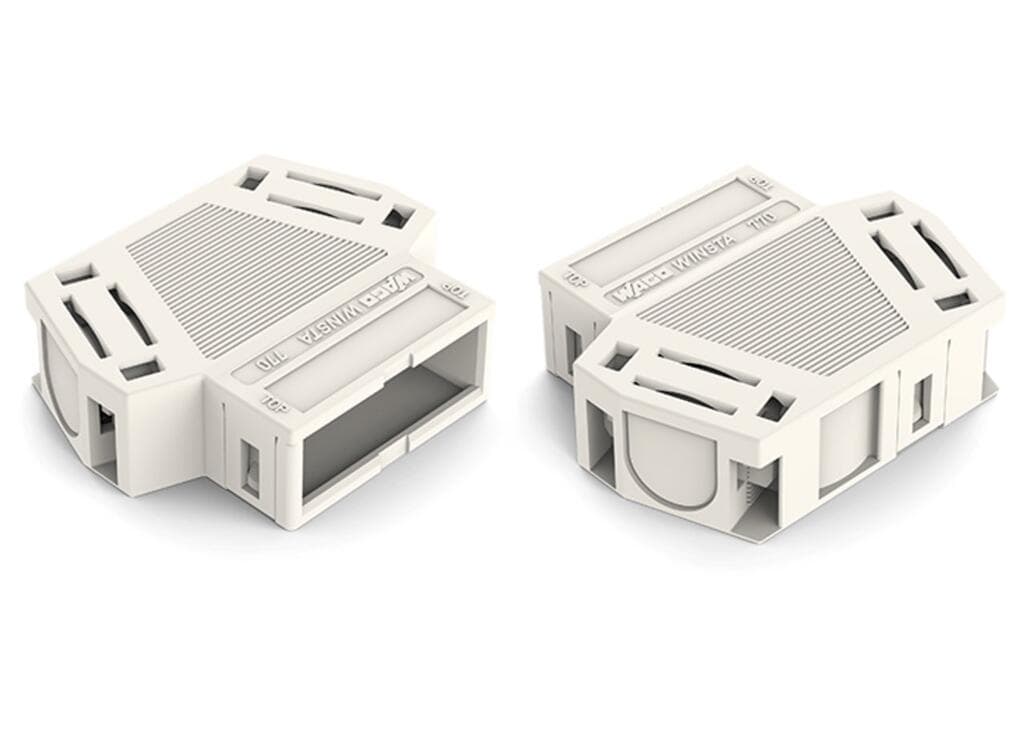

Product Model
770-513/032-000
Selling Points
- 1Universal compatibility for global luminaire connections.
- 2Strain relief housing for 4 mm² conductors ensures durability.
- 3Easy pluggable connectors simplify installation and maintenance.
- 4High-quality materials for reliable and long-lasting performance.
- 5Compact design for space-efficient installations in various lighting systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Note (material data) | Information on material specifications can be found here |
Color | white | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.32MJ |
Weight | 11g | Processing temperature | -5 … +40?°C |
Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918102438 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 3 | Connectable sheathed cable diameter | 8 … 11.5?mm |
Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
