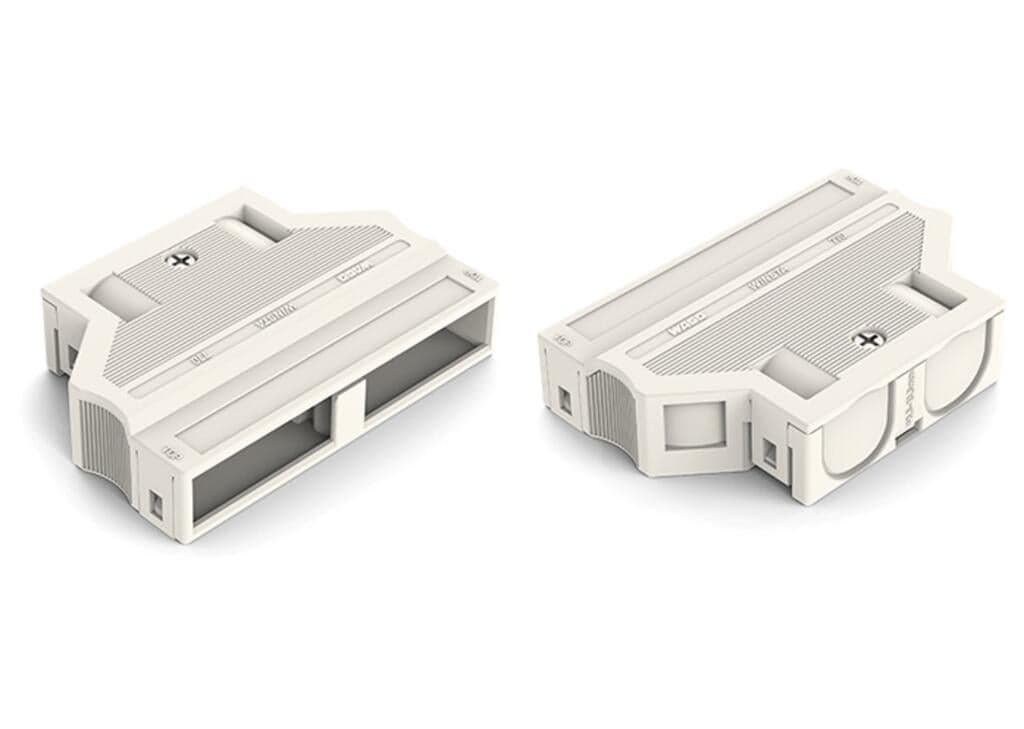

Product Model
770-516/029-000
Selling Points
- 1Fast and secure installation with Push-in CAGE CLAMP technology.
- 2Compatible with two 3-pole sockets, two 3-pole plugs, and three-pole socket and plug.
- 3Made from polyamide (PA66) with a flammability class of UL94 V0.
- 4Operating temperature range of -35°C to +85°C and processing temperature range of -5°C to +40°C.
- 5Compliant with RoHS and approved for marine applications by Lloyds Register.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Pin spacing | 10 mm / 0.394 inches | Width | 72?mm?/ 2.835?inches |
Height | 16.8?mm?/ 0.661?inches | Depth | 50?mm?/ 1.969?inches |
Note (material data) | Information on material specifications can be found here | Color | white |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.466MJ | Weight | 16.6g |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-92 |
eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454001810 |
Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
Number of poles | 6 | Connectable sheathed cable diameter | 8.5 … 13.5?mm |
Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
