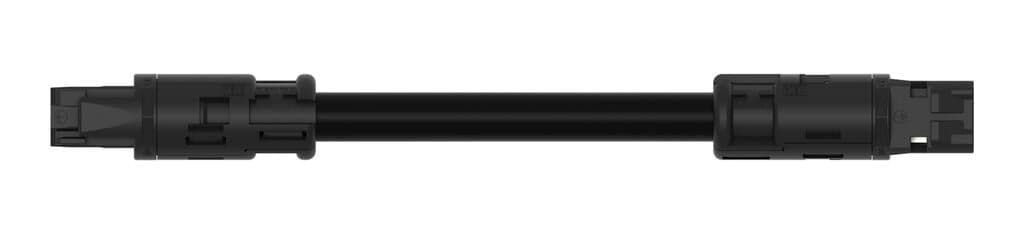

Product Model
774-9994/016-601
Selling Points
- 1Pre-assembled for convenience: Comes ready to use, saving time and effort.
- 2Eca Socket/plug design: Ensures secure and reliable connections.
- 34-pole configuration: Suitable for various electrical applications.
- 4H05Z1Z1-F 4G 1.5 mm²: High-quality, durable cable with 1.5 mm² cross-sectional area.
- 56 meters in length: Ideal for medium to long-distance connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 4 |
Width | 17.5?mm?/ 0.689?inches | Height | 17.5?mm?/ 0.689?inches |
Total length | 6m | Use | General mains applications |
Coding | A | Variable coding | No |
Marking | N ? 2 1 | Mating force of a plug-in connection | approx. 30 … 70 N (depending on pole number) |
Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | Unlocked: approx. 30 … 70 N (depending on pole number) |
Number of mating cycles | 200, without resistive load | Connection type | Socket - Plug |
Type of pre-assembled cable | Interconnecting cable | Cable type | H05Z1Z1-F 4G1.5 |
Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
Note on mismating protection | AllWINSTA?components are 100% protected against mismating ?when:a.) plugging different numbers of polesb.) plugging while incorrectly rotatedc.) plugging while laterally staggered | Locking lever | yes |
Locking of plug-in connection | locking lever | Note (material data) | Information on material specifications can be found here |
Color | black | Insulation material (main housing) | Polyamide (PA66) |
Fire class per EN 50575 | Eca | Contact material | Copper or copper alloy; surface-treated |
Contact plating | Tin | Fire load | 178.83MJ |
Connector color | black | Strain relief color | black |
Sheathed cable color | black | Printing color of sheathed cable | white |
Halogen-free | Yes | Silicon-free | Yes |
Sheath material | Halogen-free | Rubber cable | No |
Weight | 790.1g | Copper weight of the pipe | 0.058kg/m |
Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-04 |
eCl@ss 9.0 | 27-44-06-04 | ETIM 9.0 | EC002587 |
ETIM 8.0 | EC002587 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | unpacked |
Country of origin | DE | GTIN | 4045454345723 |
Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 4kV | Rated current | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket |
Number of poles | 4 | Wire cross-section | 1.5mm2 |
Specifications may be subject to change without notice
