Product Model
783-623
Selling Points

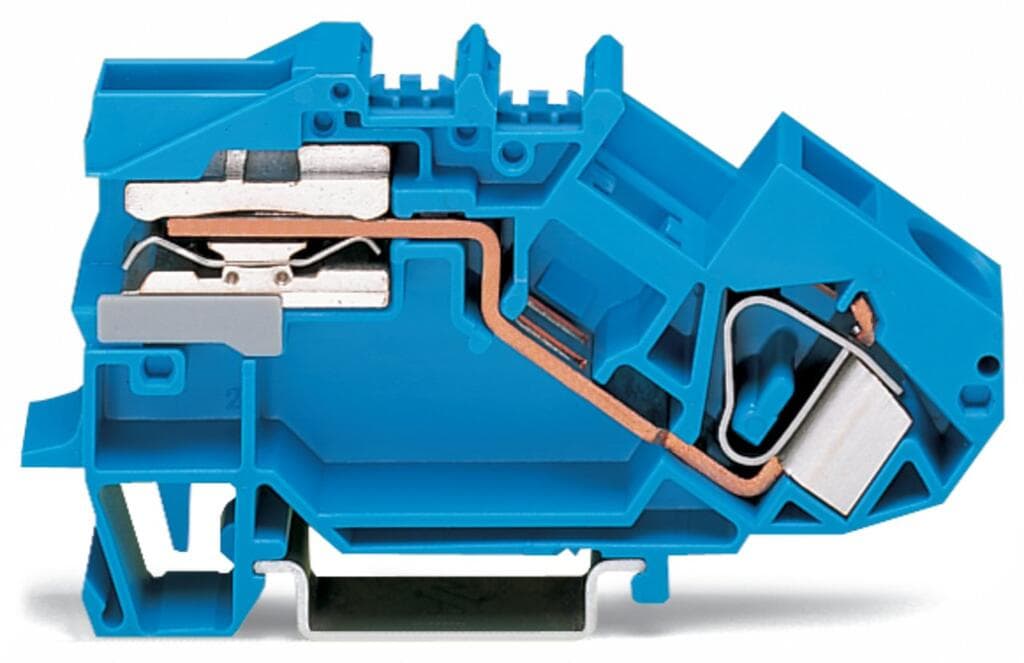

- 1The WAGO 783-623 features CAGE CLAMP technology for secure and efficient conductor connections.
- 2Its angled design allows for easy access and mounting on DIN rails, enhancing installation flexibility.
- 3The terminal block operates between -60°C to +105°C, ensuring reliability in various environmental conditions.
- 4DEKRA Certification B.V., ABS, DNV GL, and UL certifications ensure the product meets stringent safety standards.
- 5Suitable for a wide range of industrial applications, including power distribution and equipotential bonding, due to its 1-conductor design and 16mm² capacity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
Height | 88.5?mm?/ 3.484?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
Design | angled | Mounting type | DIN-35 rail |
Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.461MJ | Weight | 43.5g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 17 (TOP JOB Installation Terminal Blocks) | eCl@ss 10.0 | 27-14-11-38 |
eCl@ss 9.0 | 27-14-11-38 | ETIM 9.0 | EC001257 |
ETIM 8.0 | EC001257 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | box |
Country of origin | PL | GTIN | 4044918691475 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | 6be6eace-a52d-4c14-b6a4-b921767b0d86 |
SCIP notification number (Belgium) | 057bc7d9-ac54-4752-8cfe-7dff0d8961e7 | SCIP notification number (Bulgaria) | 096e3b4c-0f1d-479f-afff-a41a1e0fa7e5 |
SCIP notification number (Czech Republic) | d6a0d2b7-28d5-4f55-82bf-7858f83bd7a6 | SCIP notification number (Denmark) | e5cd8195-3bda-4925-a96c-b30269d4102e |
SCIP notification number (Finland) | d015a392-00bf-4188-88b9-bcd52ac4c75e | SCIP notification number (France) | 3d76018c-7374-453d-a76d-b0bb85cc0bc0 |
SCIP notification number (Germany) | 709411cb-9bb5-4599-9186-f05d33ca2798 | SCIP notification number (Hungary) | 548a3ac8-a410-4ad7-a24d-a0f163b0ce1f |
SCIP notification number (Italy) | a15036e9-cfb5-4858-9ab7-5f578071ae3e | SCIP notification number (Netherlands) | 7ab816df-81bc-4cc1-a754-919bae3c1b49 |
SCIP notification number (Poland) | c0b403b0-65ce-443e-8e07-4fe9de918e30 | SCIP notification number (Romania) | 94ea9f7e-cda0-459a-937c-2ece40b0597a |
SCIP notification number (Sweden) | 381b6f17-d07b-4c52-8ae0-32c0d1aea5e9 | Rated voltage (III / 3) | 400V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 68A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 1.942W |
Rated current I<sub>N</sub> for specified power loss | 68A | Resistance value for specified, current-dependent power loss | 0Ω |
Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
