Product Model

787-1675

Manufacturer

wago

Category

Power Supplies

Product ID

46693

In Stock
Last updated: 2025/4/29
View Specifications

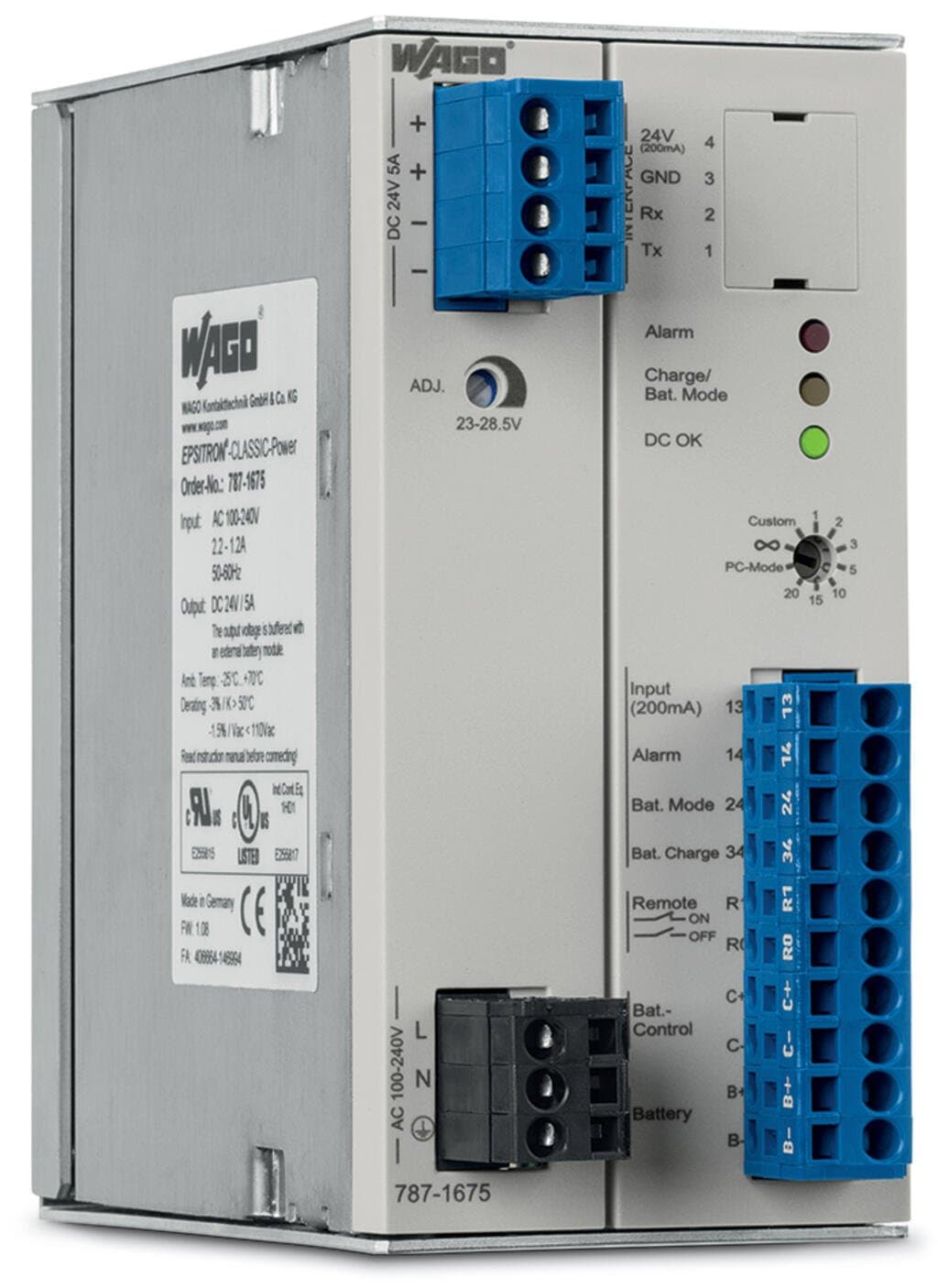

wago 787-1675

Selling Points

  • 1High-speed data transmission up to 10 Gbps.
  • 2Compact design for easy integration in tight spaces.
  • 3Durable and resistant to harsh industrial environments.
  • 4Supports a wide range of industrial protocols.
  • 5Easy installation with minimal cabling requirements.
Product Details
787-1675
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Isolation voltage (sec.-PE)
DC 0.7?kV
Protection class
I
Protection type
IP20; per EN 60529
Reverse voltage protection
yes
Overvoltage category
II
Pollution degree
2
Transient suppression (primary)
Varistor
Overvoltage protection; secondary
Internal protective circuit
Parallel operation
Yes, max. 3 battery modules forbuffer time extension
Series operation
No
MTBF
> 500,000 h (per IEC 61709)
Connection type 1
Input/Output/Signaling
Connection technology
CAGE CLAMP?
WAGO connector
WAGO 721 Series
Solid conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor
0.08 … 2.5?mm2?/ 28 … 12?AWG
Strip length
8 … 9?mm?/ 0.31 … 0.35?inches
Connection type 2
Interface
Connection technology 2
CAGE CLAMP?
WAGO connector 2
WAGO 734 Series
Solid conductor 2
0.08 … 1.5?mm2?/ 28 … 14?AWG
Fine-stranded conductor 2
0.08 … 1.5?mm2?/ 28 … 14?AWG
Strip length 2
6 … 7?mm?/ 0.24 … 0.28?inches
Cable length (max.)
3?m (Output, Battery Control)
Width
60?mm?/ 2.362?inches
Height
127?mm?/ 5?inches
Depth from upper-edge of DIN-rail
135.5?mm?/ 5.335?inches
Mounting type
DIN-35 rail
Fire load
0.78MJ
Weight
885g
Ambient temperature (operation)
-25 … +70 °C (Device starts at ?40 °C (type-tested))
Ambient temperature (storage)
-25 … +85 °C
Relative humidity
5 … 96?% (no condensation permissible)
Derating
?3 %/K (> 50 °C)
Climatic category
3K3 (per EN 60721)
Conformity marking
CE
Standards/specifications
EN 61010-1
Product Group
6 (INTERFACE ELECTRONIC)
eCl@ss 10.0
27-04-07-01
eCl@ss 9.0
27-04-07-01
ETIM 9.0
EC002540
ETIM 8.0
EC002540
ECCN
NO US CLASSIFICATION
PU (SPU)
1?pcs
Packaging type
box
Country of origin
DE
GTIN
4050821502616
Customs tariff number
8504409510
RoHS Compliance Status
Compliant,No Exemption
Nominal input voltage [V]
1 x AC 100 ... 240 V
Input voltage range
AC?85 … 264?V;?DC?120 … 372?V
Input voltage derating
-1.5 %/V (< 110 VAC); -1 %/V (< 150 VDC)
Nominal mains frequency range
44 … 66 Hz;0 Hz
Input current I<sub>i</sub>
≤?1.1?A (230 VAC; 5 ADC);?≤?2.2?A (110 VAC; 5 ADC)
Inrush current
≤?30?A
Power factor correction (PFC)
Passive
Nominal output voltage [V]
DC?24?V (SELV)
Output voltage range
DC?24?V
Nominal output current I<sub>o nom</sub>
5?A
Nominal output power
120W
Deviation
≤?1?%
Residual ripple
≤?50?mV (peak-to-peak)
Current limitation
1.1 x Io nom(typ.); TopBoost
Overload behavior
Constant current
Buffer time
1?s … 20?min or constant; PC mode; configurable via software
Switch-on threshold (adjustable)
DC?20 … 25.5?V (Adjustable via software; 22 VDC (pre-configured))
Charging current
0.3 … 1?A
End-of-charge voltage
DC?26 … 29.5?V (temperature-controlled; optional fixed setting)
Recommended battery module
787-871, 787-872, 787-873, 787-876, 787-1671
Signaling
1 x Alarm LED (red)
Operation status indicator
Green LED (DC OK)
Communications
RS-232 serial interface
Remote input
Switching buffer mode off
Power loss P<sub>l</sub>
≤?5.2?W (buffer mode; 24 VDC; 5 A);?≤?17?W (Mains operation; 230 VAC; 24 VDC; 5 A);?≤?22?W
Power loss (max.) P<sub>l (max.)</sub>
30?W (90 VAC; charging)
Efficiency (typ.)
88?%
Internal fuse
T 4 A / 250 VAC (input side)
Backup fusing (required)
An external DC fuse is required for the DC input voltage.
Backup fusing (recommended)
Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C
