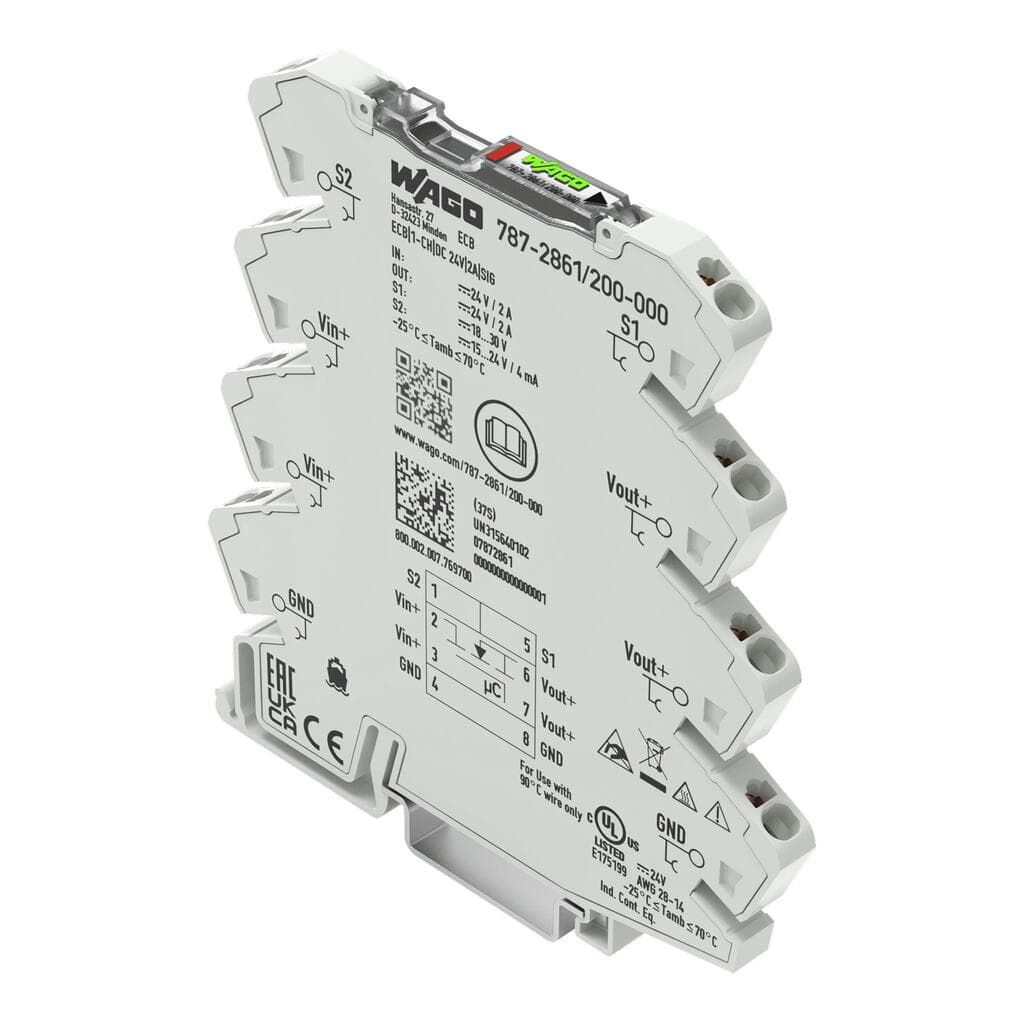

Product Model
787-2861/200-000
Selling Points
- 1High-performance connectivity for seamless data transmission.
- 2Robust design for reliable operation in harsh industrial environments.
- 3Easy integration with various automation systems.
- 4Scalable architecture to meet growing automation needs.
- 5Enhanced security features for data protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Isolation voltage (connectors – housing) | DC 0.5?kV | Protection class | III |
Protection type | IP20; per EN 60529 | Reverse voltage protection | No |
Pollution degree | 2 | Transient suppression (primary) | Suppressor diode (33 V) |
Parallel operation of single channels | Not permitted | Series operation | No |
MTBF | 1,262,142 h (per MIL-HDBK-217F2) | Number of jumper slots | 8 |
Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 857 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 6?mm?/ 0.236?inches |
Height | 94 mm / 3.701 inches | Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches |
Mounting type | DIN-35 rail | Weight | 34g |
Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 10 … 95?% (no condensation permissible) | Derating | No derating |
Conformity marking | CE | Standards/specifications | EN 61000-6-2 |
eCl@ss 10.0 | 27-37-18-02 | eCl@ss 9.0 | 27-37-18-02 |
ETIM 9.0 | EC001440 | ETIM 8.0 | EC001440 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1 pcs |
Packaging type | Bag | Country of origin | CN |
Customs tariff number | 85363010900 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | Diboron trioxide | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 3e85e14b-c7cb-484e-968a-2ce00e576774 |
SCIP notification number (Belgium) | 34601d38-5bcb-4302-ab55-a068ea19713e | SCIP notification number (Bulgaria) | 0c8ceb5c-3f96-41a1-ba70-8a38b9968c27 |
SCIP notification number (Czech Republic) | d9d408a3-cc8d-4567-8f98-5837064987ac | SCIP notification number (Denmark) | e5647c56-bb3d-48fd-bea1-0ec1a9381d1e |
SCIP notification number (Finland) | d641fa9f-51f9-46c3-8d1f-5765454b5398 | SCIP notification number (France) | ce96db74-bfb6-4947-b42d-c8f4417af1b1 |
SCIP notification number (Germany) | 0c9009c5-5bd8-4318-b0da-90af6312a997 | SCIP notification number (Hungary) | 3f640956-f2c1-4148-ad64-9f4f5d311892 |
SCIP notification number (Italy) | 63826b4d-11ed-4e38-864d-63e2bf382ce3 | SCIP notification number (Netherlands) | 6e792586-31c3-417f-a7df-5ab99a4793b1 |
SCIP notification number (Poland) | 61848ec2-6fea-43f2-b564-38c7daa93927 | SCIP notification number (Romania) | b5755c5c-3521-41b3-a467-6a9e2d8ddbc9 |
SCIP notification number (Sweden) | 5b376c8a-42e6-4066-a06e-9a692d5ed504 | Nominal input voltage [V] | DC?24?V |
Input voltage range | DC?18 … 30?V | Number of Channels | 1 |
Nominal output voltage [V] | 1 x DC?24?V | Output voltage range | DC 18 … 30?V?(Ue? voltage drop) |
Voltage drop | ≤?25?mV (2?A) | Nominal output current I<sub>o nom</sub> | 1 x 2?A (fixed setting) |
Trip time | 4 ms … 100 s (load-dependent) | Switch-on capacity | >?50000?μF?per channel |
Switch-on behavior | Time-delayed channel switching (load-dependent, min. 170 ms/max. 500 ms) | Active current limitation | No |
Current limitation | No | Signaling | 1 x Status LED (green/yellow/red/blue) |
Operation status indicator | Green LED (channel OK) | Remote input | 18 … 30 VDC signal, switches on/off and resets the channel |
Power loss P<sub>l</sub> | ≤?0.36?W | Efficiency (typ.) | 96?% |
Internal fuse | T 15 A |
