Product Model

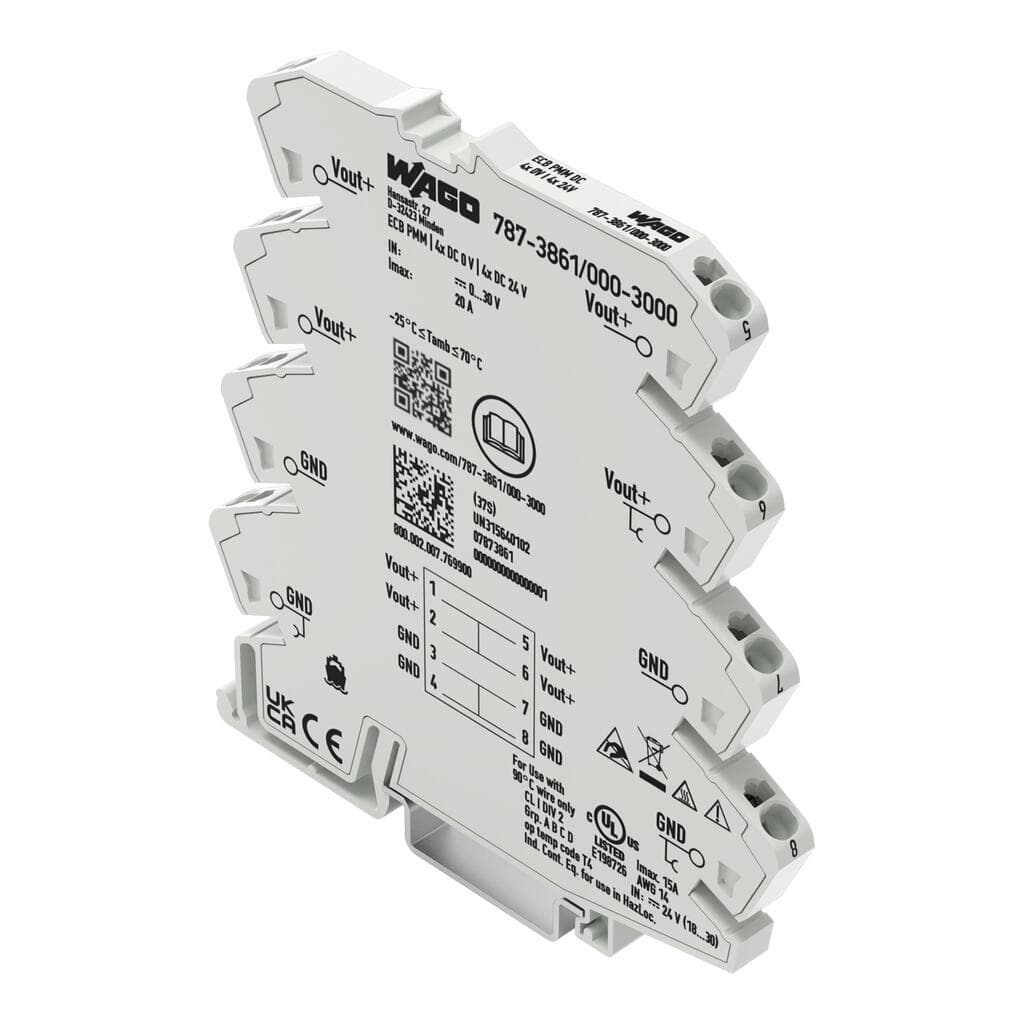

787-3861/000-3000
Selling Points
- 1Dual Potential Distribution: 2 potentials with 4 clamping points each (0V / 24V).
- 2High Conductor Capacity: Conductor cross-section up to 2.5mm².
- 3Wide Operating Range: Operating voltage range from 0 to 30VDC.
- 4Enhanced Safety Features: Limiting continuous current of 20A, 15A (UL), and IP20 degree of protection.
- 5Easy Installation: Push-in CAGE CLAMP® technology for quick and secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The device is designed for use in SELV circuits. | Nominal operating voltage | DC?24?V |
Operating voltage | 0 … 30?VDC | Limiting continuous current | 20?A;?15?A (UL) |
Specialty functions | with 4 clamping points each (0 V / 24 V) | Protection type | IP20; per EN 60529 |
Protection class | III | Total number of potentials | 2 |
Clamping units | 8 | Number of jumper slots | 8 |
Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 26 … 14?AWG |
Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
Width | 6?mm?/ 0.236?inches | Height | 94 mm / 3.701 inches |
Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches | Mounting type | DIN-35 rail |
Fire load | 0.634MJ | Weight | 55.7g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 10 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
Conformity marking | CE | ETIM 9.0 | EC002780 |
ETIM 8.0 | EC002780 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Bag |
Country of origin | IN | GTIN | 4066966392654 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
