Product Model

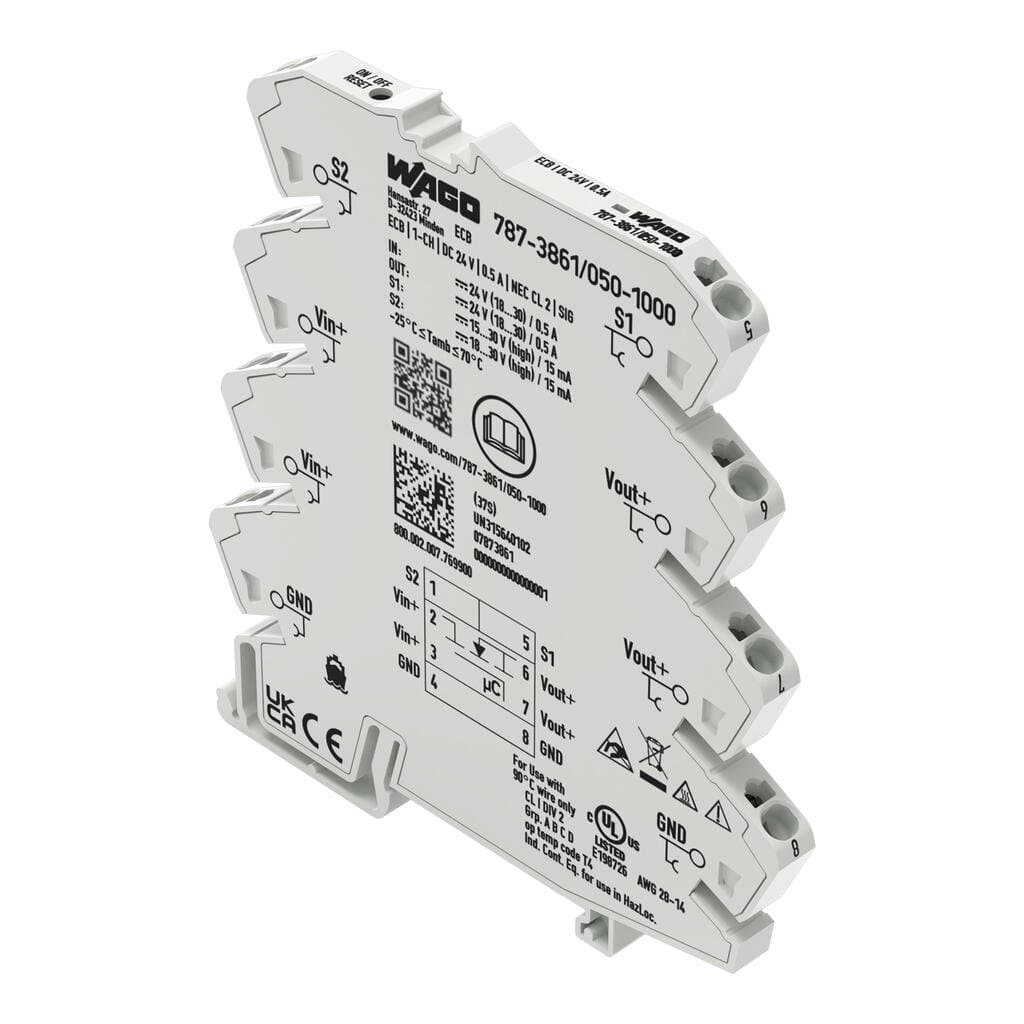

787-3861/050-1000
Selling Points
- 1Compact Design: Perfect for DIN rail mounting.
- 2Reliable Performance: 24 VDC input voltage with 0.5 A fixed current.
- 3Compliance: Meets NEC Class 2 standards.
- 4Easy Installation: Spring clamps for secure lead connections.
- 5Durable Construction: IP20 rating for robust protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The device is designed for use in SELV circuits. | Isolation voltage (connectors – housing) | DC 1.5?kV |
Protection class | III | Protection type | IP20; per EN 60529 |
Reverse voltage protection | No | Transient suppression (primary) | Suppressor diode (33 V) |
Parallel operation of single channels | Not permitted | Series operation | No |
MTBF | 1,168,394 h | Number of jumper slots | 8 |
Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 857 Series |
Solid conductor | 0.08 … 2.5?mm2?/ 26 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Note (conductor cross-section) | Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A) |
Width | 6?mm?/ 0.236?inches | Height | 94 mm / 3.701 inches |
Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches | Mounting type | DIN-35 rail |
Fire load | 0.631MJ | Weight | 55.6g |
Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Relative humidity | 10 … 95?% (no condensation permissible) | Derating | No derating |
Operating altitude | ≤ 2000 m (a.s.l.) | Conformity marking | CE; UKCA |
Standards/specifications | EN 61000-6-2 | ETIM 9.0 | EC001440 |
ETIM 8.0 | EC001440 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Bag |
Country of origin | IN | Customs tariff number | 85363010900 |
CAS-No. | 11120-22-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 24e753d8-e92c-4dd1-8f44-291c22790dbe | SCIP notification number (Belgium) | a3a486a0-6aa9-4a6a-9f97-4c9ae50f4549 |
SCIP notification number (Bulgaria) | 023fb22e-8ca1-4565-9012-b1e2845be79b | SCIP notification number (Czech Republic) | 78145795-59ba-4765-a65d-2f15c896aac5 |
SCIP notification number (Denmark) | d2e8599d-0b42-469b-aa4b-8250887fd1e4 | SCIP notification number (Finland) | a9415819-e0cb-41e7-b540-d66f134f87c2 |
SCIP notification number (France) | 89f46946-4f4b-4ddf-8ae1-738ad2dfcfa3 | SCIP notification number (Germany) | 49c59e8f-764e-42d9-a6ef-b3c07542769a |
SCIP notification number (Hungary) | 410310e5-087e-4f84-9f6b-08a174f07839 | SCIP notification number (Italy) | e2b26cb0-6785-4cf2-be42-2ad5402a0919 |
SCIP notification number (Netherlands) | aa967410-4dbf-40f9-b870-9162d2f25bf4 | SCIP notification number (Poland) | 6d76d5f7-7a40-4bc6-8975-88f3945ddbe3 |
SCIP notification number (Romania) | 29ac3998-dfbb-4adb-bfa5-5b77641722e6 | SCIP notification number (Sweden) | 53913ed9-45a0-4bc6-8a8f-212e0d5dee32 |
Nominal input voltage [V] | DC?24?V | Input voltage range | DC 18 … 30 V |
Number of Channels | 1 | Nominal output voltage [V] | 1 x DC?24?V |
Output voltage range | DC 18 … 30?V?(Ue? voltage drop) | Voltage drop | ≤?40?mV |
Nominal output current I<sub>o nom</sub> | 1 x 0.5?A (fixed setting) | Default setting | switched off |
Trip time | 4 ms … 100 s (load-dependent) | Switch-on behavior | Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms) |
Current limitation | No | Signaling | 1 x Status LED (green/yellow/red) |
Operation status indicator | Green LED (channel OK) | Remote input | 1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A) |
Power loss P<sub>l</sub> | ≤ 0.4 W (no load) | Efficiency (typ.) | 96?% |
Internal fuse | T 4 A | Overvoltage category | II |
Pollution degree | 2 |
Specifications may be subject to change without notice
