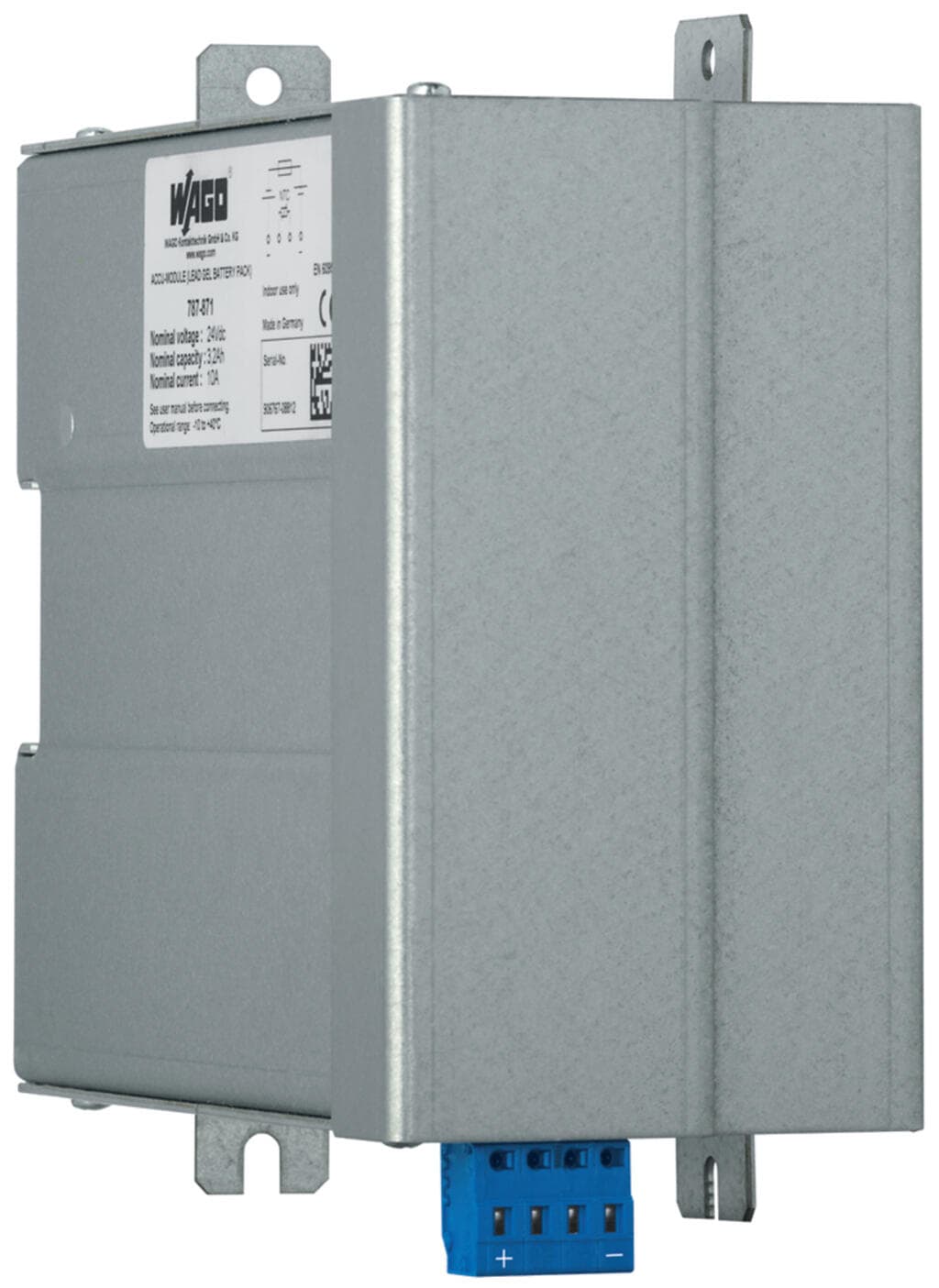

Product Model
787-871
Selling Points
- 124VDC Input and Output: Reliable power supply for various applications.
- 220A Capacity: High output current for demanding systems.
- 33.2Ah Storage: Sufficient energy storage for extended backup periods.
- 4CAGE CLAMP Connections: Secure and efficient terminal connections.
- 5IP20 Protection Rating: Enhanced safety and protection against environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller. | Protection class | III |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Parallel operation | Yes | Series operation | No |
MTBF | > 500,000 h (per IEC 61709) | Service life (typ.) | 5?/ 4?/ 2?a (20?/ 30?/ 40?°C) |
Connection type 1 | Input/Output/Battery control | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 231 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Cable length (max.) | 3?m (Input, Output, Battery Control) | Width | 76.2?mm?/ 3?inches |
Height | 168?mm?/ 6.614?inches | Depth | 175.5?mm?/ 6.909?inches |
Mounting type | Screw mount | Weight | 3079g |
Ambient temperature (operation) | -10 … +40 °C | Ambient temperature (storage) | -20 … +40 °C |
Relative humidity | 5 … 80?% (no condensation permissible) | Conformity marking | CE |
Standards/specifications | VdS-tested battery | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-05-04-03 | eCl@ss 9.0 | 27-05-04-03 |
ETIM 9.0 | EC000357 | ETIM 8.0 | EC000357 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454916626 | Customs tariff number | 8507208091 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 7b6472ef-42de-45f6-bf0e-be8b9ac48c25 |
SCIP notification number (Belgium) | 07ed6b0d-a231-4e2f-b8d7-3ac2403e53c3 | SCIP notification number (Bulgaria) | d9957315-79a3-467a-a5f9-31c4d6b5ba88 |
SCIP notification number (Czech Republic) | ee47c3b9-2f0b-430c-92f3-ca7236dd3a5a | SCIP notification number (Denmark) | 4f92bd01-ef69-47c1-aab5-8b6d06e3d0eb |
SCIP notification number (Finland) | 0294daf7-25b3-4dd1-a10c-8a4547363b54 | SCIP notification number (France) | 10201498-261f-4956-95f2-eaa90544e30c |
SCIP notification number (Germany) | 38458ceb-5763-43a6-93cc-f05a51477e61 | SCIP notification number (Hungary) | 3ca9a168-305f-4c20-9e34-196878f02e77 |
SCIP notification number (Italy) | fe08e321-647a-46a9-96f0-6e8342a4c2ad | SCIP notification number (Netherlands) | adb489ff-bed5-4b65-b460-44e5d1c1e054 |
SCIP notification number (Poland) | fa986362-c788-4500-bd29-f4fd52521496 | SCIP notification number (Romania) | 978a05a9-df26-40b6-928c-1b01d5ce4682 |
SCIP notification number (Sweden) | 981fe31d-cc9a-40f7-a7a8-8e63a9cb11a1 | Nominal input voltage [V] | DC?24?V |
Nominal output voltage [V] | DC?24?V | Nominal output current I<sub>o nom</sub> | 20?A |
Amp hours | 3.2Ah | Charging current | ≤?0.8?A |
End-of-charge voltage | DC 27 V (25 °C) | Internal fuse | T 25 A |
Specifications may be subject to change without notice
