Product Model

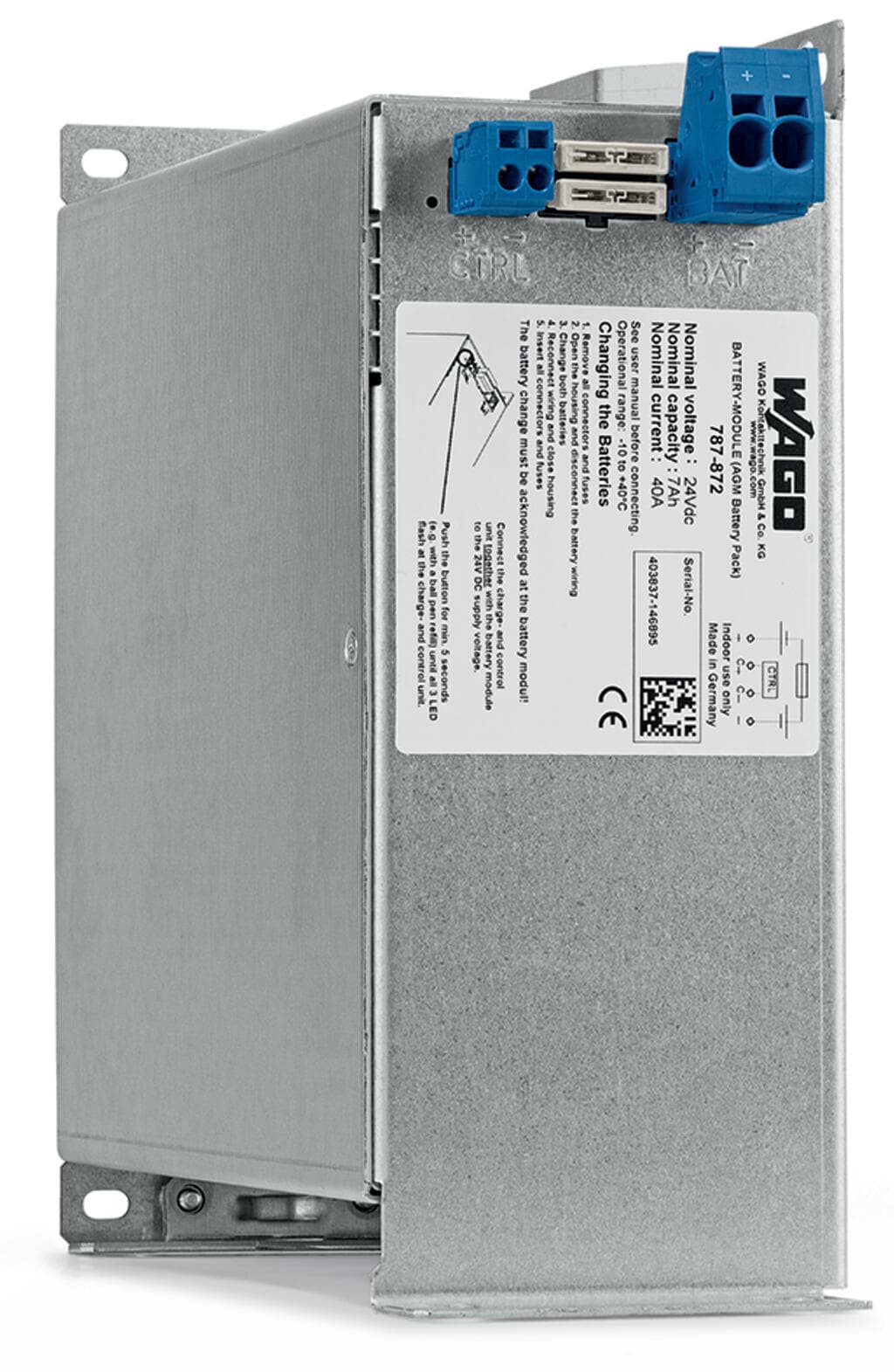

787-872
Selling Points
- 1Reliable uninterruptible power supply with 24VDC input and 40A output.
- 27Ah battery storage capacity for extended backup time.
- 3Built-in battery control for efficient monitoring and management.
- 4Compatible with WAGO's UPS chargers and controllers for seamless integration.
- 5Robust design with IP20 protection and up to 500,000 hours MTBF.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller. | Protection class | III |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Parallel operation | Yes | Series operation | No |
MTBF | > 500,000 h (per IEC 61709) | Service life (typ.) | 5?/ 4?/ 2?a (20?/ 30?/ 40?°C) |
Connection type 1 | Input/Output | Connection technology | Push-in CAGE CLAMP? |
WAGO connector | WAGO 831 Series | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Connection type 2 | Battery control | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 231 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches |
Cable length (max.) | 3?m (Input, Output, Battery Control) | Width | 86?mm?/ 3.386?inches |
Height | 239?mm?/ 9.409?inches | Depth | 217.5?mm?/ 8.563?inches |
Mounting type | Screw mount | Weight | 6500g |
Ambient temperature (operation) | -10 … +40 °C | Ambient temperature (storage) | -20 … +40 °C |
Relative humidity | 5 … 80?% (no condensation permissible) | Conformity marking | CE |
Standards/specifications | VdS-tested battery | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-05-04-03 | eCl@ss 9.0 | 27-05-04-03 |
ETIM 9.0 | EC000357 | ETIM 8.0 | EC000357 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454909840 | Customs tariff number | 8507208091 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | b166dff0-ca00-4bec-b3eb-85b5113d134d |
SCIP notification number (Belgium) | ce2a4ac0-9076-453e-a0a6-d856f583e07f | SCIP notification number (Bulgaria) | b1e4190d-b93e-4825-9c53-d811eed45ee4 |
SCIP notification number (Czech Republic) | 8f17e927-75d9-4c7b-86f5-74ba197b1fc5 | SCIP notification number (Denmark) | 092d1704-d92f-4aa6-8d76-5b15a6c232a0 |
SCIP notification number (Finland) | 4d891be6-b42a-472f-9049-87329c6cb37f | SCIP notification number (France) | c8285208-8c6b-436c-81b2-1fcd559b5bd9 |
SCIP notification number (Germany) | 09ce5d04-e7c9-49ef-b77f-50259cfdc3a4 | SCIP notification number (Hungary) | b58555dd-b5c4-4e8e-b0ea-a0afc514eefd |
SCIP notification number (Italy) | 86ae9225-ab1a-4d3c-9a55-e5c0b01638e8 | SCIP notification number (Netherlands) | 2348385f-de07-4bcf-8984-c3a2a8871127 |
SCIP notification number (Poland) | e9b58dd4-f332-42fc-b1c3-487f807545b5 | SCIP notification number (Romania) | 685cc35a-84cc-4414-9b7f-fff002610f92 |
SCIP notification number (Sweden) | 89ac5fd0-61d1-4a8e-b0f8-bfca7d294b00 | Nominal input voltage [V] | DC?24?V |
Nominal output voltage [V] | DC?24?V | Nominal output current I<sub>o nom</sub> | 40?A |
Amp hours | 7Ah | Charging current | ≤?1.8?A |
End-of-charge voltage | DC 27 V (25 °C) | Internal fuse | 2 x T 25 A |
Specifications may be subject to change without notice
