Product Model

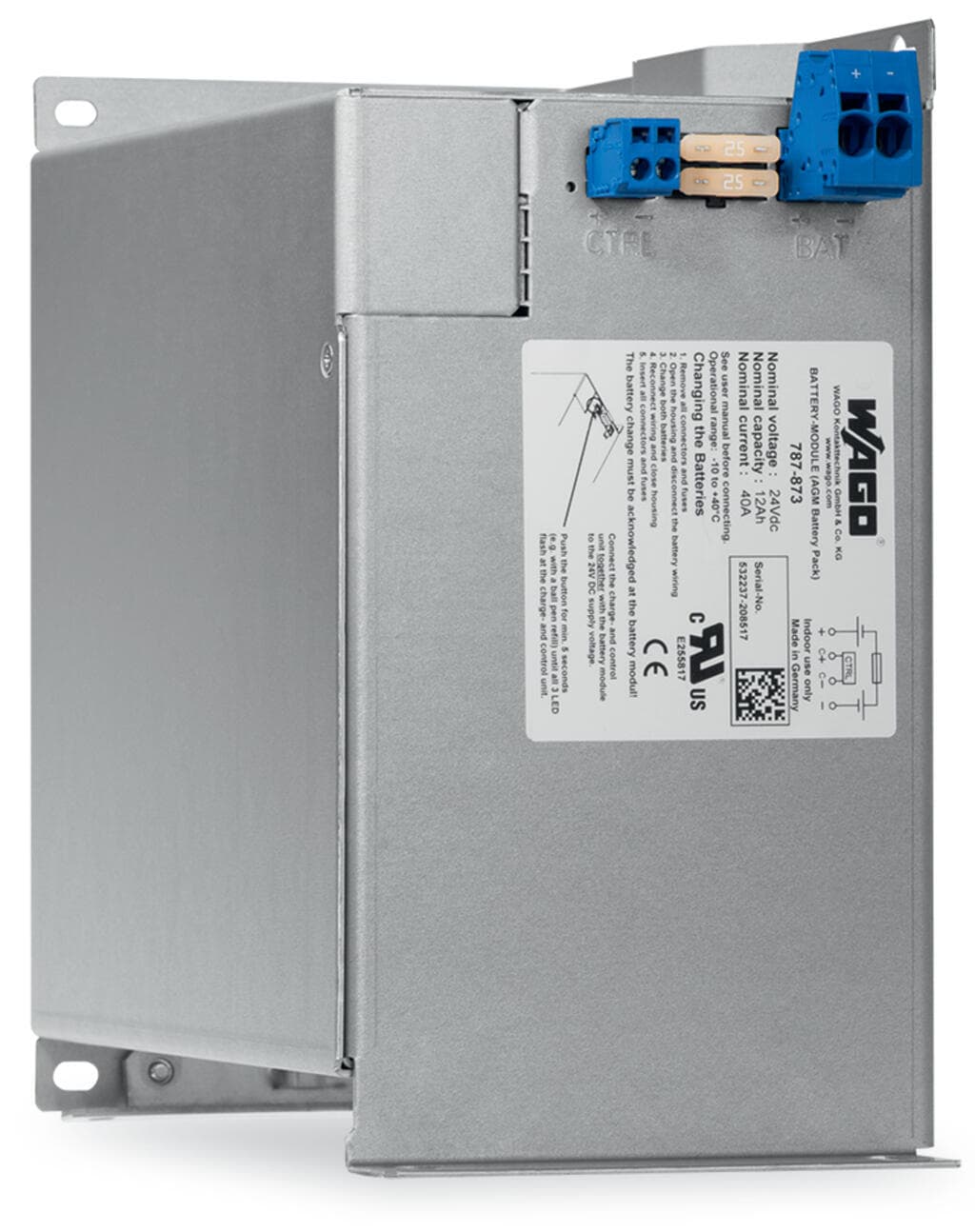

787-873
Selling Points
- 1Reliable Power Supply: Designed for uninterruptible power supply (UPS) systems.
- 2High Capacity: 12 Ah capacity ensures extended backup time.
- 3Efficient Charging: ≤ 3A charging current for efficient energy storage.
- 4Advanced Monitoring: Built-in temperature sensor and battery control (C+, C-) for optimal performance.
- 5Durable Construction: Push-in CAGE CLAMP® connection technology and IP20 protection class for long service life.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller. | Protection class | III |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Parallel operation | Yes | Series operation | No |
MTBF | > 500,000 h (per IEC 61709) | Service life (typ.) | 5?/ 4?/ 2?a (20?/ 30?/ 40?°C) |
Connection type 1 | Input/Output | Connection technology | Push-in CAGE CLAMP? |
WAGO connector | WAGO 831 Series | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Connection type 2 | Battery control | Connection technology 2 | CAGE CLAMP? |
WAGO connector 2 | WAGO 231 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches |
Cable length (max.) | 3?m (Input, Output, Battery Control) | Width | 120.5?mm?/ 4.744?inches |
Height | 239?mm?/ 9.409?inches | Depth | 217.5?mm?/ 8.563?inches |
Mounting type | Screw mount | Weight | 10650g |
Ambient temperature (operation) | -10 … +40 °C | Ambient temperature (storage) | -20 … +40 °C |
Relative humidity | 5 … 80?% (no condensation permissible) | Conformity marking | CE |
Standards/specifications | VdS-tested battery | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-05-04-03 | eCl@ss 9.0 | 27-05-04-03 |
ETIM 9.0 | EC000357 | ETIM 8.0 | EC000357 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454993900 | Customs tariff number | 8507208091 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | dbc257cd-3330-4f4d-abfd-a0fe4aef546d |
SCIP notification number (Belgium) | e4b4df80-95f0-4508-8a6b-b0e3eeabea05 | SCIP notification number (Bulgaria) | 769aaa1d-71eb-415f-9a8a-7e1ed4160c57 |
SCIP notification number (Czech Republic) | 13cb88b8-e520-479f-9229-2b13447bfe2c | SCIP notification number (Denmark) | b96478a9-ff5f-46a3-b508-f96bbb3e40e3 |
SCIP notification number (Finland) | 8915f01a-858d-4ce2-a254-e97f966b2643 | SCIP notification number (France) | 6cf0dce7-0c60-4a7c-a4b6-f52266f315dd |
SCIP notification number (Germany) | e3d797b1-bf74-412e-8eb2-67c09e96cf95 | SCIP notification number (Hungary) | ac878ccf-94df-407f-83ac-f0b1549039f1 |
SCIP notification number (Italy) | bd7dfc17-e6fe-4c3d-831b-6055e6553a78 | SCIP notification number (Netherlands) | 87e9cb0d-06a0-4aee-a0e6-fdbbd632c7dd |
SCIP notification number (Poland) | 20253e97-b914-4796-896d-7e4d854572e7 | SCIP notification number (Romania) | d3a5182e-25b9-4d20-925f-b82139784445 |
SCIP notification number (Sweden) | c059a02e-d6f9-4b8d-b6bd-b86cbc66398f | Nominal input voltage [V] | DC?24?V |
Nominal output voltage [V] | DC?24?V | Nominal output current I<sub>o nom</sub> | 40?A |
Amp hours | 12Ah | Charging current | ≤?3?A |
End-of-charge voltage | DC 27 V (25 °C) | Internal fuse | 2 x T 25 A |
Specifications may be subject to change without notice
