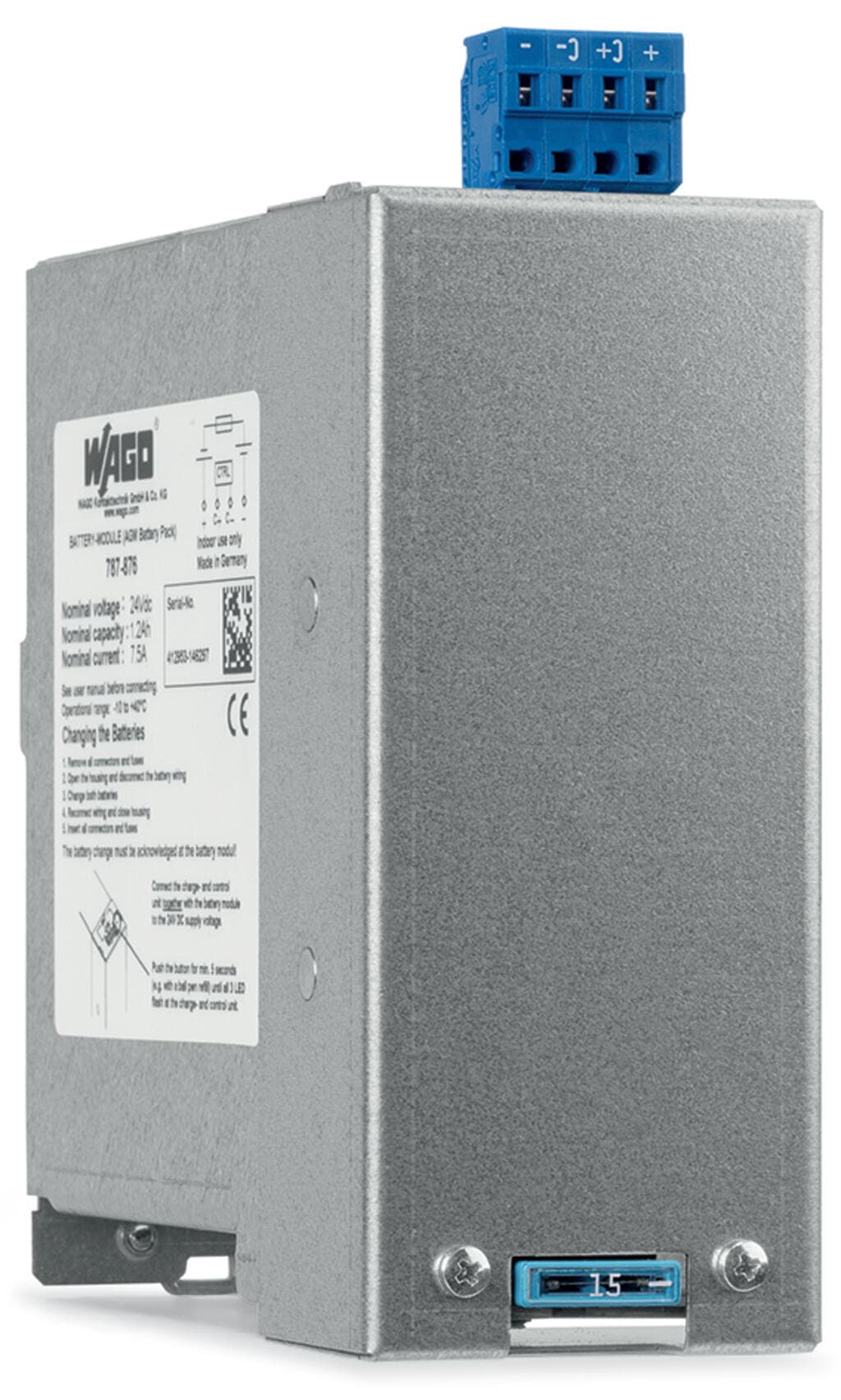

Product Model
787-876
Selling Points
- 1High reliability and durability for long-lasting operations.
- 2Efficient performance with reduced power consumption.
- 3Advanced connectivity options for seamless integration.
- 4Easy installation and configuration with intuitive software.
- 5Compatible with various industrial automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller. | Protection class | III |
Protection type | IP20; per EN 60529 | Pollution degree | 2 |
Parallel operation | Yes | Series operation | No |
MTBF | > 500,000 h (per IEC 61709) | Service life (typ.) | 5?/ 4?/ 2?a (20?/ 30?/ 40?°C) |
Connection type 1 | Input/Output/Battery control | Connection technology | CAGE CLAMP? |
WAGO connector | WAGO 231 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Cable length (max.) | 3?m (Input, Output, Battery Control) | Width | 55?mm?/ 2.165?inches |
Height | 153?mm?/ 6.024?inches | Depth from upper-edge of DIN-rail | 126.6?mm?/ 4.984?inches |
Note (dimensions) | Height with connector | Mounting type | DIN-35 rail |
Weight | 1980g | Ambient temperature (operation) | -10 … +40 °C |
Ambient temperature (storage) | -20 … +40 °C | Relative humidity | 5 … 80?% (no condensation permissible) |
Conformity marking | CE | Standards/specifications | VdS-tested battery |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-05-04-03 |
eCl@ss 9.0 | 27-05-04-03 | ETIM 9.0 | EC000357 |
ETIM 8.0 | EC000357 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821298243 |
Customs tariff number | 8507208091 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 35ab2e59-bacb-4392-9887-576ff84b6de5 | SCIP notification number (Belgium) | e4c5e777-34dc-4ce1-8ff5-b0c8c6a29bca |
SCIP notification number (Bulgaria) | e7bd2258-d862-47b1-b90f-94af976b385a | SCIP notification number (Czech Republic) | 1cadbc50-db83-42ed-9bae-9cafc51d73f8 |
SCIP notification number (Denmark) | f08b16c7-5e67-4830-bdc2-847555db677b | SCIP notification number (Finland) | 4f9f0273-73f8-4987-9908-fab577177f3f |
SCIP notification number (France) | 120ad21d-5464-4f71-8b04-64430d335c9c | SCIP notification number (Germany) | 72bdfcdf-039a-4903-a04f-647d7a66dbd3 |
SCIP notification number (Hungary) | 3c7304ff-e68d-4940-a26c-031c28a3a9ba | SCIP notification number (Italy) | 65f71f76-8ea5-46d5-9032-31844fa05d8f |
SCIP notification number (Netherlands) | 27b8a7a0-71f4-4953-a258-df1fb592c439 | SCIP notification number (Poland) | a39e1dfa-494b-46e3-ab0c-a5f0e54f8fa2 |
SCIP notification number (Romania) | ebab566d-d028-4149-83d8-c24378ed2007 | SCIP notification number (Sweden) | 31dbd2a0-4e36-455c-98b1-4241963e568c |
Nominal input voltage [V] | DC?24?V | Nominal output voltage [V] | DC?24?V |
Nominal output current I<sub>o nom</sub> | 7.5?A | Amp hours | 1.2Ah |
Charging current | ≤?0.3?A | End-of-charge voltage | DC 27 V (25 °C) |
Internal fuse | T 15 A |
Specifications may be subject to change without notice
