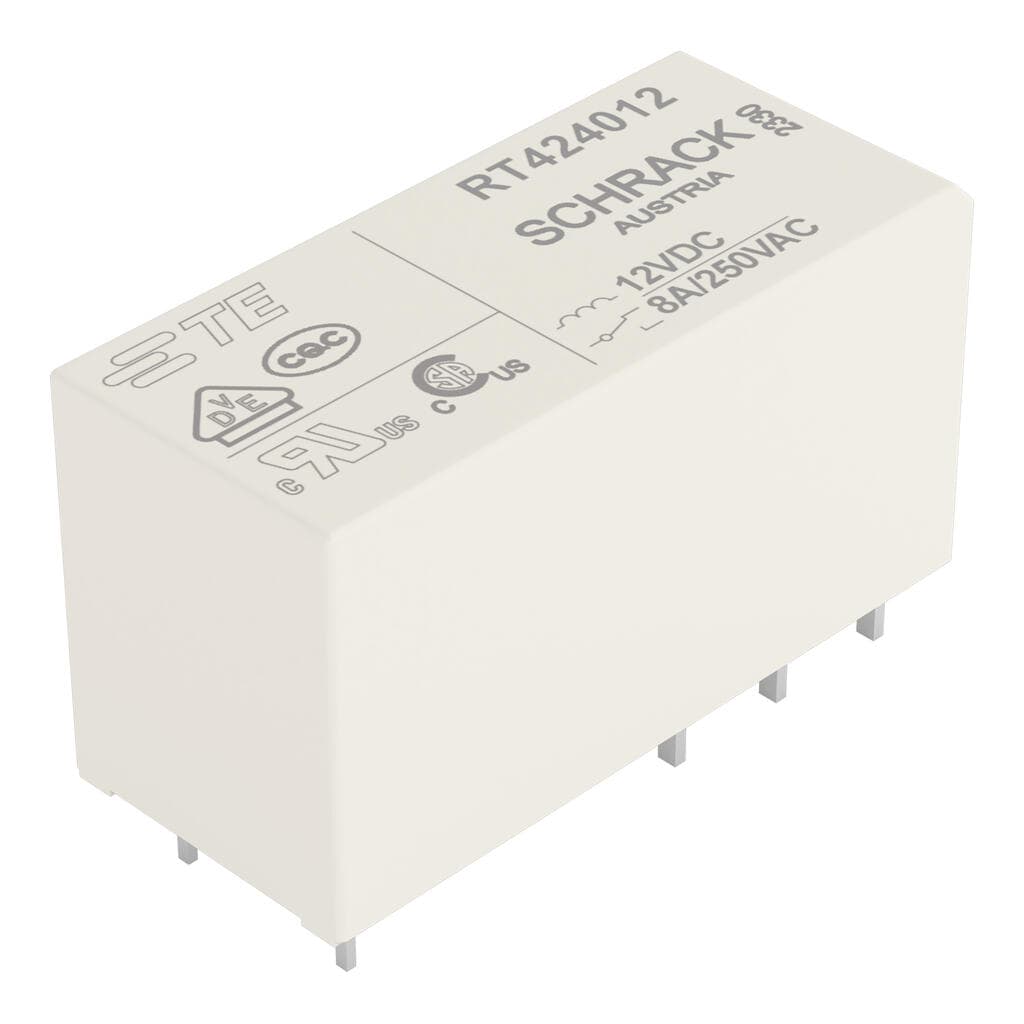

Product Model
788-152
Selling Points
- 1Compact design with dimensions of 29 mm x 12.7 mm x 15 mm.
- 2Reliable with a mechanical life of 30 x 10^6 switching operations.
- 3Easy to mount with pluggable module type.
- 4Compliant with EN 61810-1 standards and RoHS compliant.
- 5Features 2 changeover contacts (DPDT) made of Silver-Nickel (AgNi 90/10).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 2.5?kVrms | Protection type | IP40 |
Width | 12.7?mm?/ 0.5?inches | Height from the surface | 15.7?mm?/ 0.618?inches |
Depth | 29?mm?/ 1.142?inches | Mounting type | Pluggable module |
Note (material data) | Information on material specifications can be found here | Weight | 13g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +85 °C | Ambient temperature (storage) | -40 … +85 °C |
Standards/specifications | EN 61810-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
eCl@ss 10.0 | 27-37-16-01 | eCl@ss 9.0 | 27-37-16-01 |
ETIM 9.0 | EC001437 | ETIM 8.0 | EC001437 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
Packaging type | box | Country of origin | AT |
GTIN | 4050821867753 | Customs tariff number | 8536490075 |
CAS-No. | 80-05-7 | REACH Candidate List Substance | 4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,No Exemption | SCIP notification number (Austria) | 1b402d71-3fcc-4566-a32c-a615c7ff448a |
SCIP notification number (Belgium) | a00cd61b-b671-4174-8cbd-eabe2c1ed257 | SCIP notification number (Bulgaria) | 71b76f83-bfdf-41ca-9f1f-b49485ec2766 |
SCIP notification number (Czech Republic) | e8648a74-afca-4da2-8df4-8bf7e882b81e | SCIP notification number (Denmark) | aa41aed5-8002-472c-ad32-c612dc1526db |
SCIP notification number (Finland) | 67ff4ae8-8d85-4c7c-9dca-0ffb98e53d75 | SCIP notification number (France) | c00b1740-9d2f-4533-8179-00a2186a4c0e |
SCIP notification number (Germany) | 149a7c9f-4ea1-44d3-ade0-bf32a4318c63 | SCIP notification number (Hungary) | ba8310d2-51b4-406a-a78c-5f659532769e |
SCIP notification number (Italy) | 23a8662f-adb0-4ac0-8844-ae687e74c6b6 | SCIP notification number (Netherlands) | 09d3c4ee-7dd9-45cc-9ebe-9306b9e149a0 |
SCIP notification number (Poland) | 6d916728-297c-45fc-909e-1eb169830e1c | SCIP notification number (Romania) | ced51f1c-6cba-47dc-8140-3889b8ad9ee5 |
SCIP notification number (Sweden) | ab60f1c5-51a7-4ff2-ba32-5c5226476451 | Nominal input voltage U<sub>N</sub> | DC?12?V |
Nominal input current at U<sub>N</sub> | 34?mA | Number of changeover contacts | 2 |
Contact material (relay) | AgNi 90/10 | Limiting continuous current | 8?A |
Inrush current (resistive) max. | (AC) 15?A?/ 4?s | Switching Voltage, Max. | AC?250?V |
Switching power (resistive) max. | AC?2000?VA;?DC (see load limit curve) | Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V |
Recommended minimum load | 12?V?/ 10?mA | Pull-in time (typ.) | 8ms |
Drop-out time (typ.) | 6ms | Bounce time (typ.) | 10ms |
Electrical life (NO; resistive load; 23?°C) | 10?x 103 switching operations | Mechanical life | 30?x 10? switching operations |
Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Specifications may be subject to change without notice
