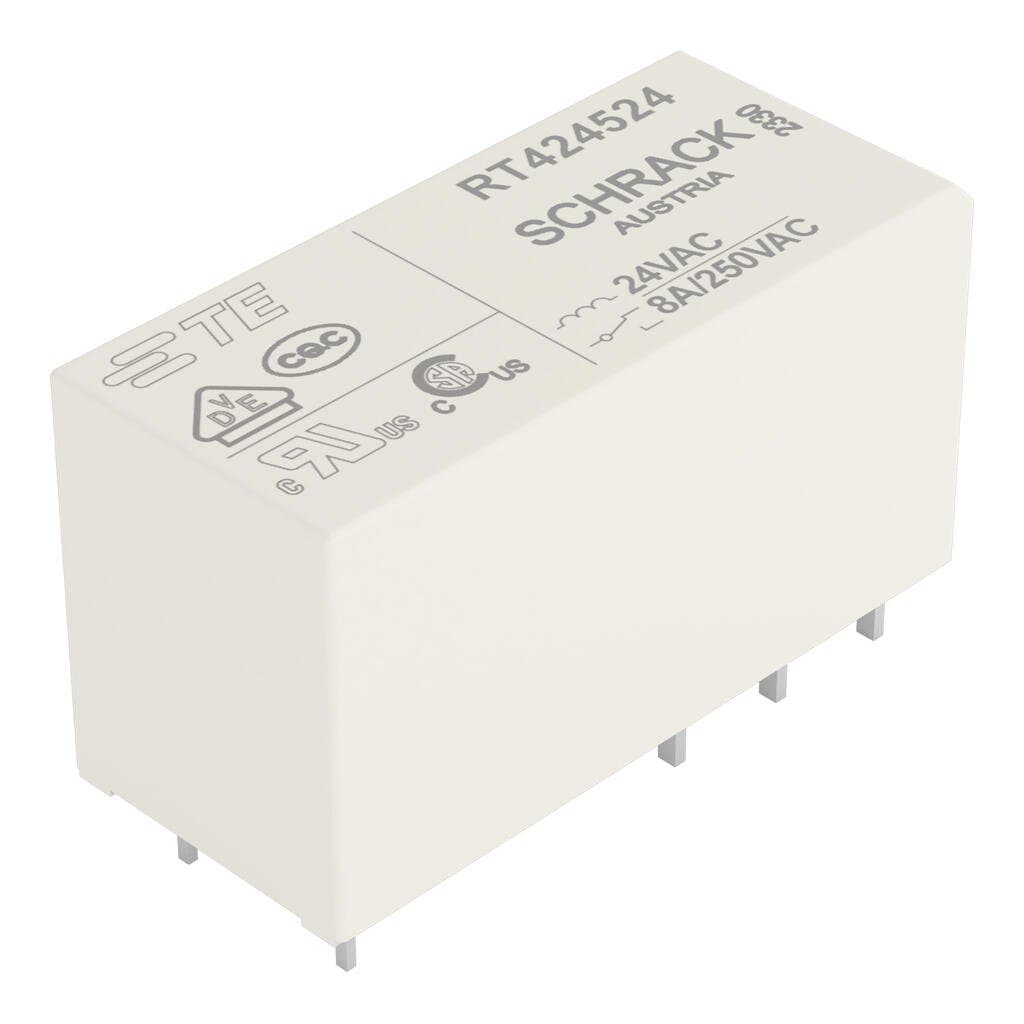

Product Model
788-172
Selling Points
- 1Compact design with a module height of 15 mm.
- 2Reliable operation with 2 changeover contacts (2u).
- 3Suitable for 24 VAC input voltage.
- 4High switching power capacity of 2 x 2 kVA (AC).
- 5Long mechanical life with >30 million switching operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
Dielectric strength (load/load circuit) (AC, 1?min) | 2.5?kVrms | Protection type | IP40 |
Width | 12.7?mm?/ 0.5?inches | Height from the surface | 15.7?mm?/ 0.618?inches |
Depth | 29?mm?/ 1.142?inches | Mounting type | Pluggable module |
Note (material data) | Information on material specifications can be found here | Fire load | 0.225MJ |
Weight | 12.7g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature (storage) | -40 … +85 °C | Standards/specifications | EN 61810-1 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454620967 |
Customs tariff number | 8536490075 | CAS-No. | 80-05-7 |
REACH Candidate List Substance | 4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,No Exemption |
SCIP notification number (Austria) | 975c0cf2-079a-4342-a3ef-1b2eb272dde3 | SCIP notification number (Belgium) | b14e9bc3-5a41-4e52-9bf4-a33b132ec211 |
SCIP notification number (Bulgaria) | f26073b9-f63f-40b5-bbf0-e33fc688710a | SCIP notification number (Czech Republic) | d6b95ba2-c642-4bee-96a5-a275c8e65233 |
SCIP notification number (Denmark) | 111c3d8f-4bc4-46fc-b475-d76f3e53411f | SCIP notification number (Finland) | c398ebae-45eb-4cd1-977c-26da016f68d4 |
SCIP notification number (France) | c09c137f-2abc-4a3e-a09d-f9486a924bf9 | SCIP notification number (Germany) | d538de56-99db-4a81-9552-b215a6d572db |
SCIP notification number (Hungary) | 7a5b4d6f-f22d-4f44-91f7-4c6fd3c06467 | SCIP notification number (Italy) | fd35d81f-60fc-42f0-81b0-5018d515ce74 |
SCIP notification number (Netherlands) | c23e8fa3-836d-4548-8ad0-6934edffa6aa | SCIP notification number (Poland) | 6e0fdd45-3df3-4763-ac14-f7d0a2ae805c |
SCIP notification number (Romania) | bb5e7dec-aaf1-4d5a-a261-d69895f92c88 | SCIP notification number (Sweden) | 5bf49490-1ea1-438d-841c-23dd8cc95b97 |
Nominal input voltage U<sub>N</sub> | AC?24?V | Nominal input current at U<sub>N</sub> | 7?mA |
Number of changeover contacts | 2 | Contact material (relay) | AgNi 90/10 |
Limiting continuous current | 8?A | Inrush current (resistive) max. | (AC) 15?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?2000?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 12?V?/ 10?mA |
Pull-in time (typ.) | 8ms | Drop-out time (typ.) | 6ms |
Bounce time (typ.) | 10ms | Electrical life (NO; resistive load; 23?°C) | 10?x 103 switching operations |
Mechanical life | 30?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Specifications may be subject to change without notice
