Product Model

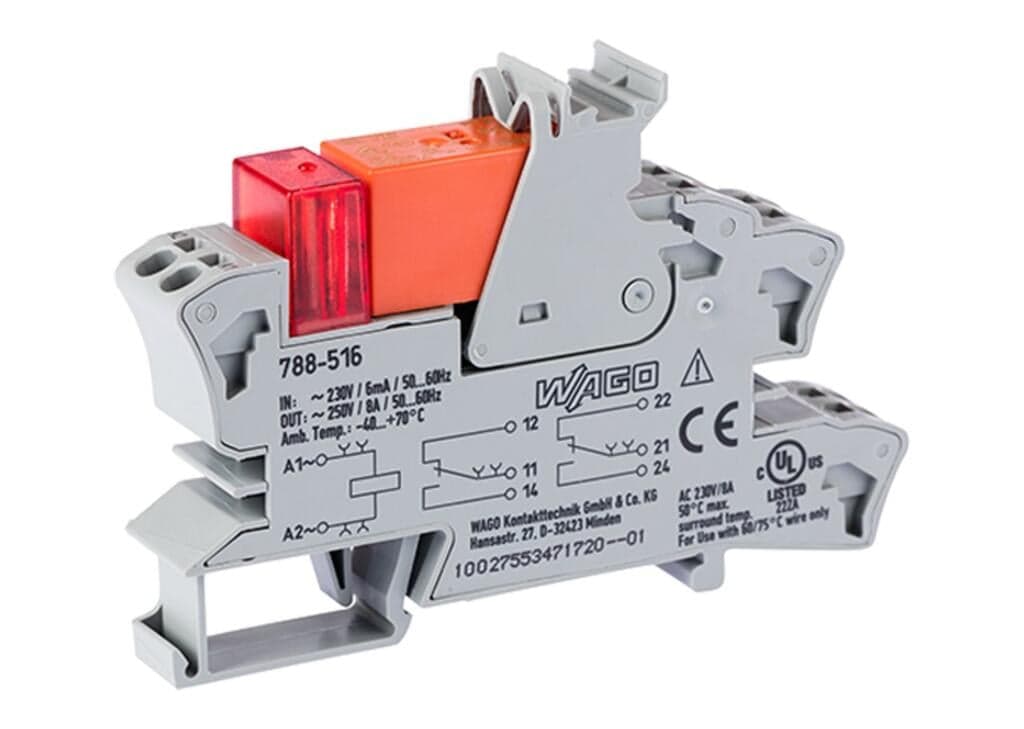

788-516
Selling Points
- 1Handles up to 8A continuous current with two changeover contacts.
- 2Operates at 250V AC, suitable for high-voltage switching tasks.
- 3Features Wago's Push-in CAGE CLAMP technology for quick and secure wire connections.
- 4Includes a red status indicator for easy system monitoring and troubleshooting.
- 5Constructed with AgNi 90/10 contact material for long-lasting performance and reliable conductivity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (e.g., 209-191) must be used for voltages greater than 250 V between adjacent relay modules and for compliance with the reinforced insulation requirements. | Note | Reinforced insulation between coil and contacts |
Rated voltage | 250V | Rated surge voltage | 4kV |
Pollution degree | 3 | Dielectric strength (control/load circuit) (AC, 1?min) | 5?kVrms |
Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Dielectric strength (load/load circuit) (AC, 1?min) | 2.5?kVrms |
Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 15?mm?/ 0.591?inches |
Height | 86?mm?/ 3.386?inches | Depth from upper-edge of DIN-rail | 54?mm?/ 2.126?inches |
Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
Color | gray | Fire load | 0.846MJ |
Weight | 45.7g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +50 °C | Ambient temperature (storage) | -40 … +70 °C |
Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
Standards/specifications | EN 61010-2-201 | WAGO Basic Relay | 788-180 |
Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 20?(1)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4055143192378 |
Customs tariff number | 8536490080 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 7(a) | SCIP notification number (Austria) | b0e534fc-6e2a-476f-af3a-adc4f5ad784e |
SCIP notification number (Belgium) | f5fb74a2-c3b0-40c0-98da-03976d135990 | SCIP notification number (Bulgaria) | 19a69d1f-1eac-4af1-a82f-60b7cd39e307 |
SCIP notification number (Czech Republic) | e9ac98ec-36be-424b-bf0a-c385a9fb437c | SCIP notification number (Denmark) | 97398917-a0b9-438b-a009-ec705113136d |
SCIP notification number (Finland) | 6d5f6774-30bf-43ed-a808-bbc48db312c5 | SCIP notification number (France) | 33f68cdd-e88a-4b75-9ddb-b9542e5e979b |
SCIP notification number (Germany) | e244a908-f765-40c7-b634-d9738f4d9568 | SCIP notification number (Hungary) | 62cbd900-173a-420f-aa49-b0385499542a |
SCIP notification number (Italy) | 30a343f2-20a6-4847-a57e-6c4f35c2ab5b | SCIP notification number (Netherlands) | a241131d-fb8e-47da-99b3-176d01cbd59d |
SCIP notification number (Poland) | 18110e8e-0396-4ae3-9bcd-6399915f98d2 | SCIP notification number (Romania) | 4c1827a3-594e-47e5-93c0-87c8cd85c0df |
SCIP notification number (Sweden) | a63b4428-d34d-484d-b9de-d06779aecb17 | Nominal input voltage U<sub>N</sub> | AC?230?V |
Input voltage range | ±10?% | Nominal input current at U<sub>N</sub> | 4?mA |
Number of changeover contacts | 2 | Contact material (relay) | AgNi 90/10 |
Limiting continuous current | 8?A | Inrush current (resistive) max. | (AC) 15?A?/ 4?s |
Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?2000?VA;?DC (see load limit curve) |
Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 12?V?/ 10?mA |
Pull-in time (typ.) | 10ms | Drop-out time (typ.) | 35ms |
Bounce time (typ.) | 10ms | Electrical life (NO; resistive load; 23?°C) | 10?x 103 switching operations |
Mechanical life | 30?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 1200?min-1 |
Status indicator | Red LED |
Specifications may be subject to change without notice
